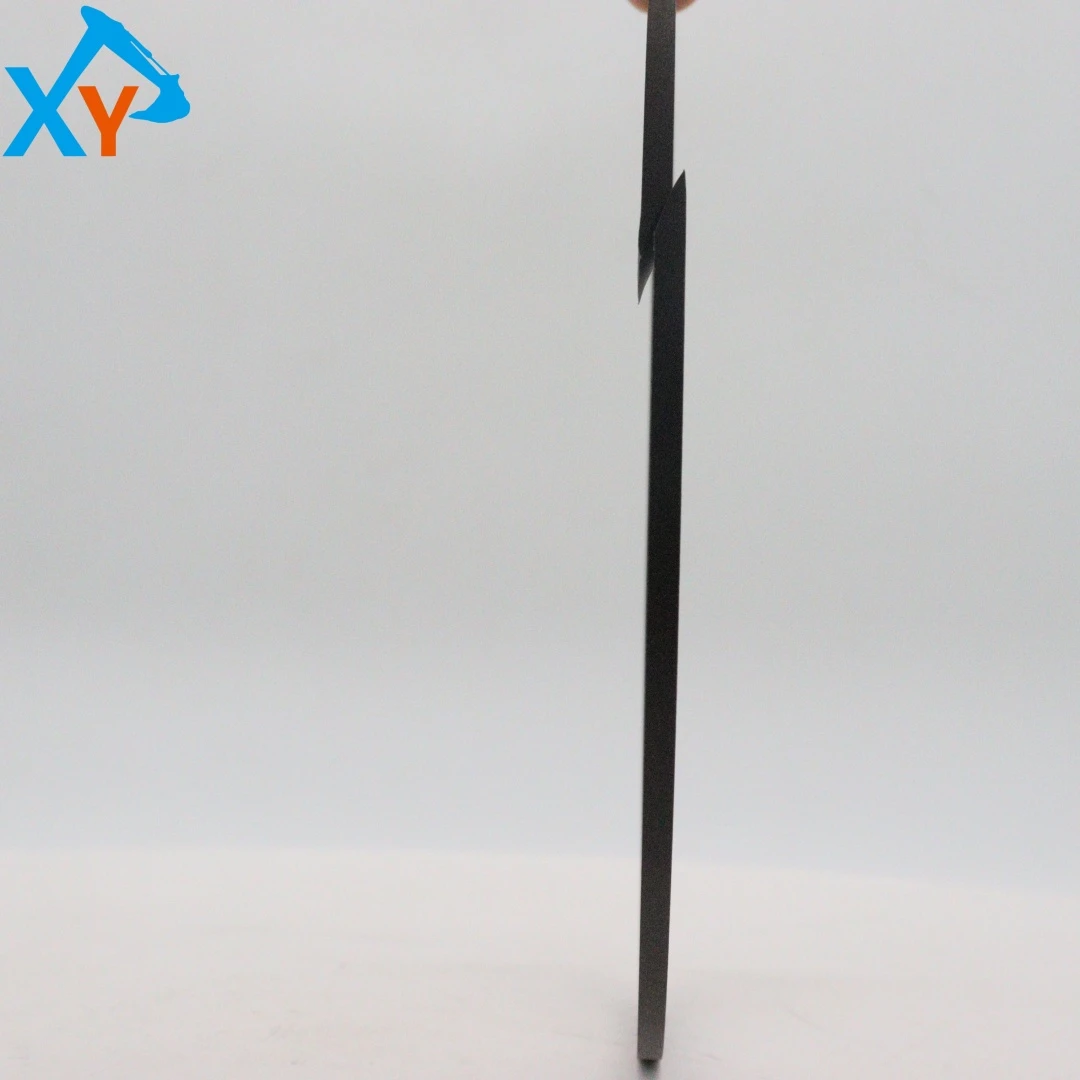

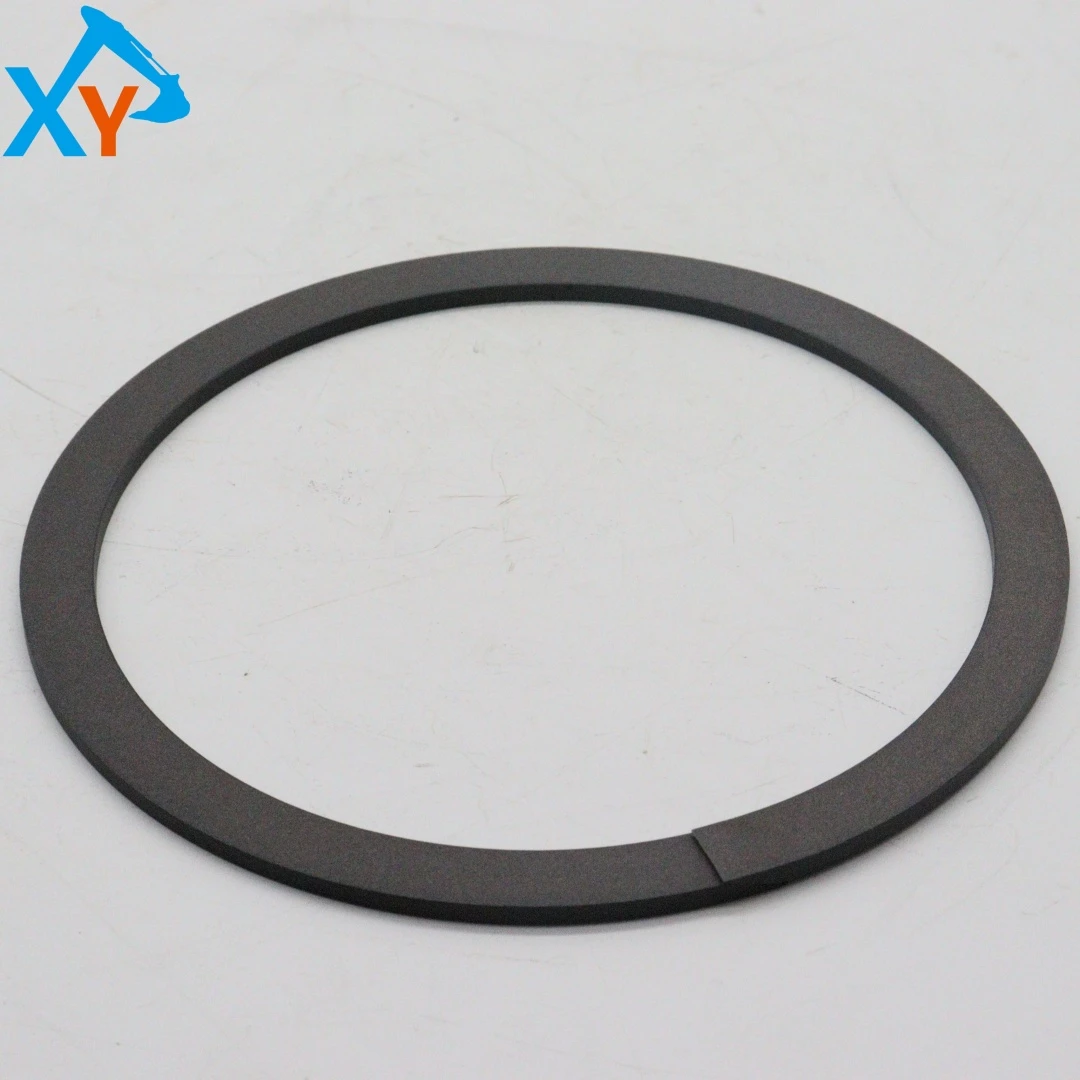

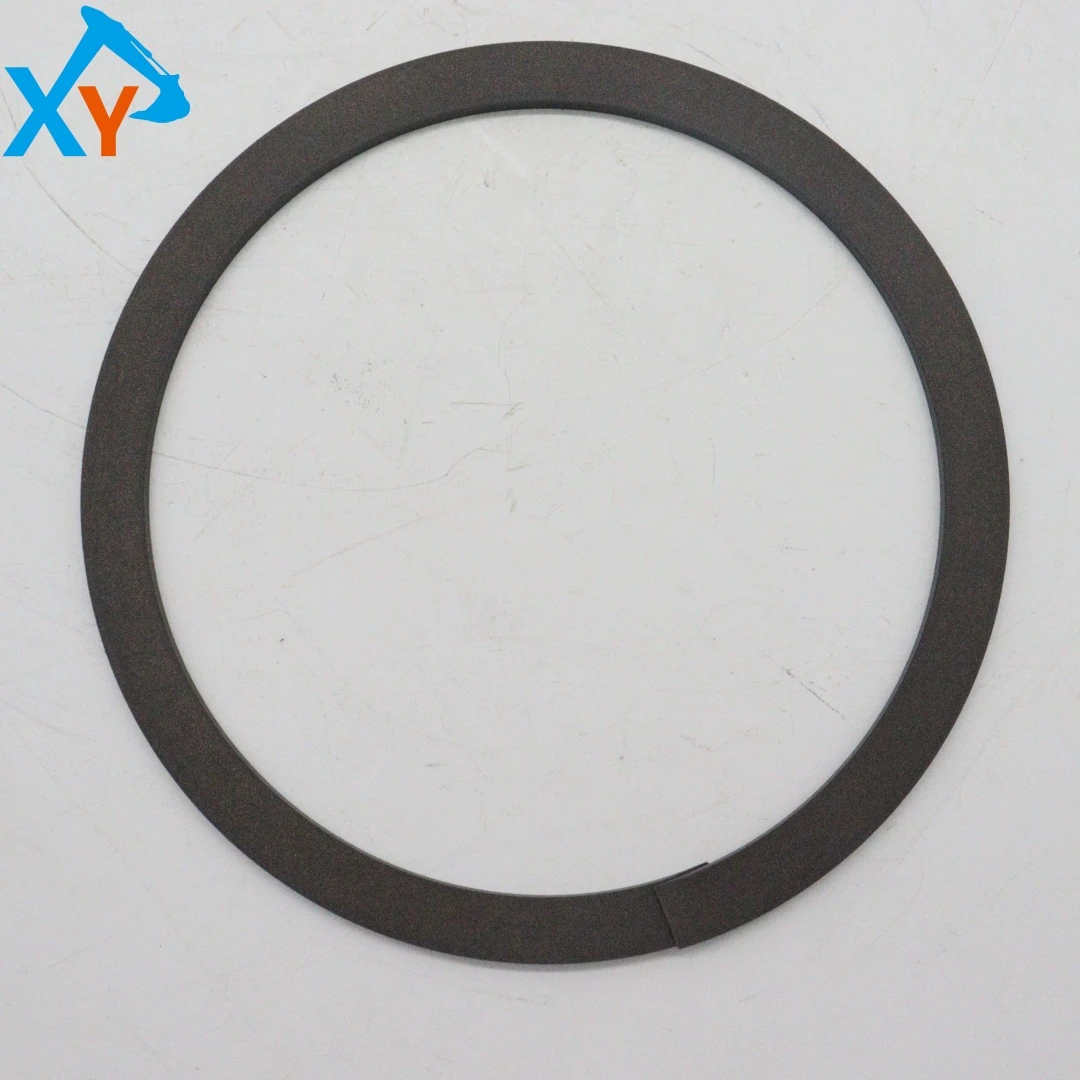

6547307930 Original Loader Back-up Ring for Hitachi ZW550

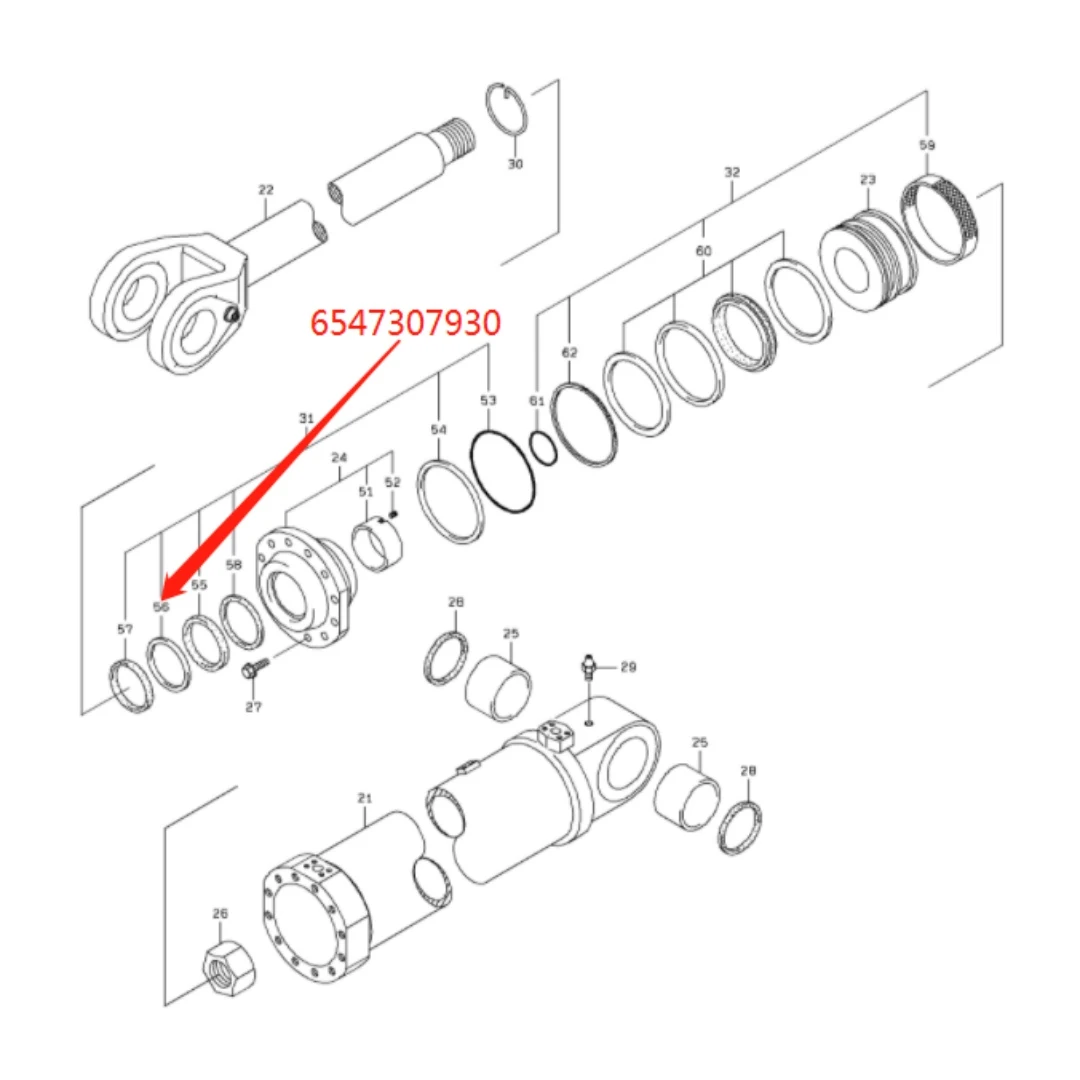

Part number 6547307930 is a dedicated part number for the spare ring of Hitachi's original loader. Backup Ring is a key auxiliary component in hydraulic sealing systems, usually paired with O-rings or combination seals, installed on one or both sides of the seal. Its main function is to prevent the main seal (such as O-ring) from being squeezed, extruded, or bitten by gaps under high pressure conditions, thereby greatly improving the reliability and service life of the sealing system. According to the general adaptation rules of Hitachi's loader accessory system, this spare ring is likely to be widely compatible with the hydraulic cylinders, piston rods, or valve block sealing parts of multiple wheel loaders in Hitachi ZW series, such as ZW140, ZW180, ZW220, ZW250, ZW370 and other common models.

This backup ring is a critical protective component in the hydraulic sealing system. Its core function is to provide rigid support for the main seal (usually O-ring) in dynamic sealing situations with high pressure (usually up to 35MPa or higher), high-frequency pulses, or gap changes, preventing the sealing material from being squeezed into the fitting gap between parts under pressure, thereby avoiding seal failure, leakage, and early wear. Its cross-sectional shape is usually rectangular or stepped, and the tolerances for inner diameter, outer diameter, and thickness are strictly controlled to ensure a perfect fit with the sealing groove. It can withstand working environments with hydraulic oil, lubricating oil, and a certain temperature range (usually -30 ℃ to+120 ℃), and is an important barrier to ensure long-term leak free operation of hydraulic cylinders, motors, and valve groups.

The maintenance core of this backup ring lies in regular inspection, preventive replacement, and standardized installation. Usually replaced in pairs with the main seal (O-ring). Even if the appearance of the spare ring is intact, if the main seal has reached the replacement cycle, it is recommended to replace it simultaneously to ensure the overall performance of the sealing pair. Hydraulic oil and filter elements must be replaced strictly according to the maintenance cycle, and oil contamination level testing must be conducted regularly. If sealing failure occurs repeatedly at the same position, it is necessary to check whether the sealing groove size is worn out beyond the standard or whether the system pressure is abnormal. After replacement, the hydraulic system needs to be vented and pressure tested to ensure no leaks.
