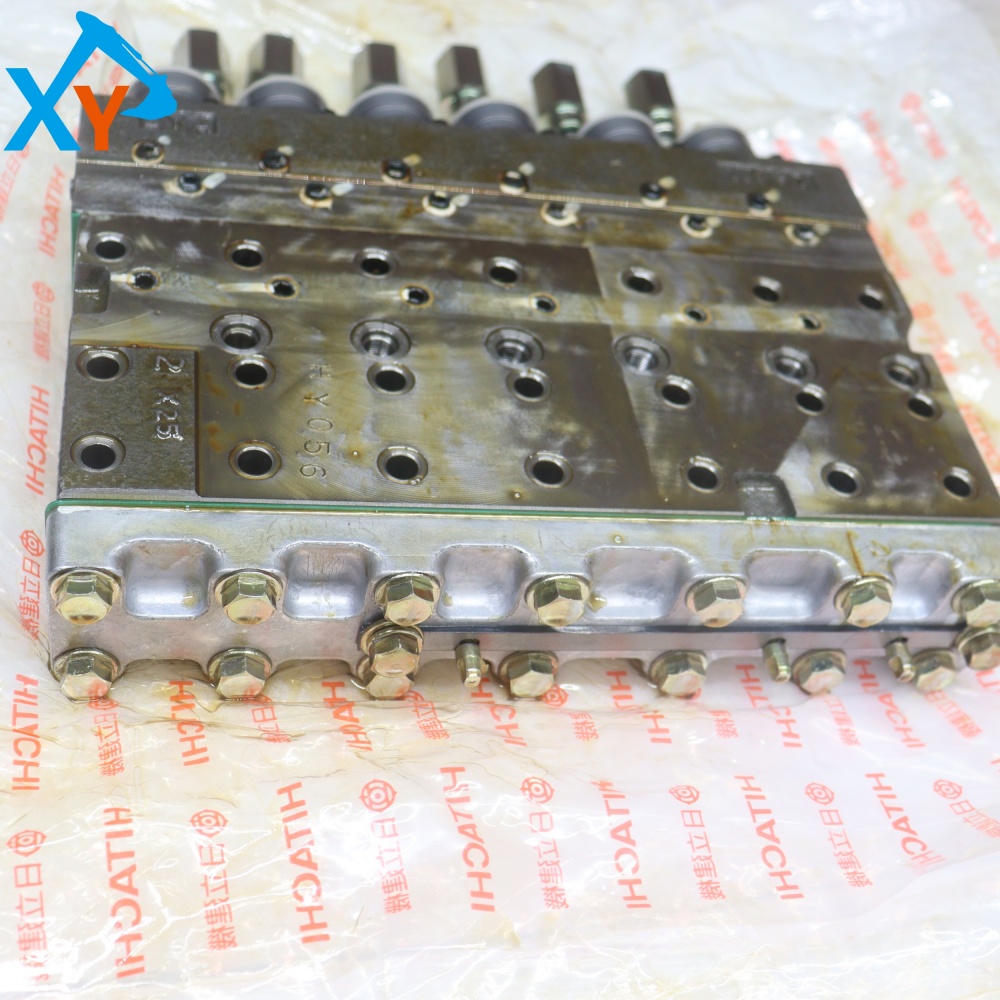

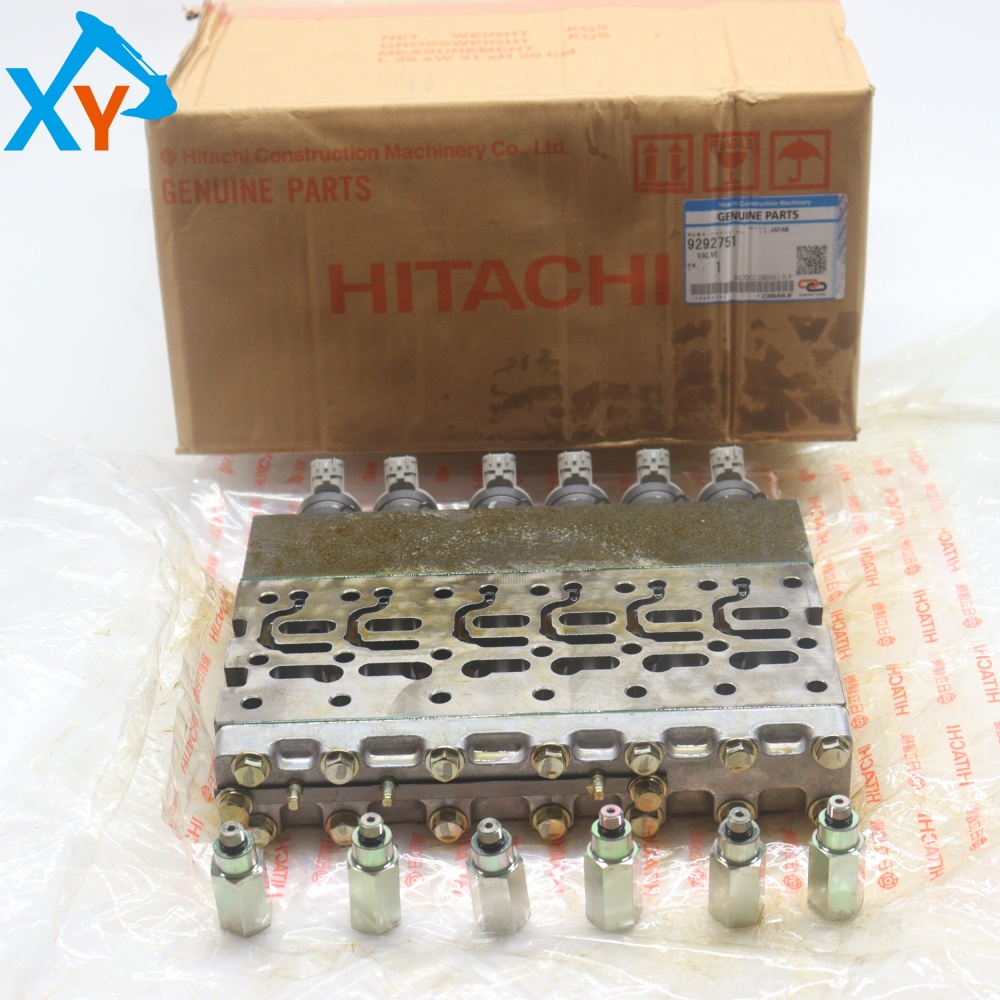

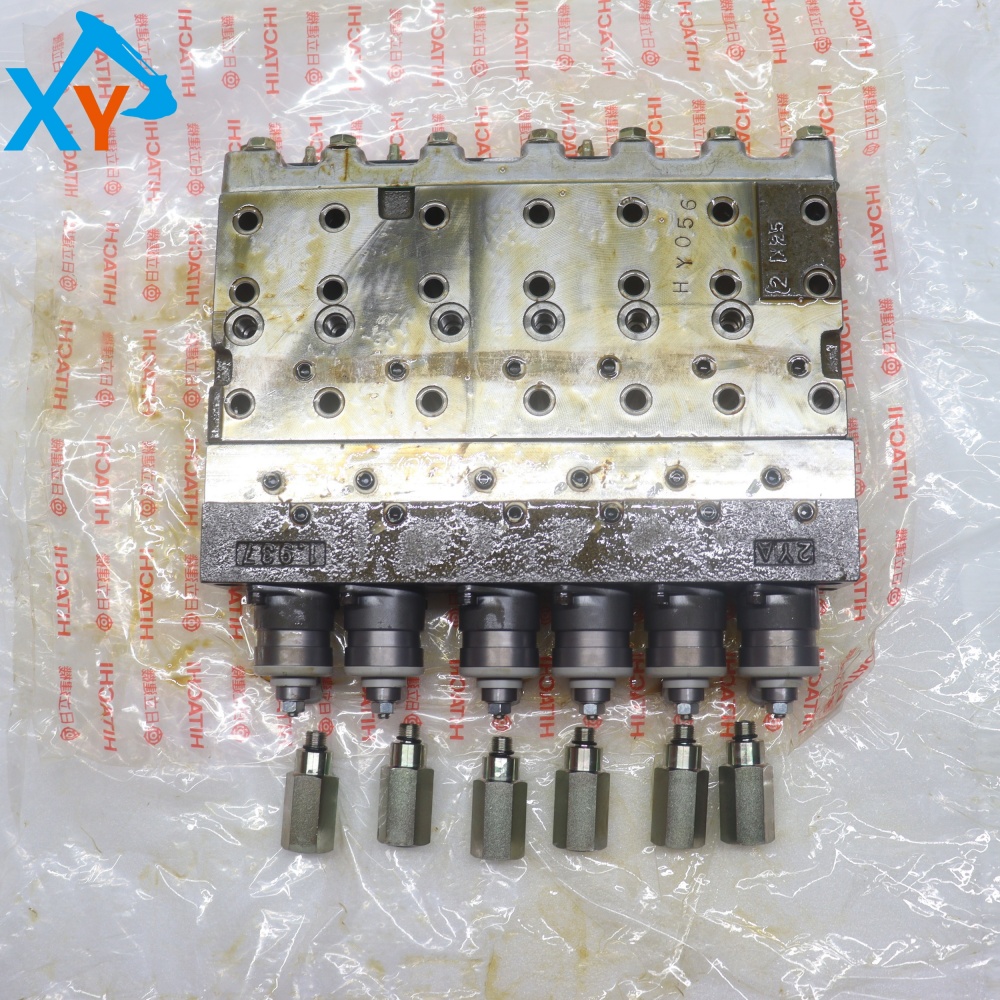

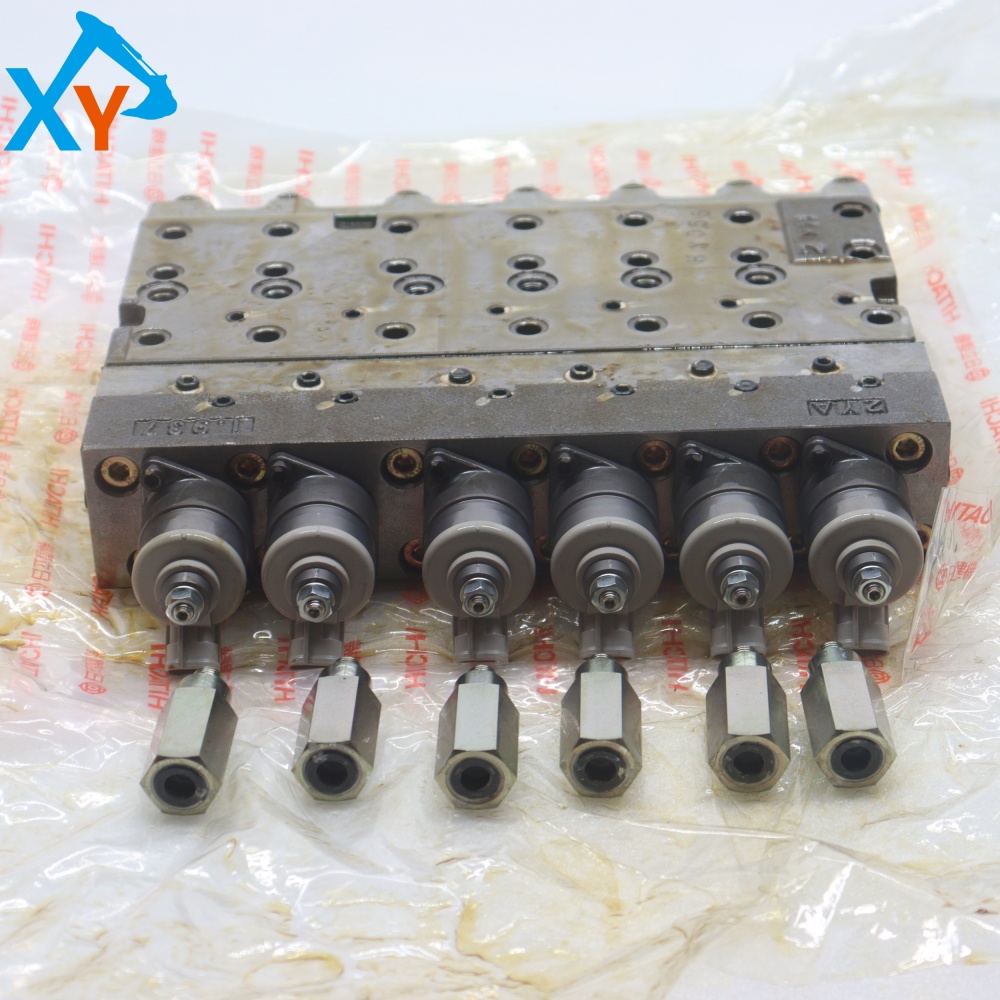

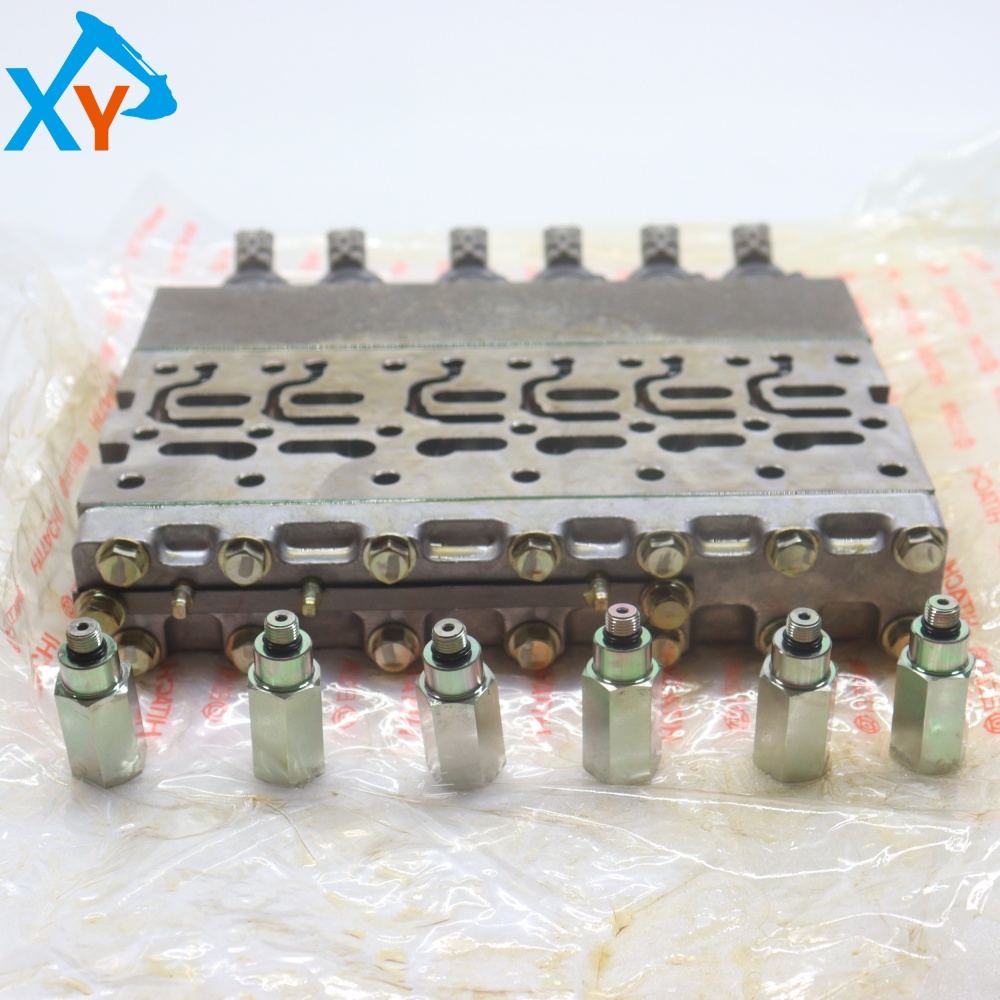

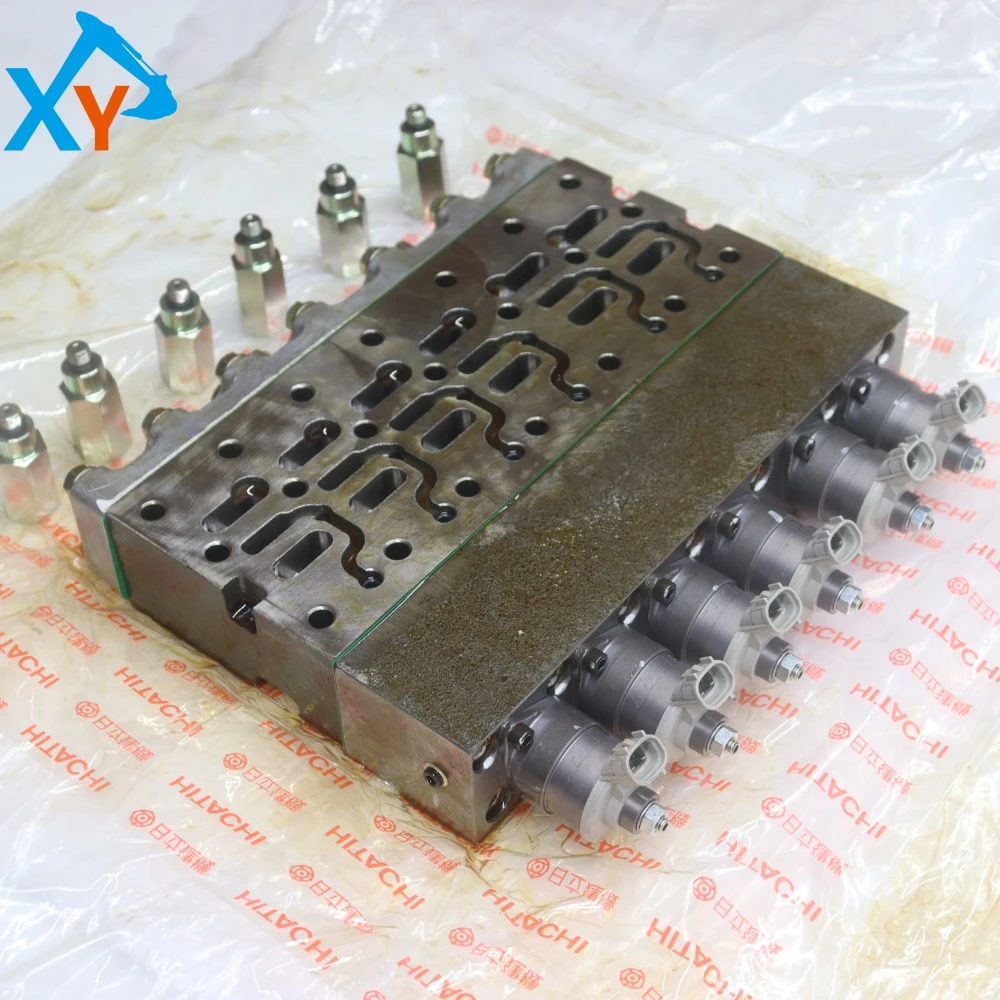

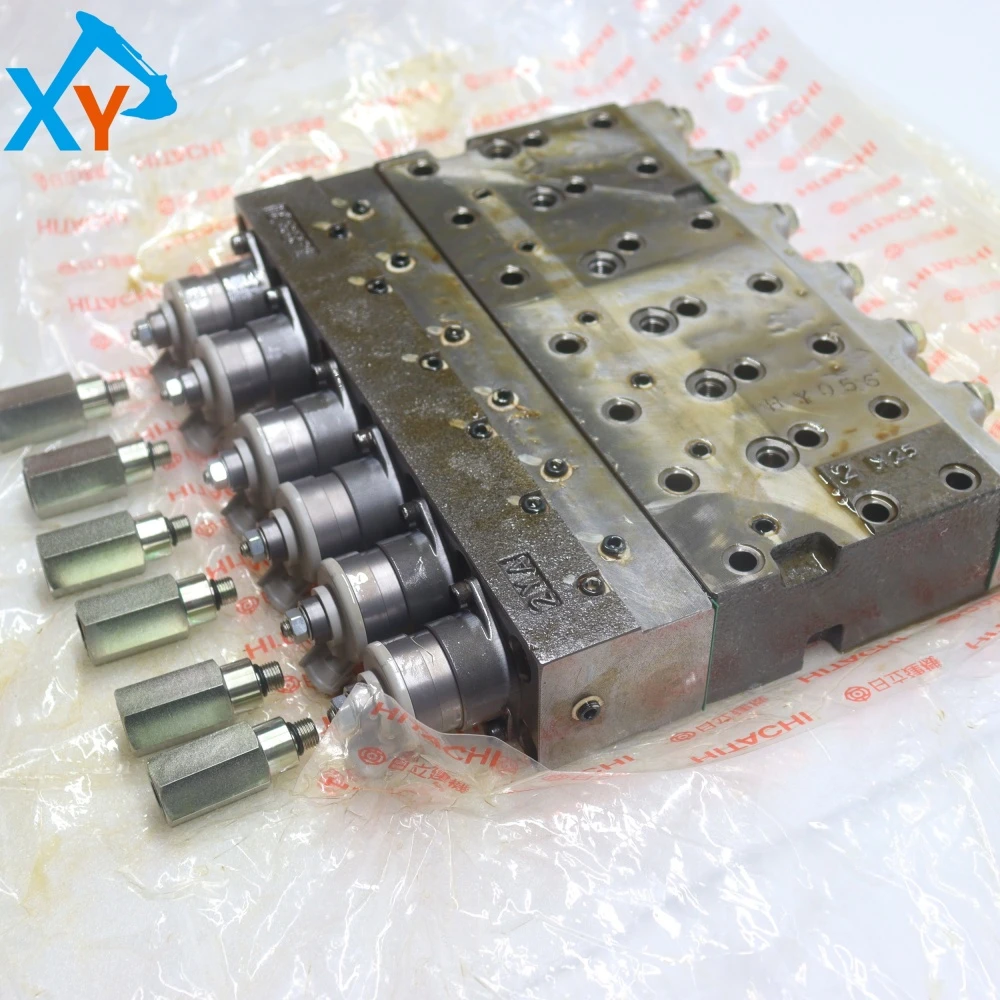

9292751 Hitachi Loader Electromagnetic Valve Group for ZW220

9292751 is a dedicated part number for Hitachi's original loader solenoid valve assembly, widely compatible with multiple Hitachi wheel loaders. Its main compatible models include Hitachi ZW series (such as ZW140, ZW180, ZW220, ZW250, ZW310, ZW330, ZW370-G, ZW550-G, etc.) and LX series (such as LX300, LX450, etc.) loaders. This part number is the standard code for the original electromagnetic valve assembly. Users need to accurately check the specific model, year of manufacture, and hydraulic system configuration of the equipment when purchasing to ensure complete matching.


The solenoid valve group is the core electro-hydraulic conversion component of the loader hydraulic control system, usually consisting of multiple solenoid valves (such as proportional solenoid valves, directional valves, etc.) integrated into a valve block or assembly. Its basic structure includes iron core, coil, spring, valve core, push rod, and valve body. By receiving electrical signals from the controller (ECU), it accurately controls the on/off, flow direction, and flow rate of the pilot oil circuit or main oil circuit, thereby achieving precise control of the working device (bucket, boom) and walking speed. The valve body is made of high-strength aluminum alloy or cast iron, and the sealing components are oil resistant and high-temperature resistant nitrile rubber or fluororubber. The working voltage is usually 24V DC, which has the characteristics of fast response speed, high control accuracy, anti vibration, dust and water resistance (IP level), ensuring stable operation under harsh working conditions.


Daily inspection should be carried out on the appearance of the valve group for oil stains (to determine if the seal is intact) and whether the wiring harness connectors are firm and free of corrosion. Regularly clean the installation area of dust and debris. It is recommended to use a multimeter to check whether the coil resistance value is within the standard range every 1000 hours of work or every year, and to check whether the valve core action is flexible and free of jamming. The cleanliness of hydraulic oil is crucial, and it is necessary to strictly replace the hydraulic oil and filter element according to the maintenance cycle to prevent impurities from causing wear or blockage of the valve core.
