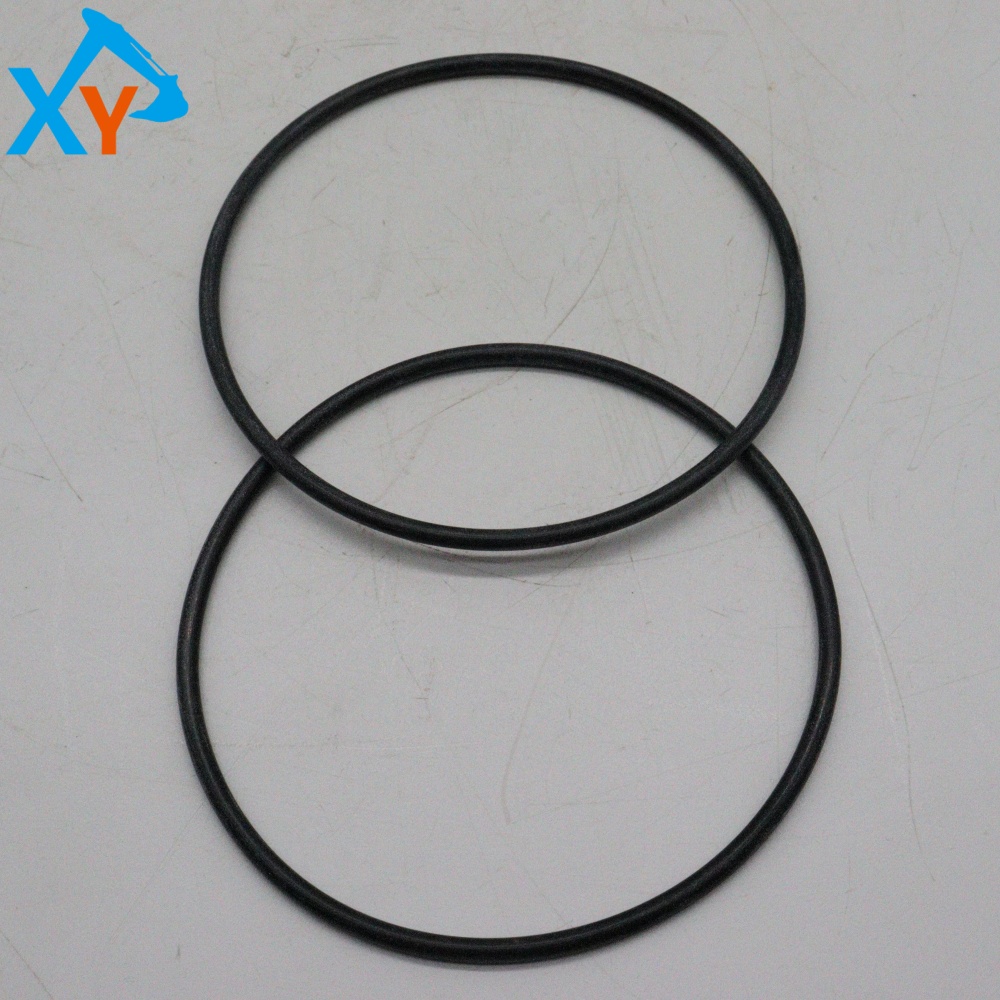

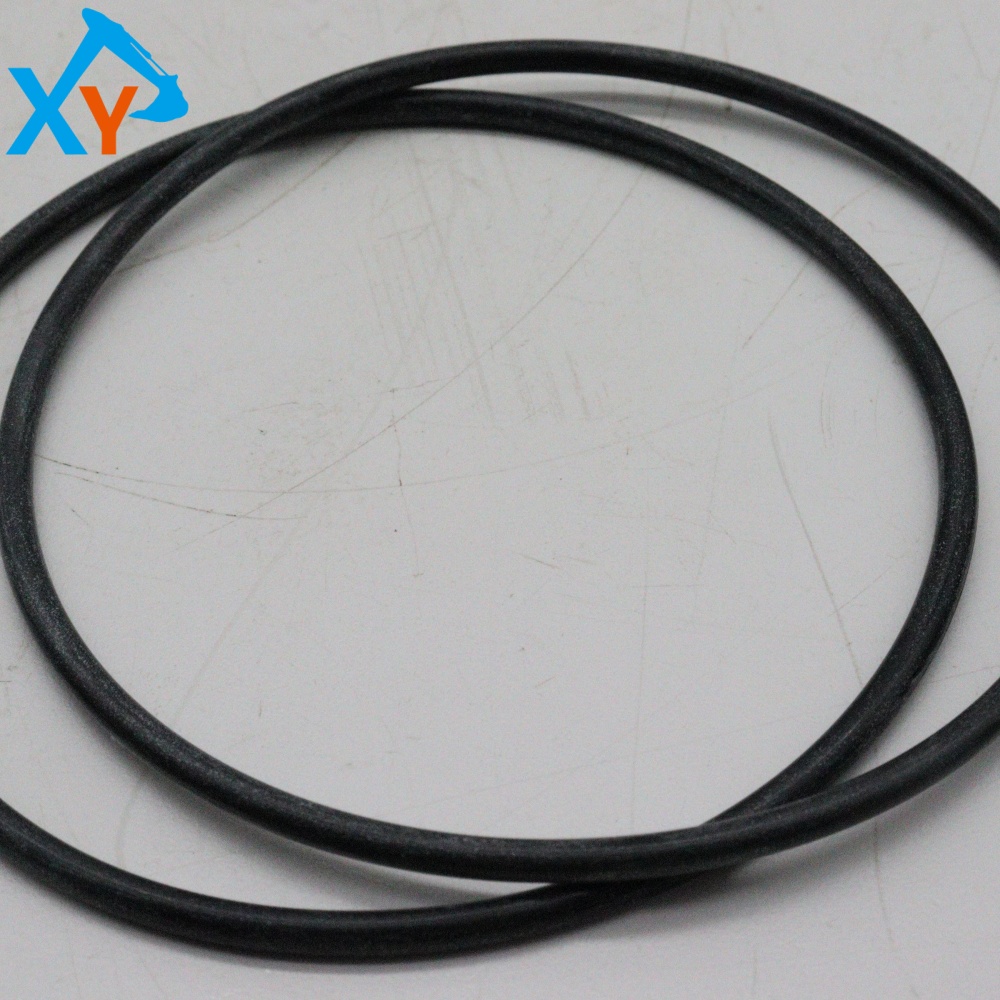

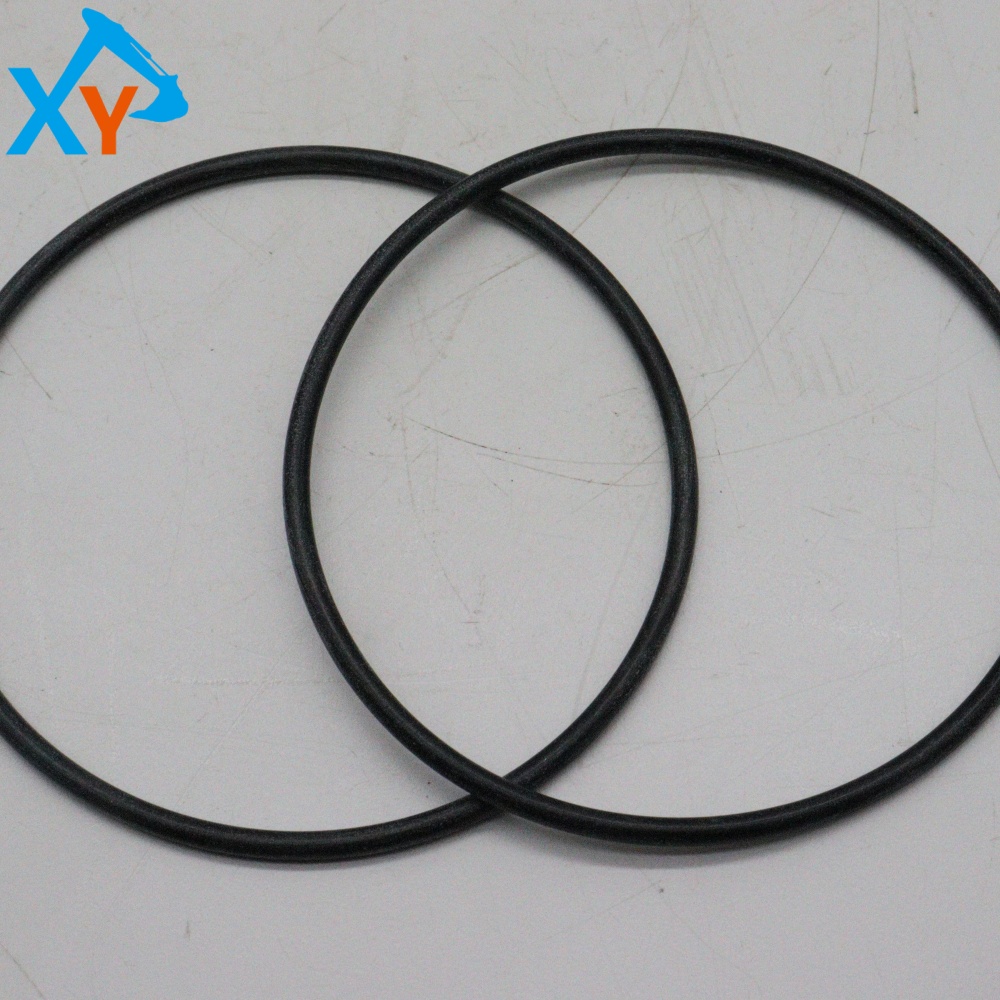

A810085 Original Loader O-ring for Hitachi ZW150-5B

Part number A810085 is the original O-ring provided by Hitachi for the ZW150-5B wheel loader. O-ring is one of the most widely used sealing components in hydraulic and pneumatic transmission systems, used to form static or dynamic seals between two mechanical components, preventing leakage of media such as oil, water, and gas. As an original precision component, its material formula, inner diameter and wire diameter tolerance, hardness, and medium resistance performance are strictly matched with the specific installation position's working conditions (pressure, temperature, medium type).

This product is a rubber sealing ring with a standard circular cross-section, usually made of materials such as nitrile rubber (NBR), fluororubber (FKM), or ethylene propylene diene monomer (EPDM), depending on the medium it comes into contact with (such as hydraulic oil, gear oil, coolant, or air) and the operating temperature range. Its core function is to rely on pre compression elastic deformation during installation to generate contact pressure in the sealing groove, thereby achieving reliable sealing. As an original component, its dimensional accuracy (inner diameter d1 × wire diameter d2), compression set rate, oil resistance, temperature resistance (usually -40 ℃ to 120 ℃), and extrusion resistance all meet Hitachi's strict sealing standards, ensuring long-term sealing integrity under vibration, pressure pulsation, and temperature difference changes.

Inspection and replacement: When there is leakage at the connection, compression permanent deformation, surface hardening, cracking, loss of elasticity, erosion and expansion by the medium, or obvious compression damage (such as gnawing or scratching) is found on the O-ring during regular maintenance and disassembly, it must be replaced. Simple judgment method: visually inspect whether the cross-section of the O-ring is still circular and whether the surface is smooth without cracks; Pinch and press it with your hand to feel if it still has good elasticity. Attention: O-rings are disposable seals and must not be reused; When storing, it is necessary to avoid light, moisture, ozone, and heat sources, and to avoid deformation under pressure; When replacing the O-ring, it is recommended to check the smoothness and groove size of the mating surface simultaneously.
