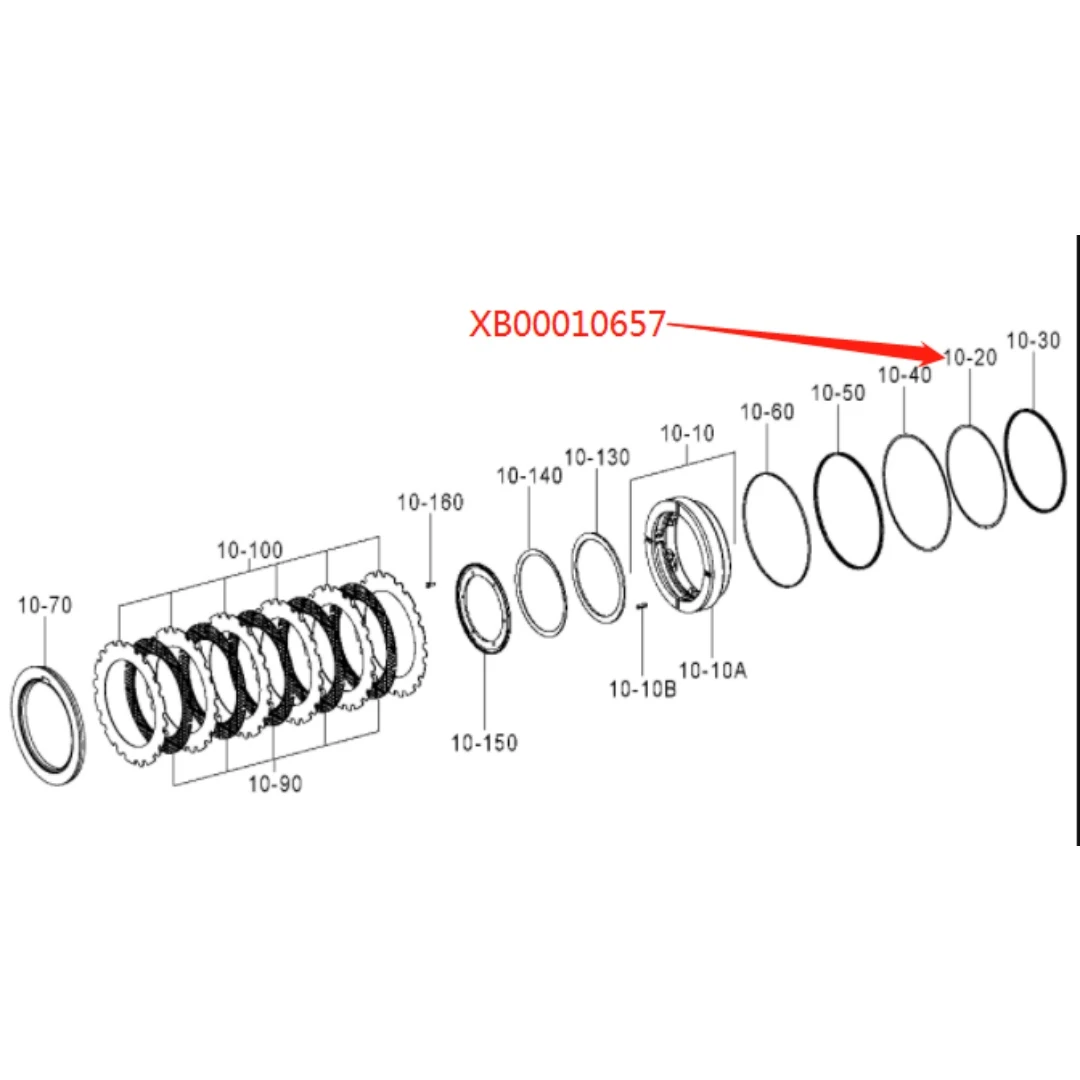

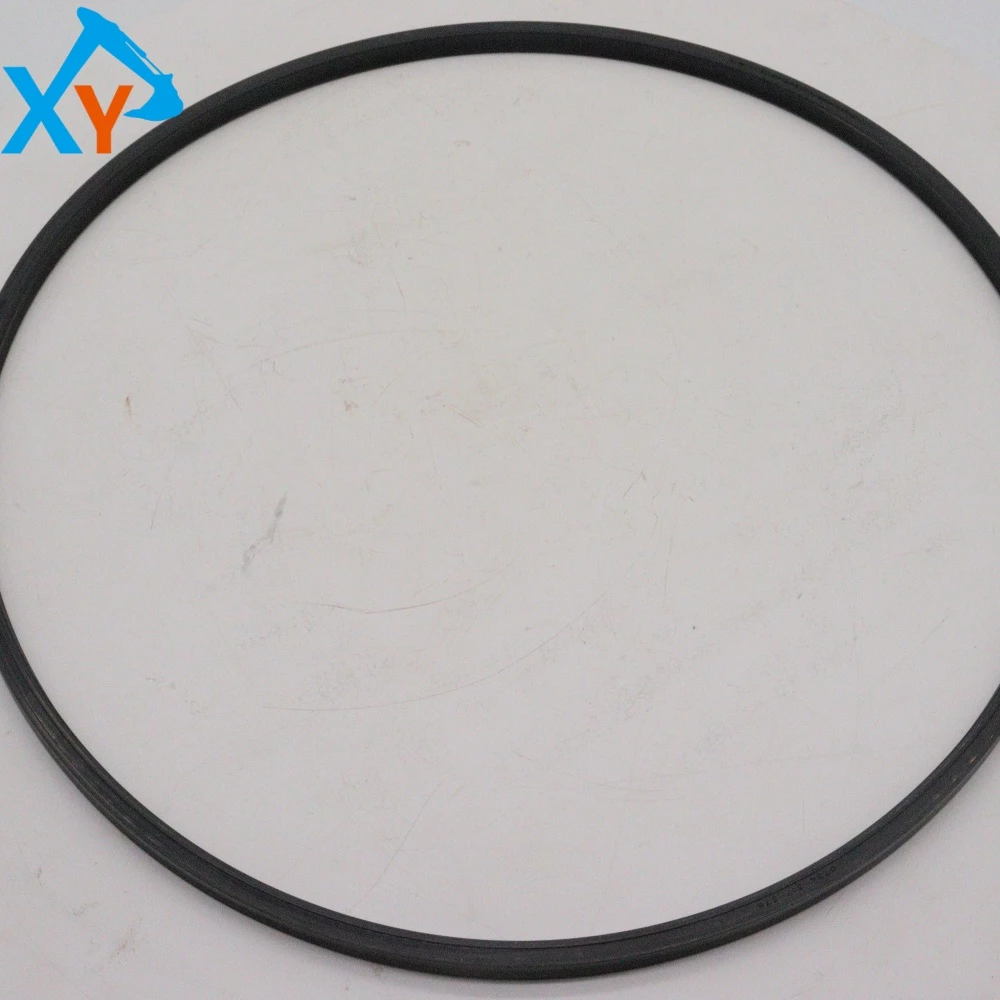

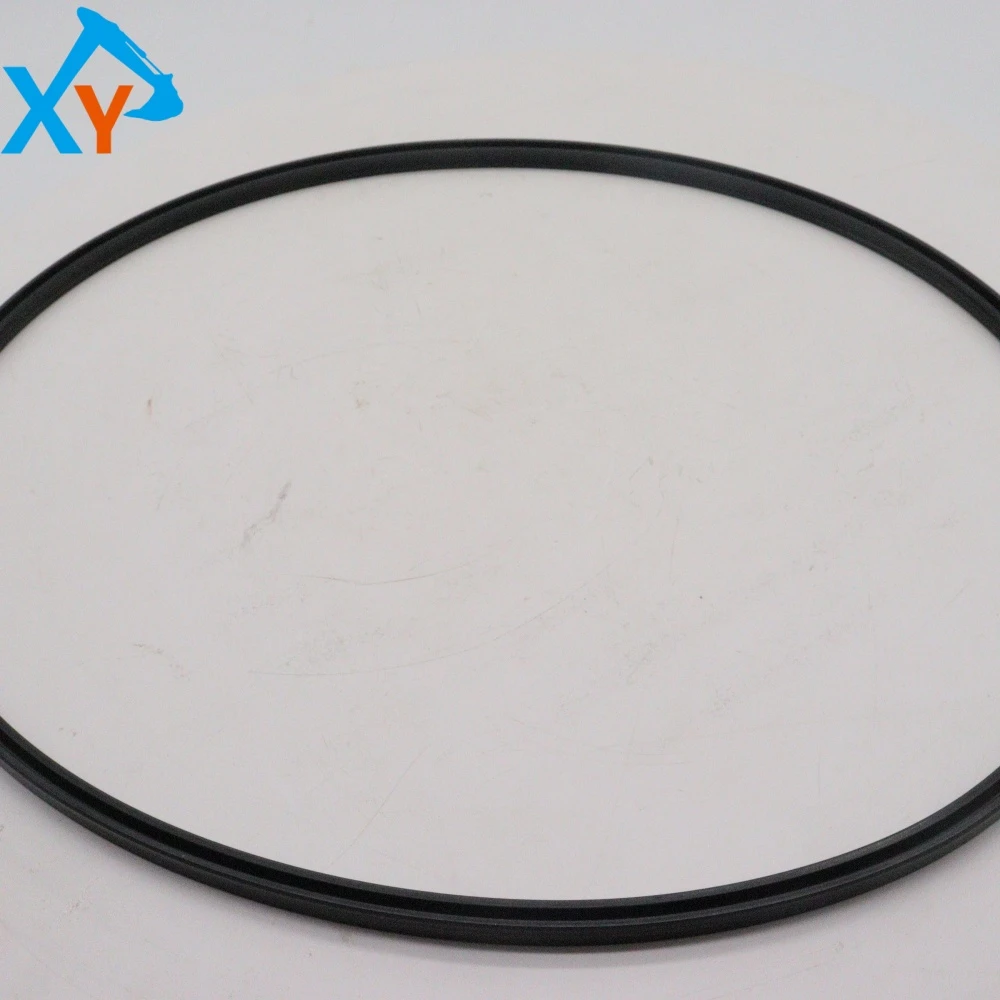

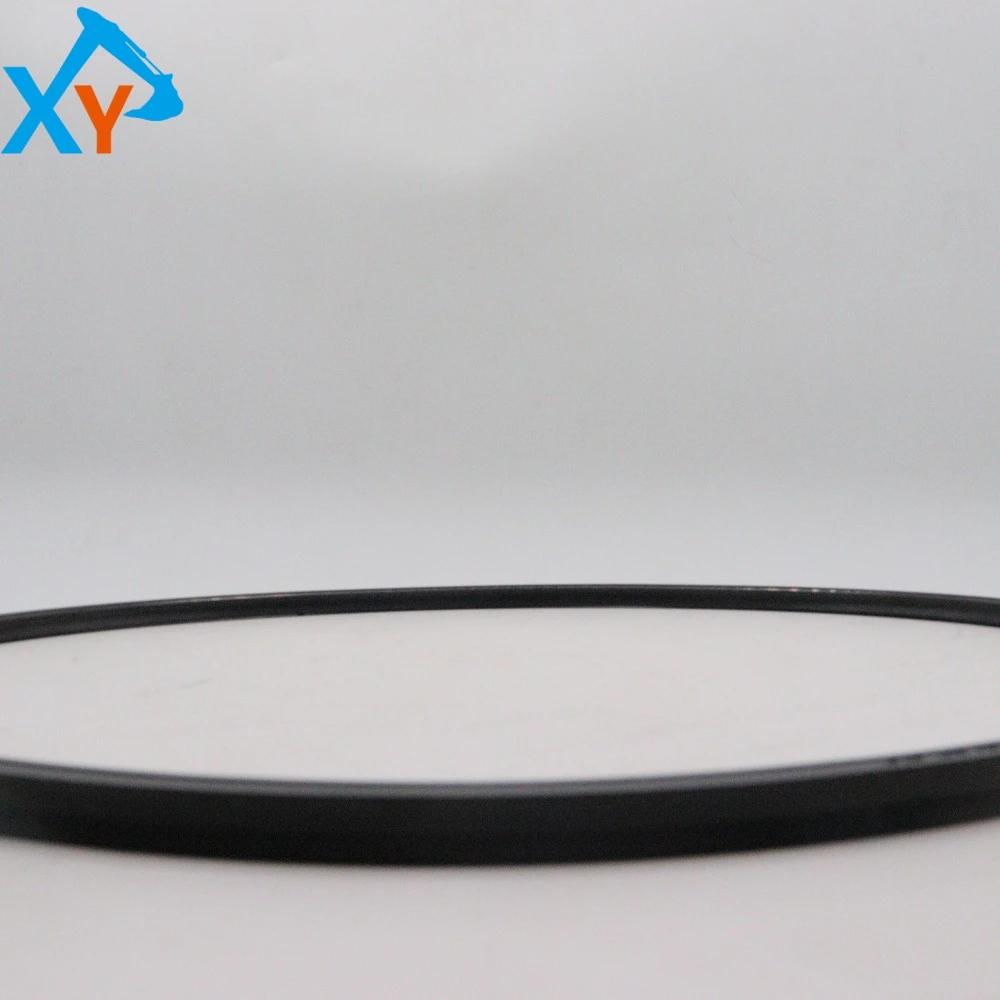

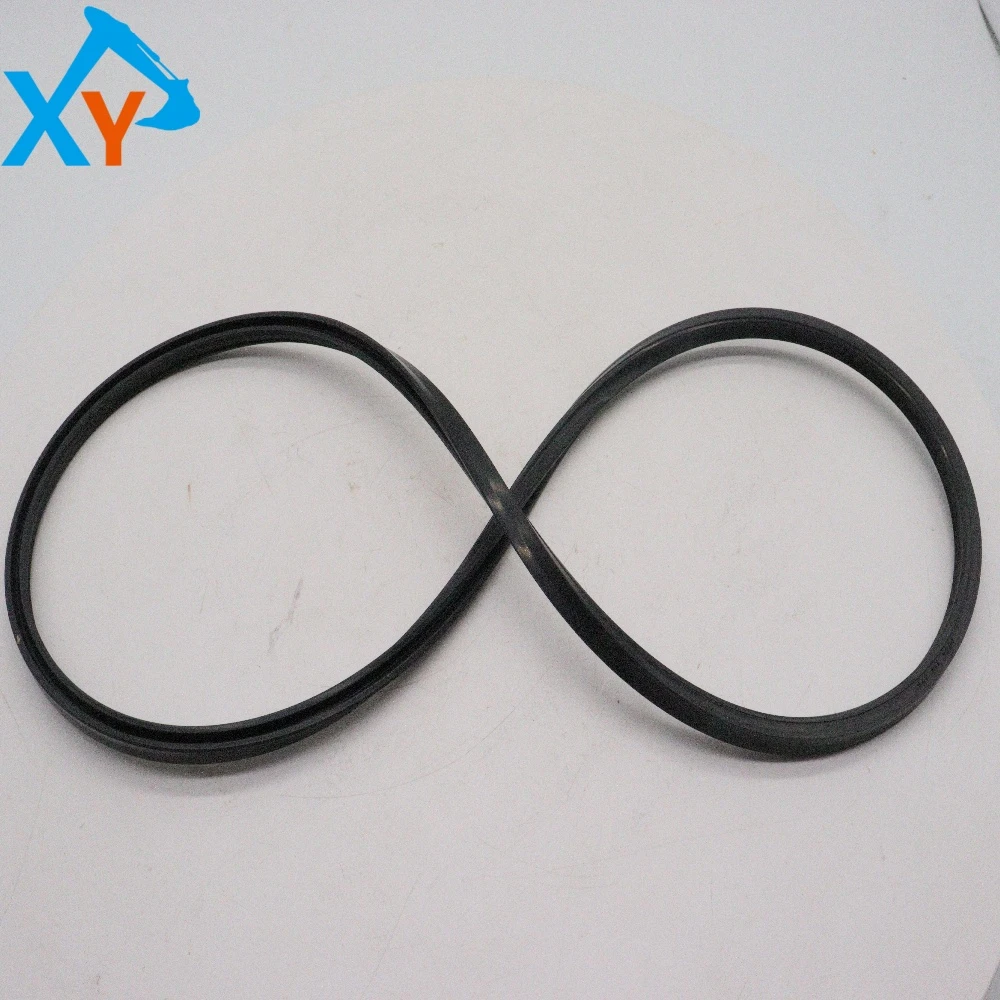

XB00010657 Original Loader Rubber Ring for ZW220-5A ZW180-5A

The part number XB00010657 is a Hitachi original rubber seal ring, usually referring to an O-ring, which is a critical vulnerable seal in hydraulic and lubrication systems. According to Hitachi's accessory system, this part number corresponds to the original standard or non-standard sealing ring. It is widely compatible with the hydraulic systems, pneumatic pipelines, and various valve block interfaces of multiple wheel loaders in the Hitachi ZW series. Specifically, it may be applied to common models such as ZW180, ZW220, ZW250, ZW310, ZW330 for oil cylinder piston rod sealing, pipe joint sealing, valve core sealing, etc. The original part number is XB00010657, which should be used as the reference for procurement. Due to the fact that the size (inner diameter, wire diameter), material, and hardness of the sealing ring must be perfectly matched with the sealing groove and medium, it is necessary to provide the complete model, serial number, and specific installation position of the sealing ring (such as cylinder number, valve block drawing number) of the loader before replacement for accurate matching.


This rubber ring is the core sealing component that prevents hydraulic oil, lubricating oil, or gas leakage. Its core function is to generate elastic deformation in the sealing groove, fill the micro gaps between the mating parts, form static or dynamic seals, and effectively isolate the internal and external circulation of the medium. As an original part, it is made of high-performance synthetic rubber materials (such as nitrile rubber NBR, fluororubber FKM or hydrogenated nitrile rubber HNBR), with excellent hydraulic oil resistance, lubricating oil resistance, high temperature resistance (operating temperature range is usually -30 ℃ to+120 ℃), wear resistance and aging resistance. Its cross-section is a standard O-shape, which is vulcanized and formed by precision molds to ensure strict dimensional tolerances in accordance with international standards

The maintenance core of this rubber ring lies in regular inspection, preventive replacement, and standardized installation. Rubber rings are vulnerable parts. It is recommended to conduct a systematic inspection every 2000 working hours or annually (whichever comes first) and replace them according to the actual situation. Do not wait until complete failure leads to system contamination or pressure drop. Replacement specification: When replacing, be sure to thoroughly release the system pressure and clean the installation area. Use special tools (such as plastic pry bars) to carefully remove the old ring to avoid scratching the sealing groove and mating surface. Before installation, apply the specified silicone grease to the rubber ring and sealing groove, and ensure that the ring body is not twisted or stretched excessively before placing it flat into the groove.
