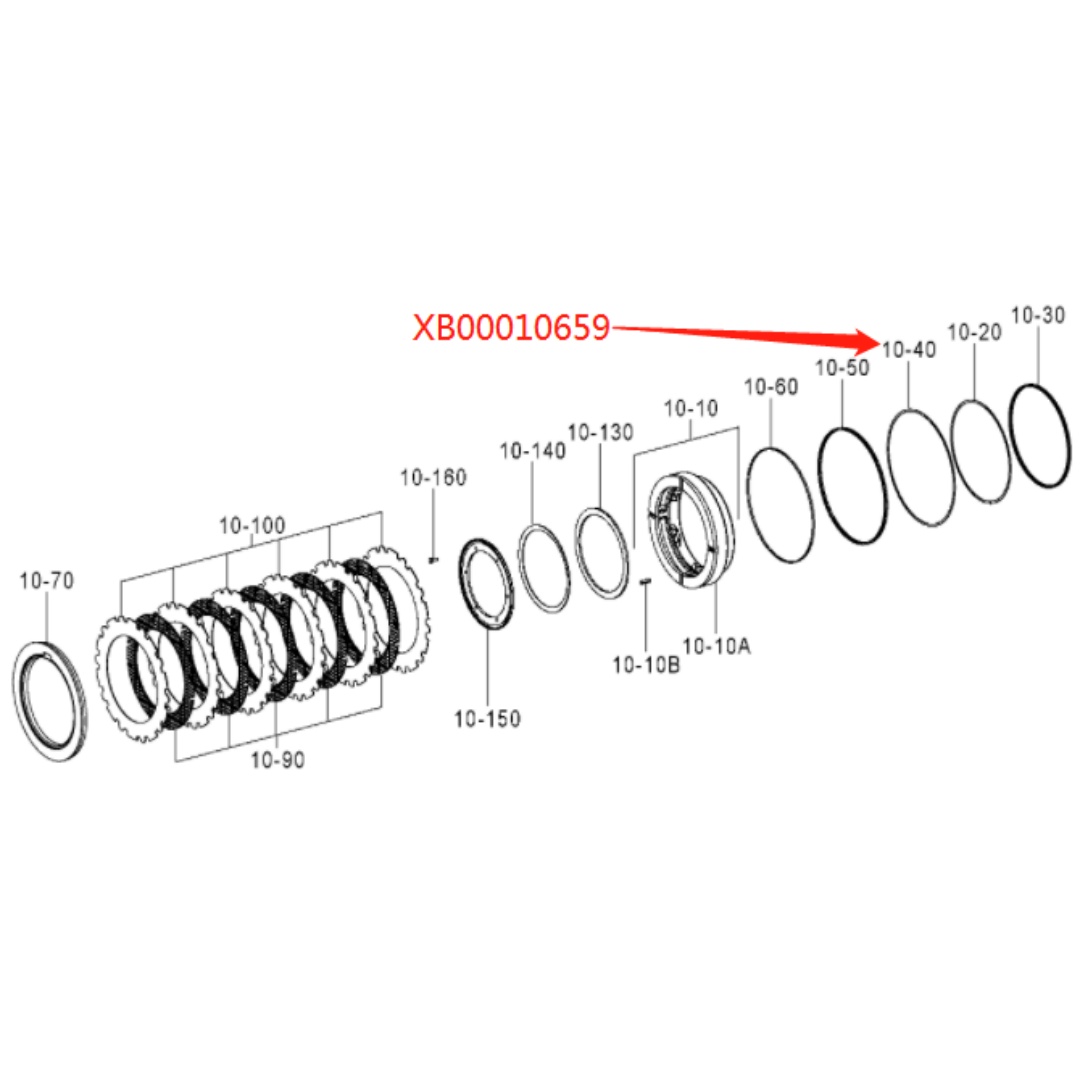

XB00010659 Original Loader Rubber Ring for ZW180-5A

The original rubber seal ring corresponding to part number XB00010659 is specially designed by Hitachi for the ZW180-5A wheel loader. Its universal model is this part number, specifically designed for the ZW180-5A model. This rubber ring is a critical static or dynamic sealing component on loaders, which may be used for hydraulic oil pipe joints, valve block joint surfaces, cylinder end caps, or observation hole covers on various enclosures such as gearboxes and drive axles. As an original precision seal, its inner diameter, outer diameter, cross-sectional diameter (wire diameter), and material hardness are precisely matched with the design of the corresponding sealing groove. It is strictly prohibited to use substitute materials that do not match the material to avoid oil leakage, dust intrusion, or pressure loss.

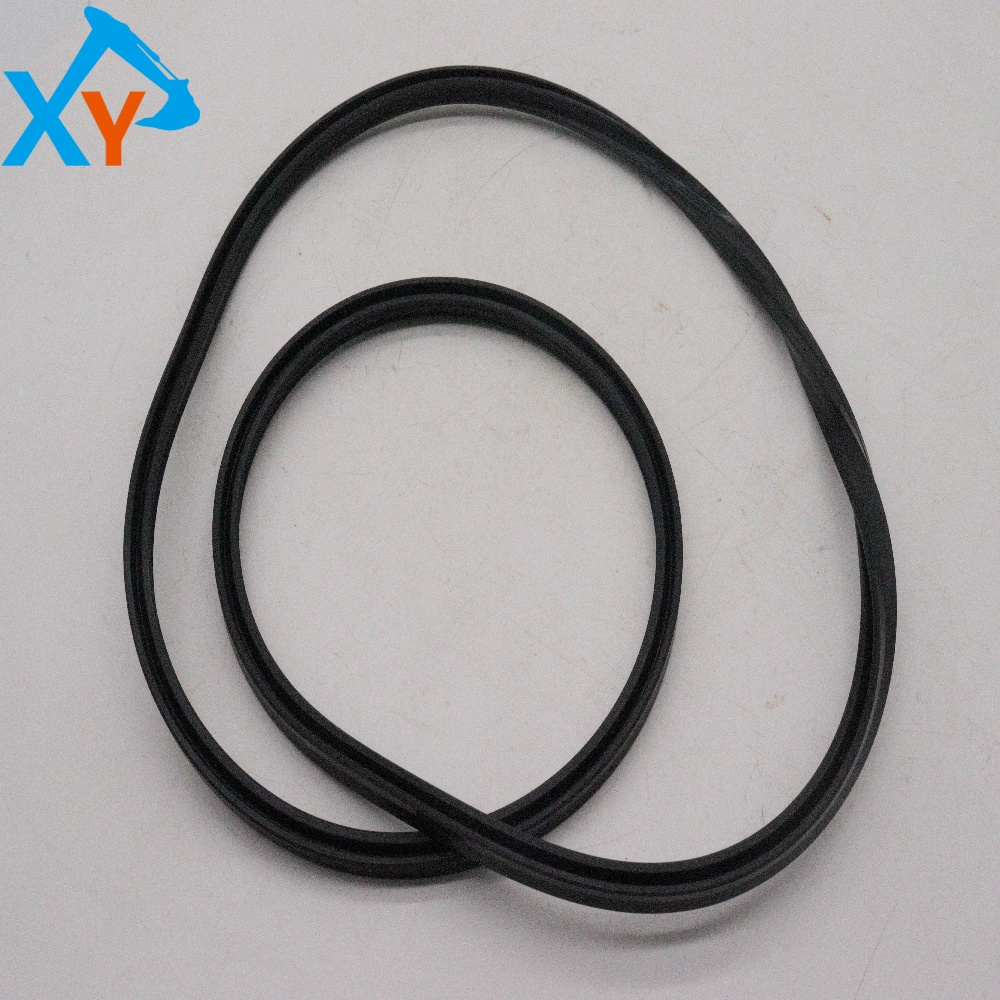

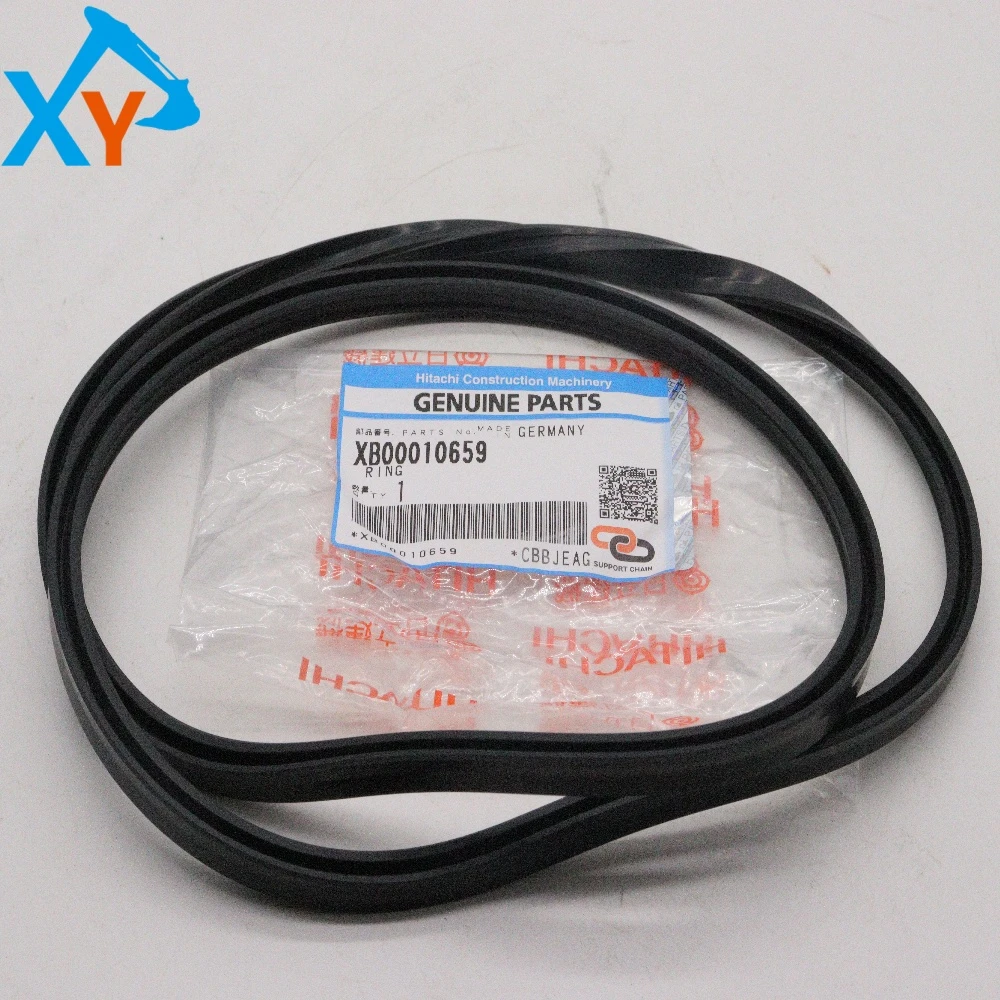

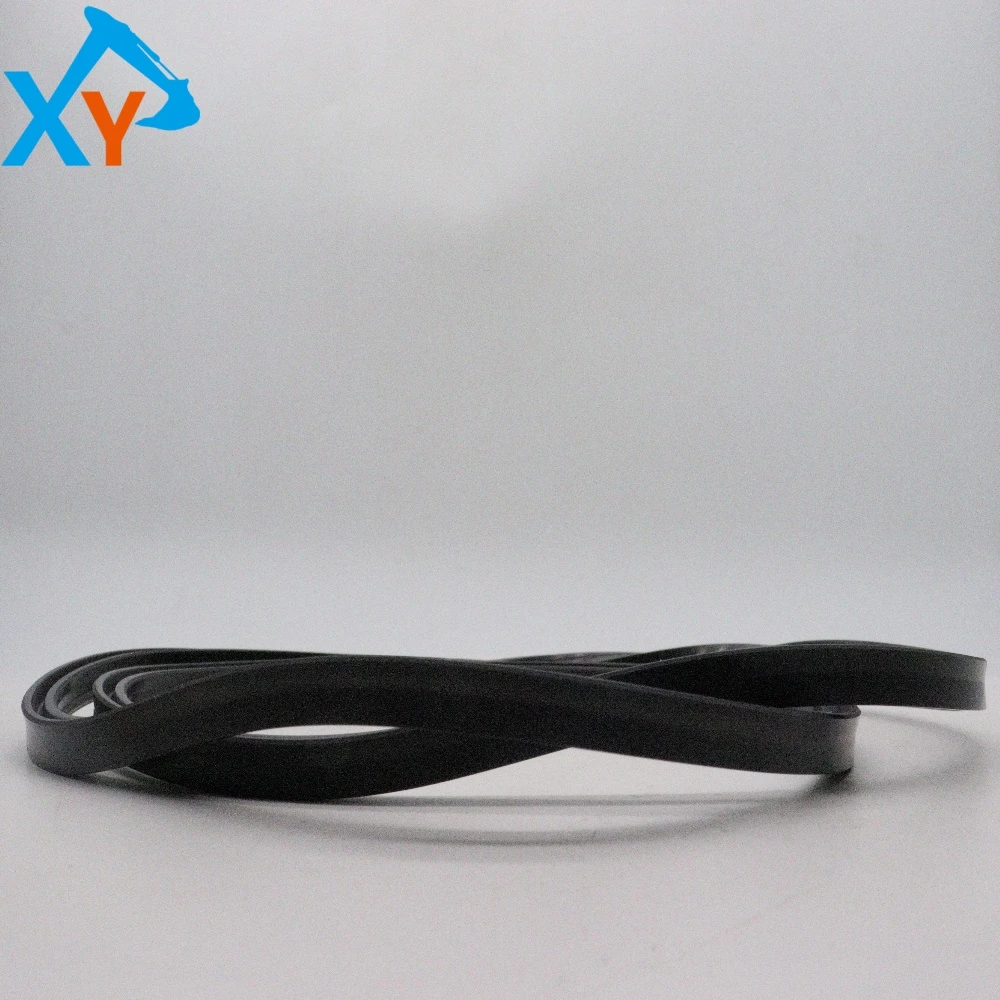

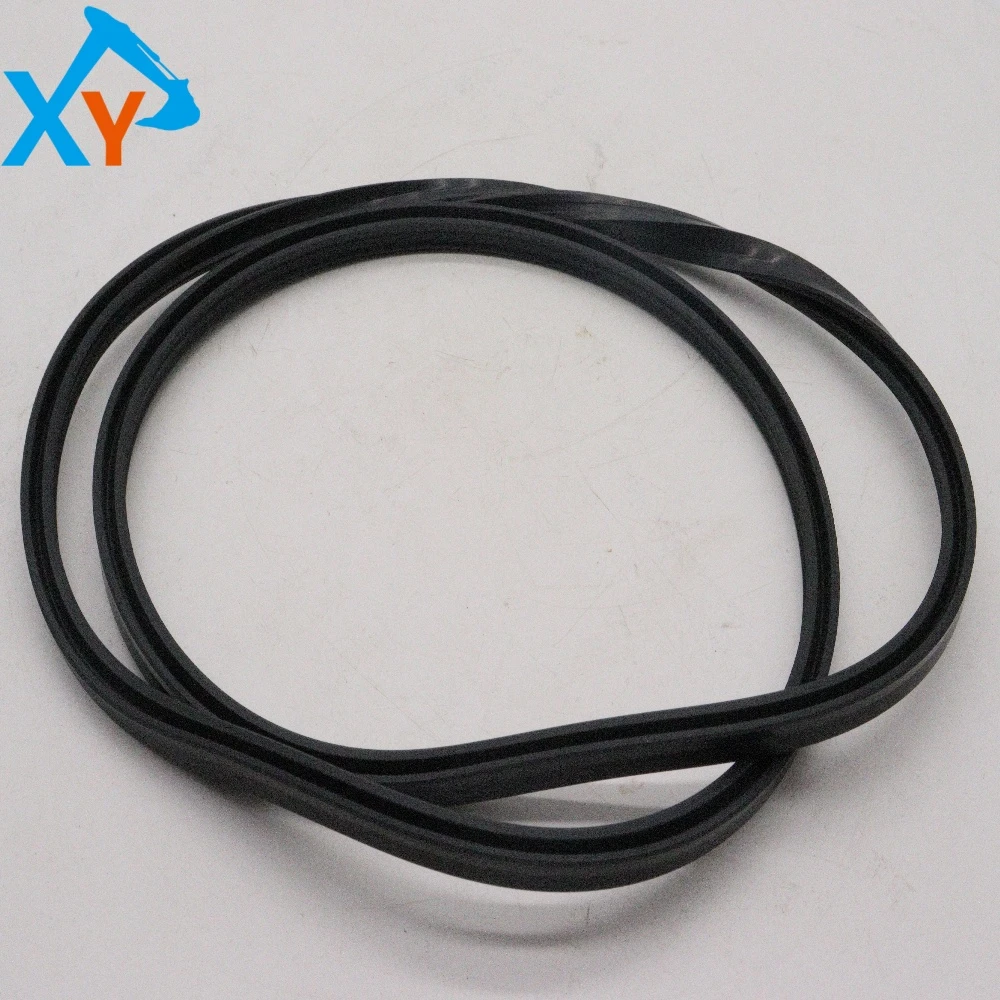

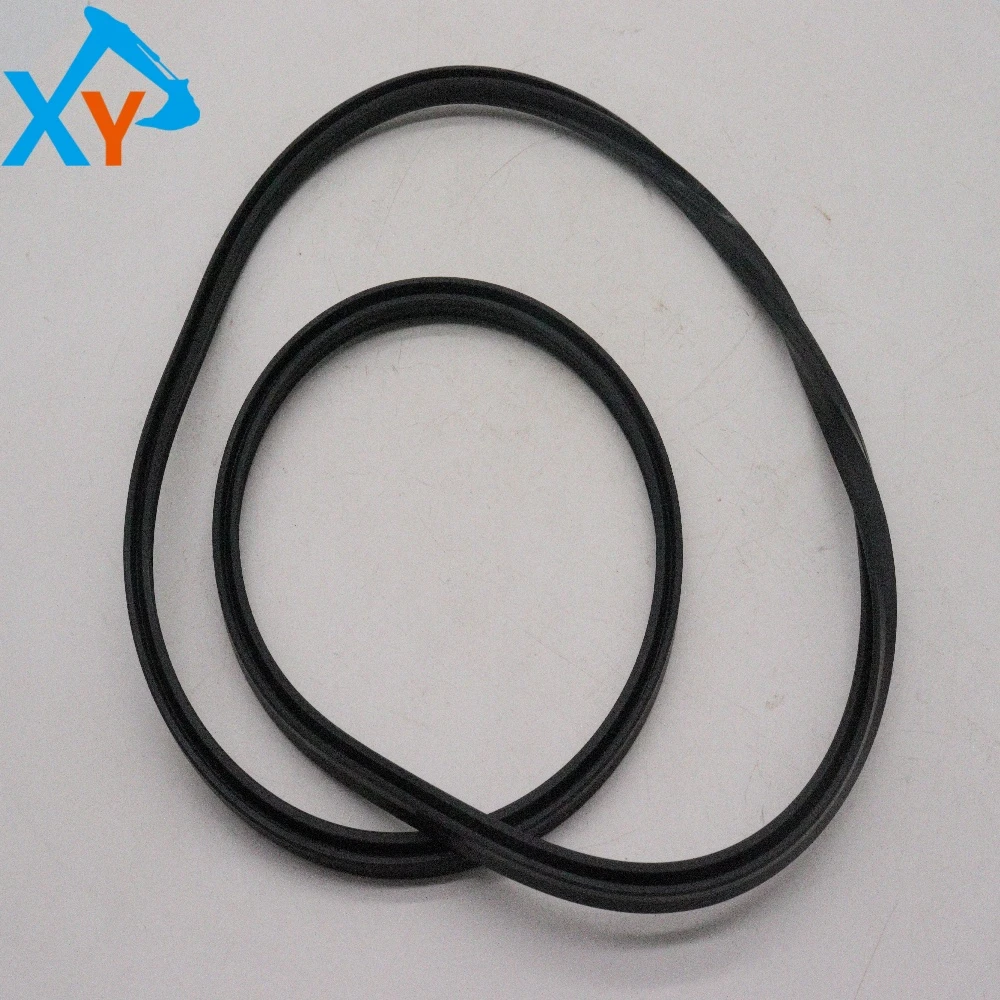

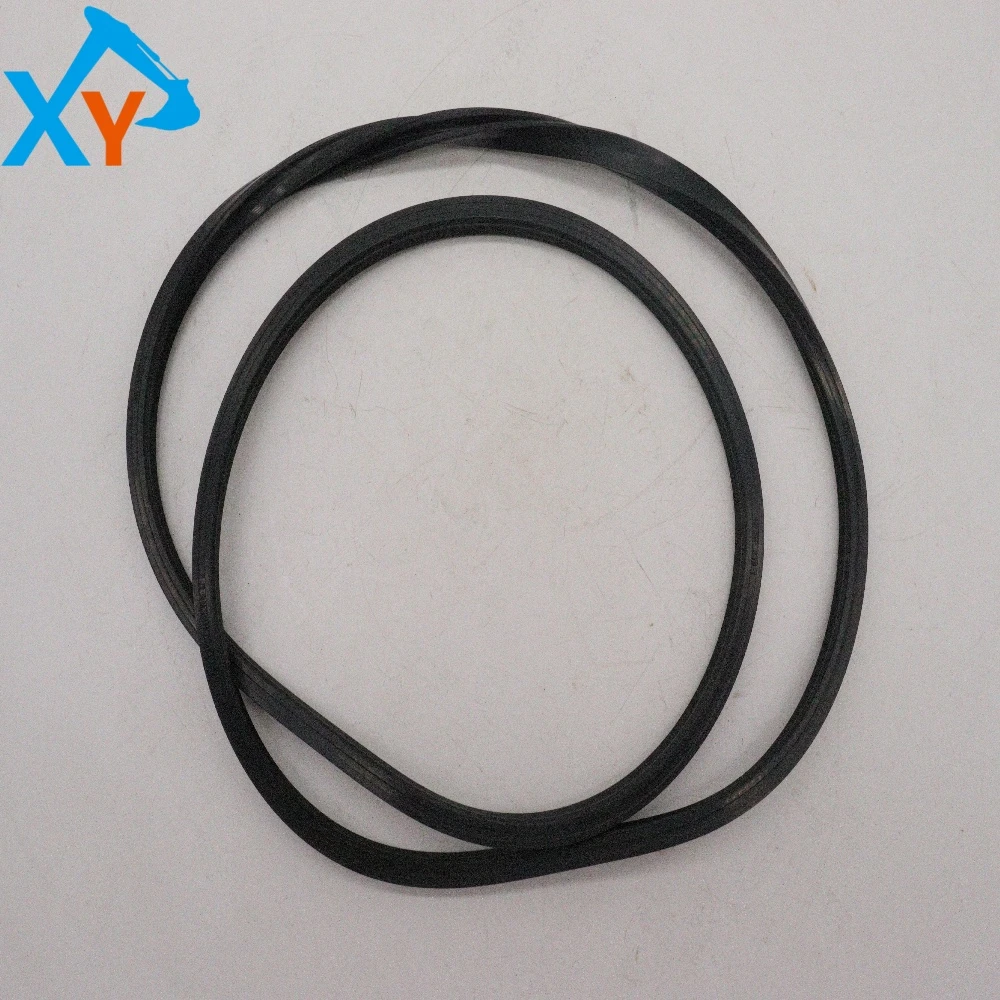

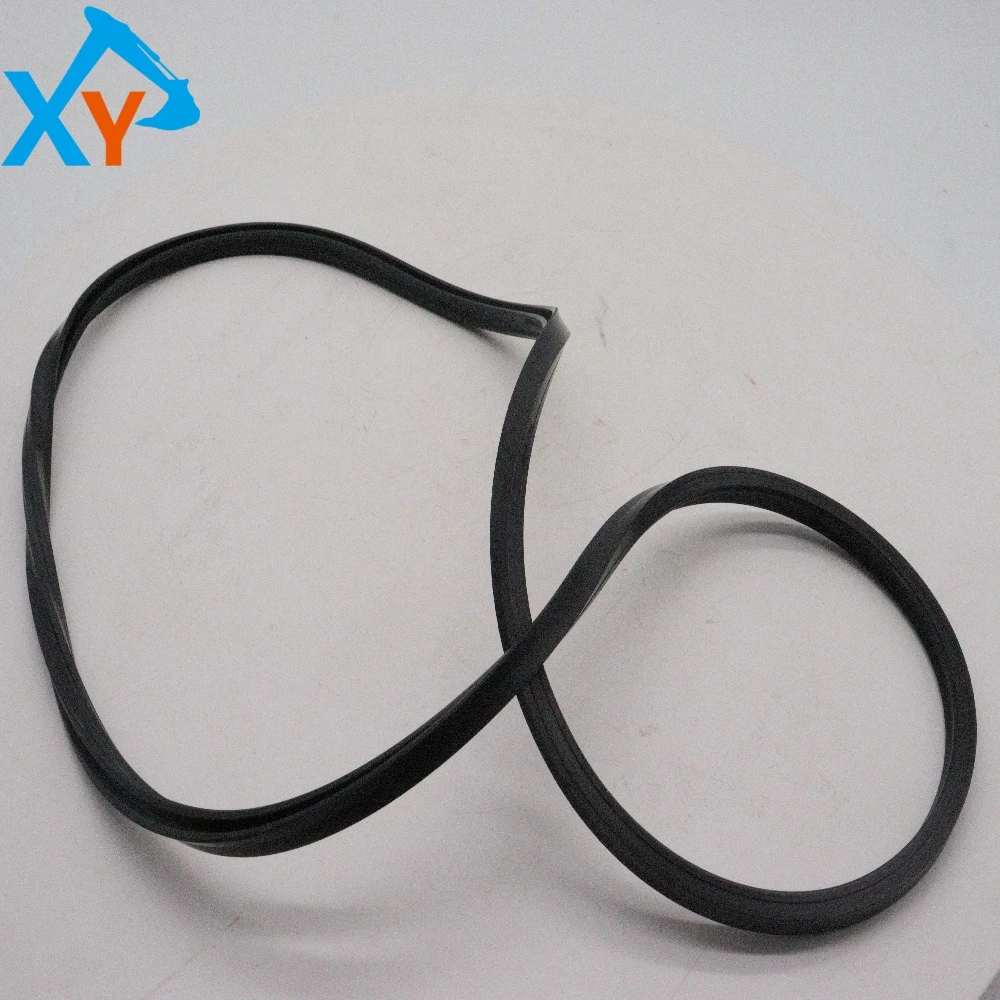

This product is an O-ring or rectangular sealing ring made of nitrile rubber (NBR) or fluororubber (FKM) material, with a standard black ring shape, smooth surface, uniform texture, and high elasticity. Its cross-section is circular or rectangular, with a certain thickness and width, which can provide reliable sealing force under certain compression. The rubber ring is made of special synthetic rubber with oil resistance, heat resistance and aging resistance. It can maintain elasticity and sealing performance in the temperature range of -30 ℃ to+120 ℃ and in the environment of long-term contact with hydraulic oil and gear oil. Its core function is to form a leak free flexible sealing barrier between two metal joint surfaces, which is the basic component to ensure the clean and reliable operation of hydraulic and transmission systems.

Installation specifications (key focus on cleaning and protection): 1 Cleaning: Before installation, the sealing ring itself, installation groove, and mating metal surface must be thoroughly cleaned with a lint free cloth and cleaning agent to ensure that there is no dust, particles, or residual old sealing ring. 2. Lubrication: During installation, evenly apply a layer of compatible clean grease or hydraulic oil on the surface of the rubber ring to facilitate installation and prevent damage from dry abrasion during initial operation. 3. Be careful during installation: Place the sealing ring (XB00010659) flat into the sealing groove by hand, ensuring that it is not twisted, stretched, or squeezed. When installing metal parts, align and press them smoothly to avoid cutting the sealing ring with sharp edges.
