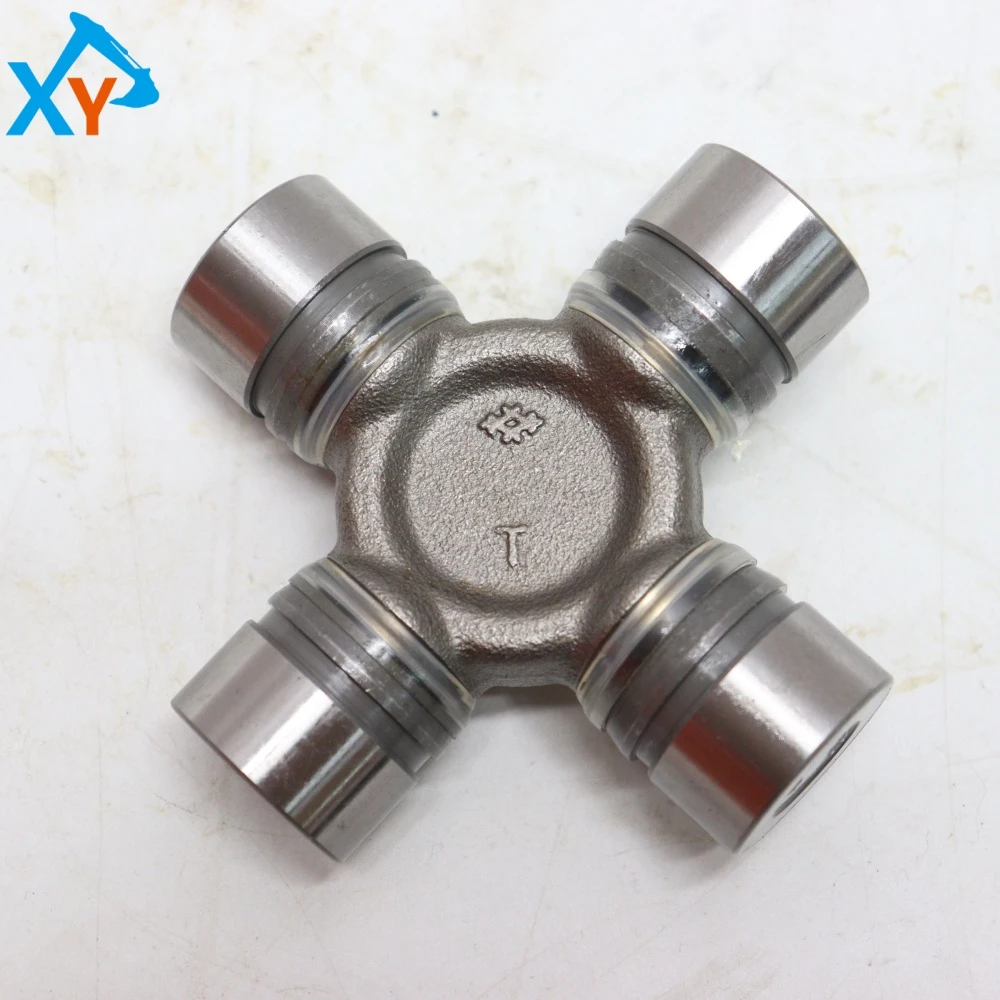

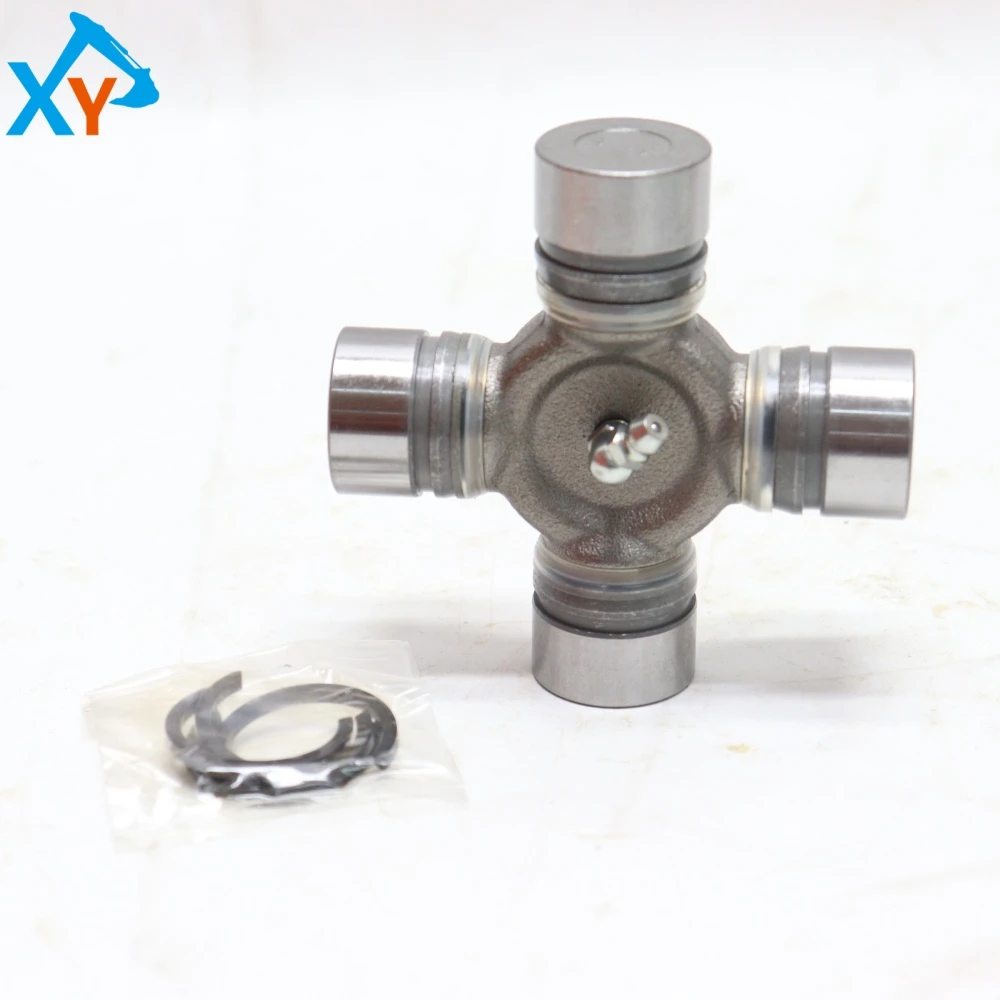

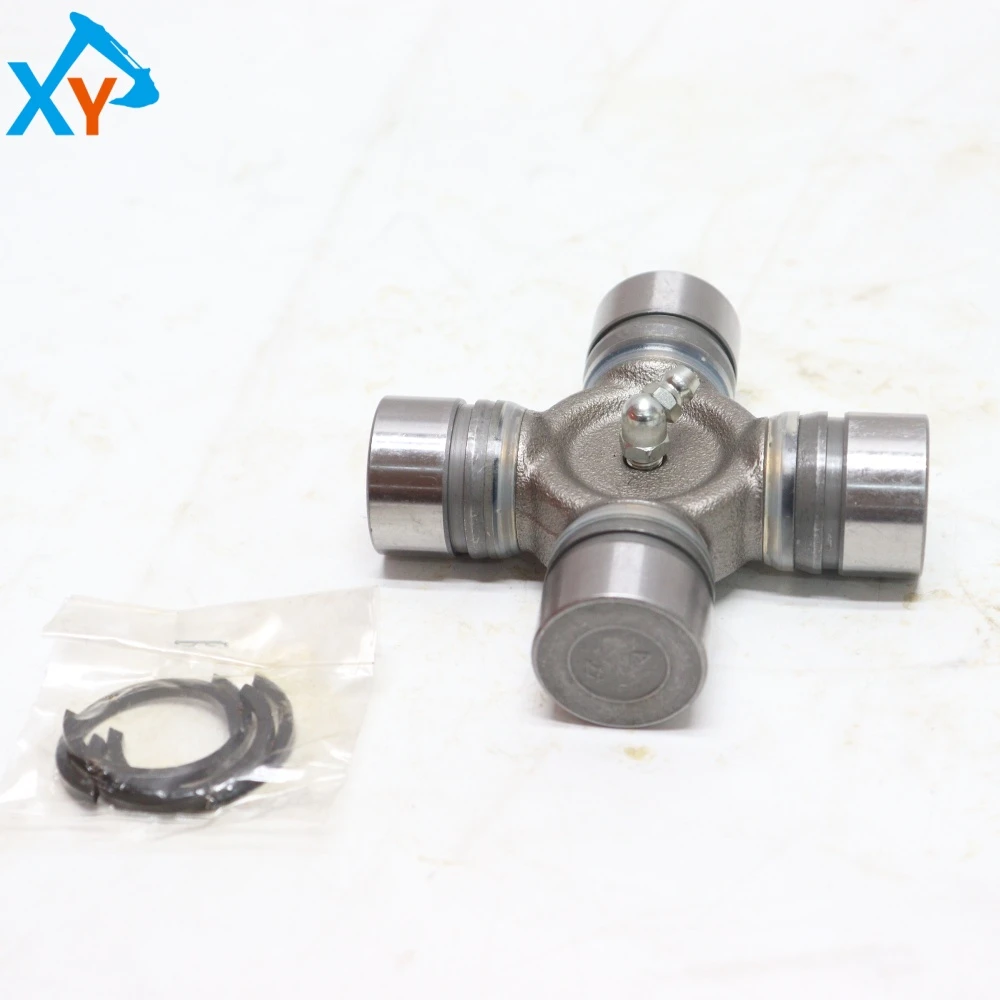

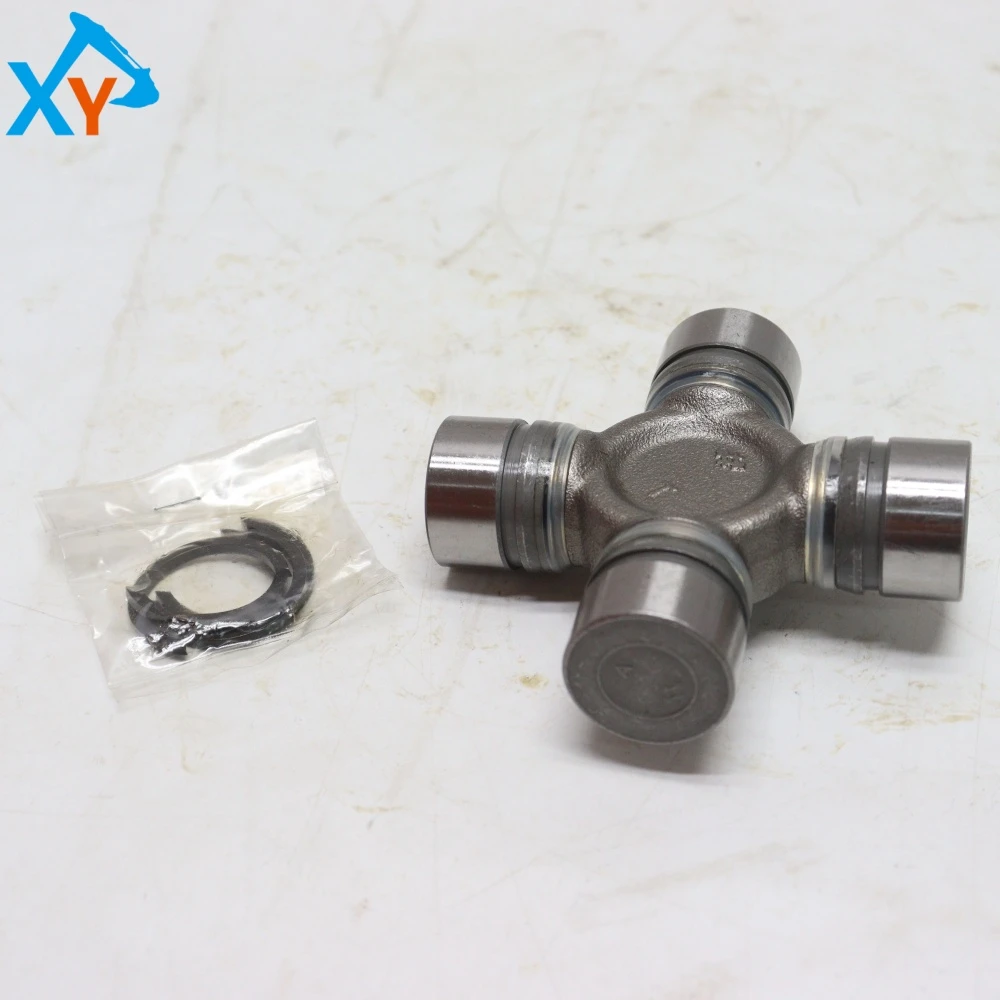

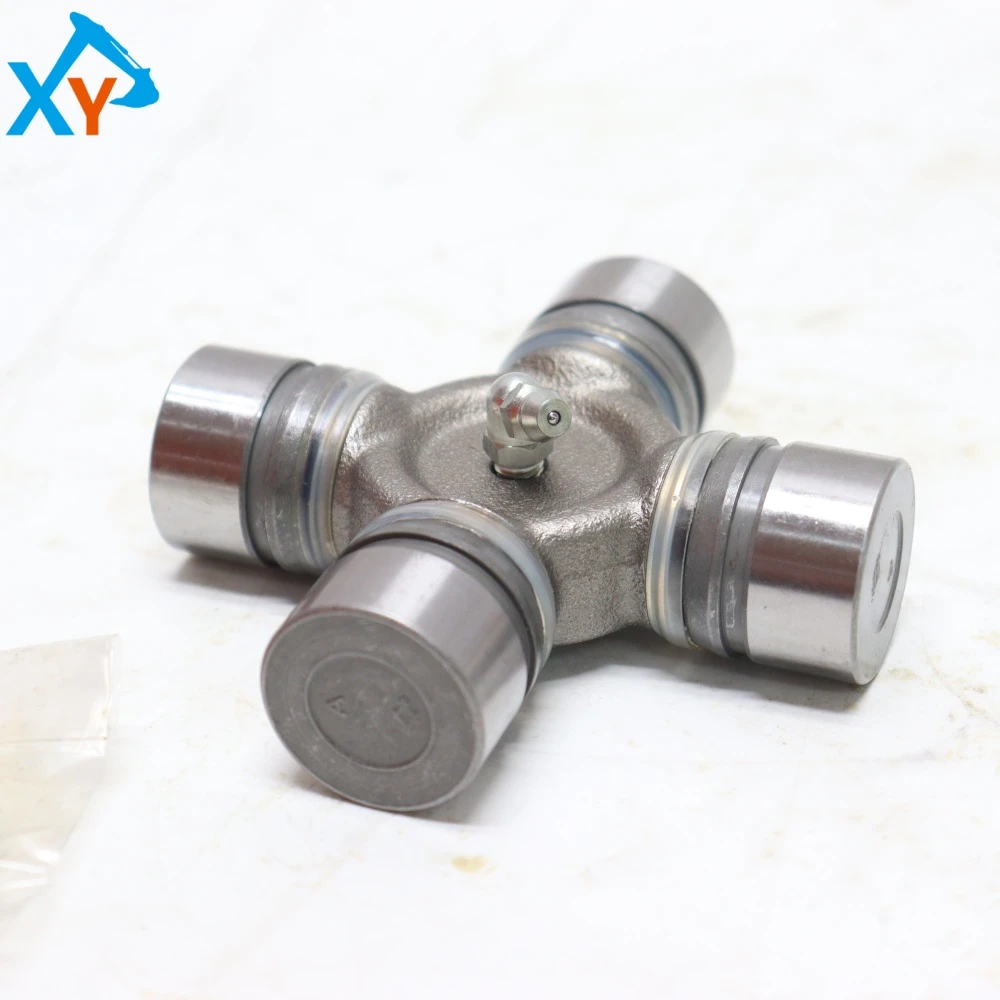

XB00016559 Hitachi Genuine Cross Joint for ZW40-5B ZW50-5B Wheel Loader

The part number XB00016559 is the official part number for the Hitachi original loader drive shaft cross joint (also known as the universal joint cross shaft). This component is the core connection and power transmission element of the transmission shaft assembly, responsible for reliably transmitting torque and rotational motion between the gearbox output shaft and the drive axle input shaft at a certain angle (usually 0 ° -35 °), compensating for the relative position changes of the two shafts caused by vehicle articulated steering and road bumps, and is a key component to ensure smooth transmission of power during loader operation. As an original standard component, it is mainly suitable for Hitachi ZW series medium and large wheel loaders, such as ZW140, ZW180, ZW220, ZW250, ZW310, ZW330, ZW370-G, ZW550-G and other models

This original cross joint belongs to the core precision motion pair component of the transmission shaft universal joint. Its core function is to act as a rigid "cross" shaped pivot, which is matched with the bearing holes of two universal joint forks through four shaft necks to form a relatively rotatable hinge point, thereby achieving variable angle power transmission between the two shafts and withstanding alternating bending, twisting, and shear composite stresses. It is usually made of high-strength alloy steel, which undergoes precision forging, carburizing and quenching, precision grinding, and surface rust prevention treatment. It has extremely high surface hardness, core toughness, and excellent fatigue and wear resistance. The dimensional accuracy, coaxiality, and surface smoothness requirements of its four shaft necks are extremely high, usually equipped with needle roller bearings and dust-proof oil seals to reduce friction, improve transmission efficiency, and prevent grease leakage and impurities from entering.

The maintenance core of this cross joint lies in regular lubrication, checking the wear condition, and ensuring installation accuracy. Inspection and diagnosis: Combined with regular maintenance every 1000 working hours, check for abnormal wear, peeling, or rust on the cross shaft neck, whether the oil seal is intact and there is no oil leakage, and shake the transmission shaft by hand to check for obvious radial clearance (looseness) between the cross shaft and the universal joint fork. Installation and replacement: When disassembling, it is necessary to mark the relative position of the universal joint fork and the transmission shaft to ensure that the phase is consistent when reassembling. When installing a new cross shaft, special tools or copper hammers should be used to avoid directly tapping the shaft neck; Ensure that the needle roller bearing is installed in place and tighten the bearing cover fixing bolts evenly and in a cross pattern according to the torque specified in the maintenance manual.
