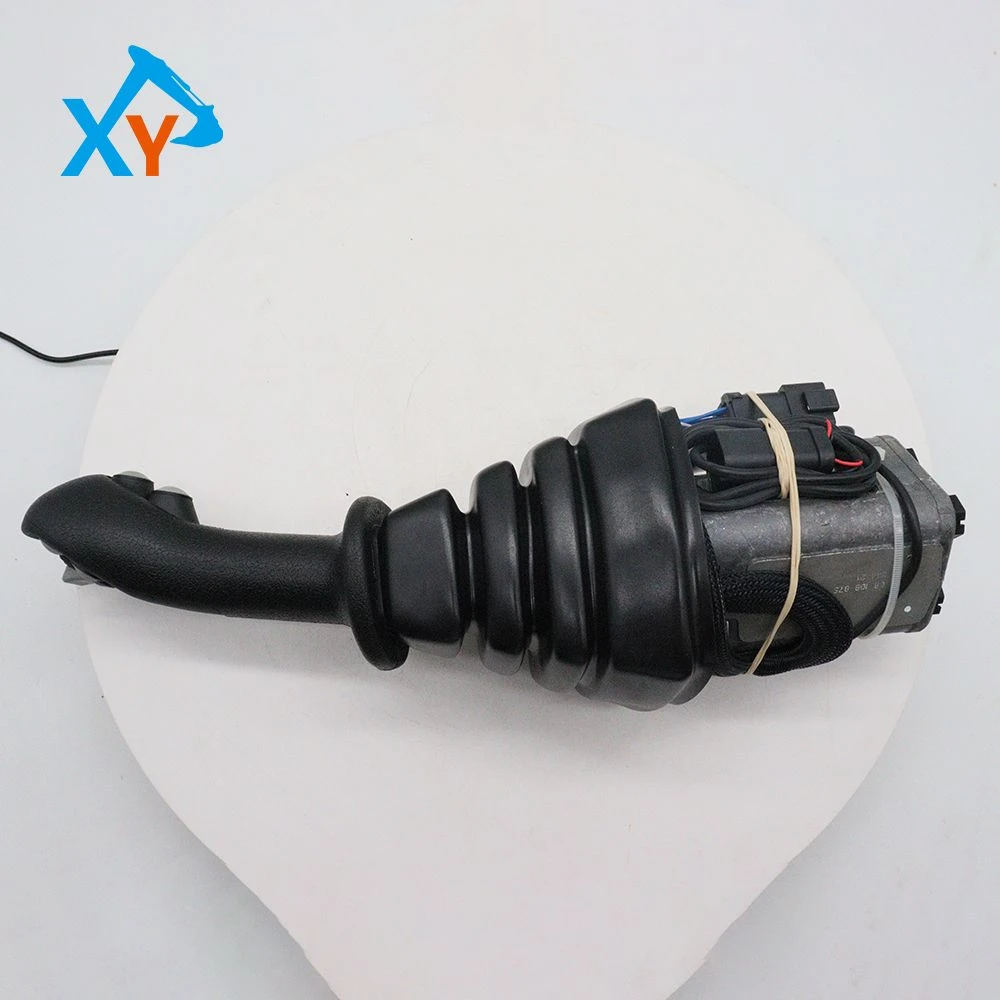

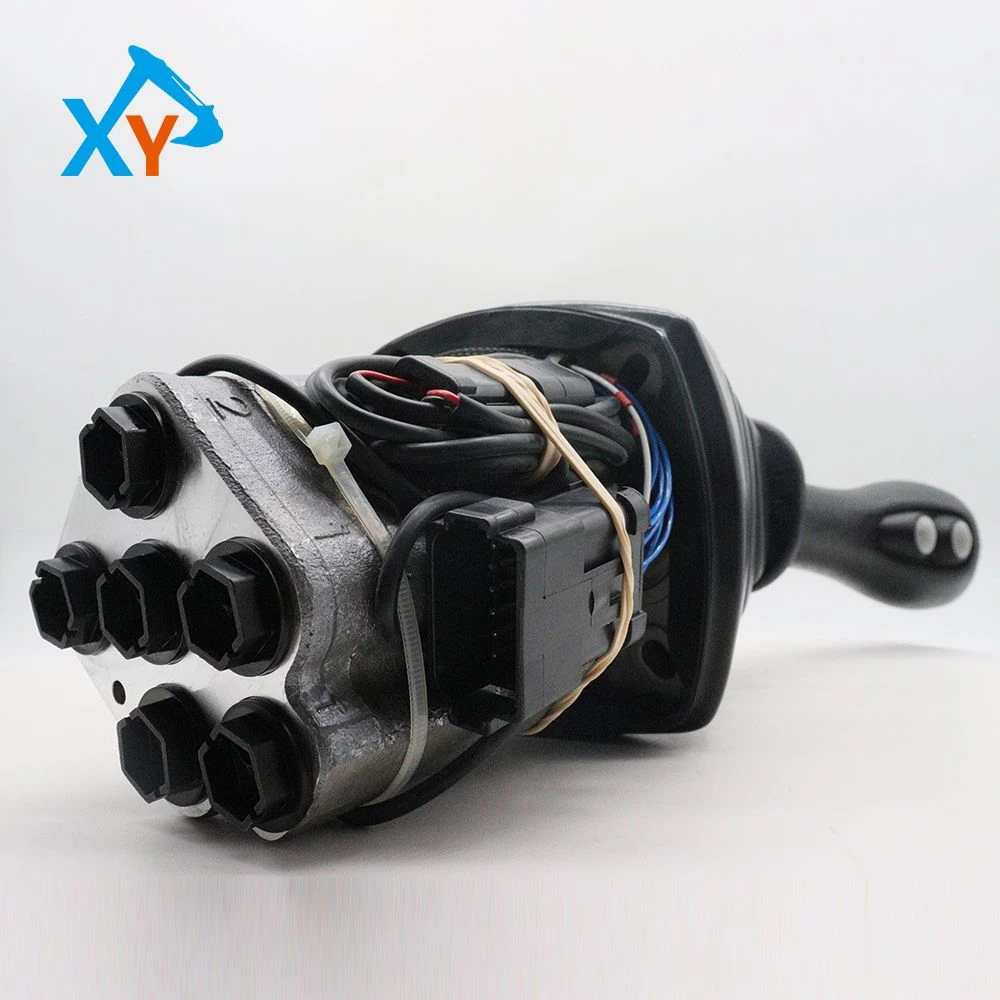

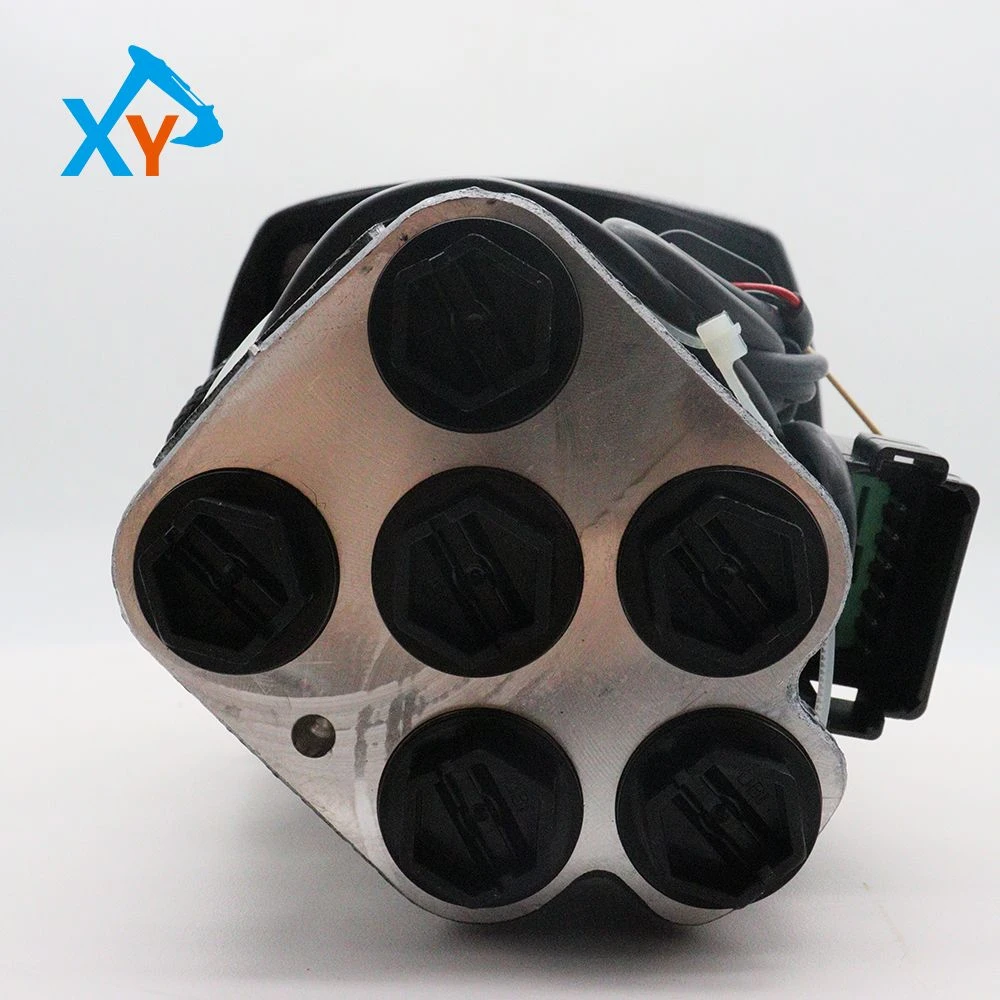

YA00080892 Genuine Hitachi original handle assembly for Hitachi ZW120-6 loader.

Part number YA00080892 is a dedicated pilot control handle assembly (including bucket/boom/steering functions) for Hitachi ZW120-6 wheel loaders, compatible with ZW120-6 and models on the same platform like ZW140-6/ZW150-6. It adopts a pilot proportional pressure reducing valve (output pressure 0.8-3.5MPa linearly adjustable), with a handle stroke of ±25° front and rear, ±20° left and right, an input air pressure of 0.6-0.8MPa (pneumatic power - assisted type), an input voltage of DC 24V (electronic control button module). It integrates 3 function buttons (working mode switching/horn/idle lock). The handle grip is made of oil - resistant rubber, with a protection class of IP65. It is suitable for Hitachi original pilot valve group, with a response time of ≤30ms, ensuring precise control of operation actions and efficient coordination.

Its core function is to output proportional pilot pressure signals through handle operation to control boom lifting, bucket retraction, steering and other actions. The button module supports one - key switching of working modes (standard/heavy - duty/economy), and the idle lock function can reduce fuel consumption during non - operation. The handle is equipped with a precision spring return mechanism inside (return force 5-8N), the spool of the proportional valve has no mechanical jamming, and the contacts adopt gold - plating technology (contact resistance < 10mΩ). It is suitable for working conditions with heavy dust, vibration and large temperature differences (operating temperature - 30℃ to 85℃), with an average service life of ≥500,000 operation cycles. It has an overload protection function (automatic pressure relief when the pilot pressure exceeds 4.0MPa) to prevent damage to hydraulic components.

Before replacement, turn off the engine and release the pressure of the hydraulic system. When disassembling, disconnect the wiring harness plug (mark the terminals), remove the fixing bolts with a torque of 5-8N·m, and clean the mounting base (free of oil stains and impurities). When installing, align with the positioning pin, tighten the bolts symmetrically (5-8N·m). After connecting the plug, perform a function test (normal button response and smooth handle return), and test the pilot pressure (0.8-3.5MPa linear output). This handle assembly can improve the control accuracy of operation actions by 25%, reduce the failure shutdown rate of the hydraulic system by 30%, decrease fuel consumption by 10%, extend the service life of the pilot valve group and hydraulic pump, and enhance operation efficiency and operating comfort.
