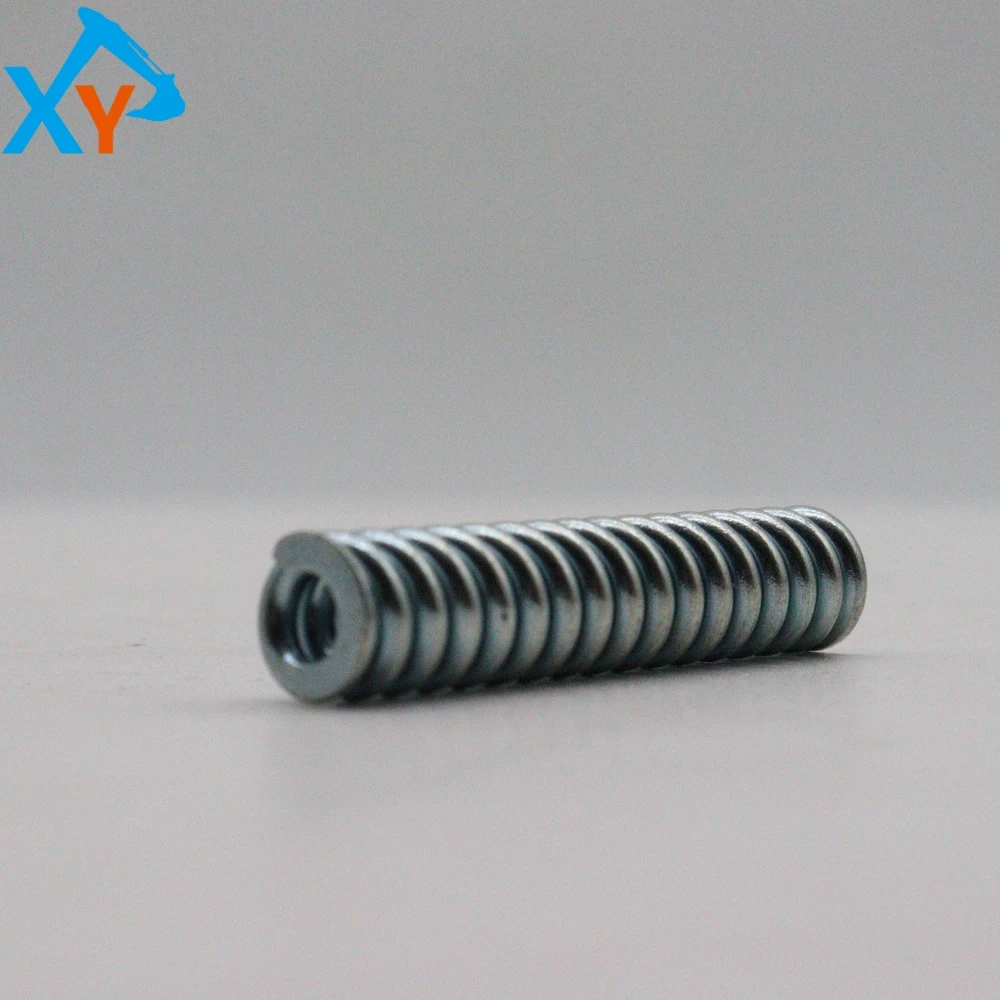

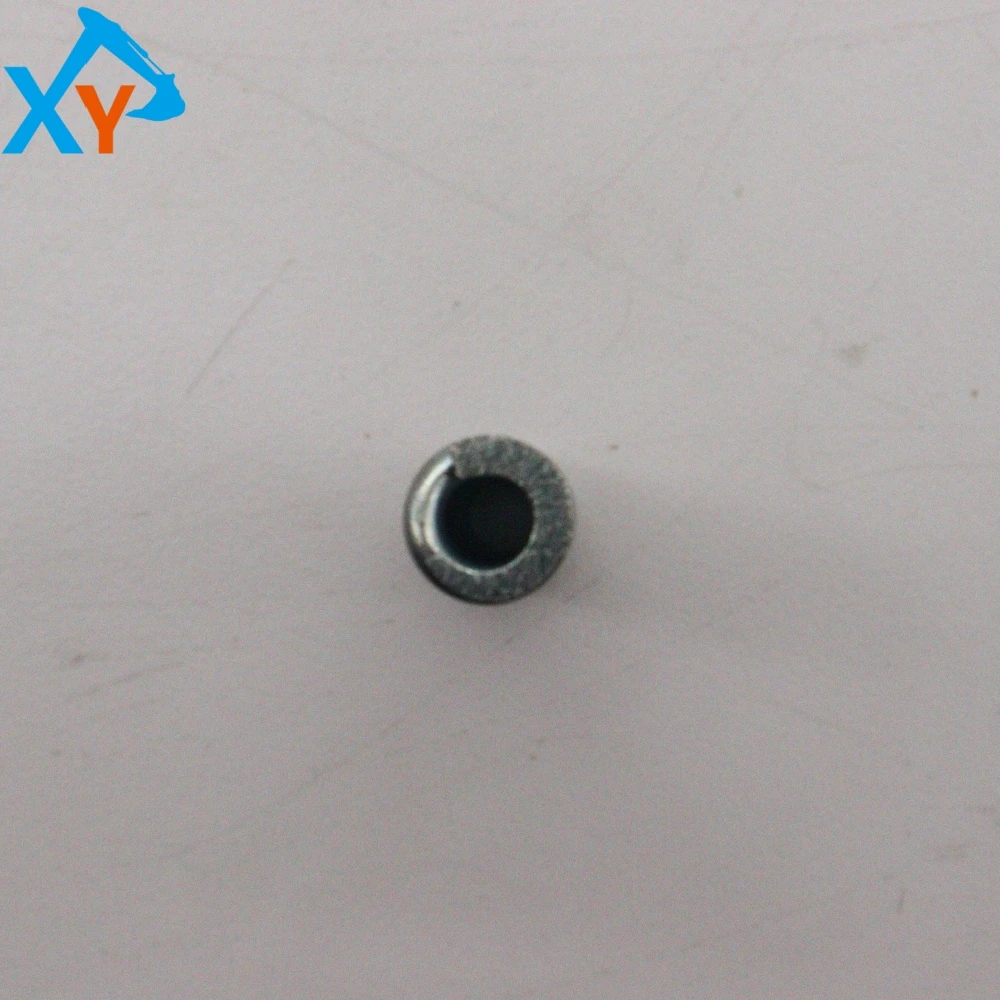

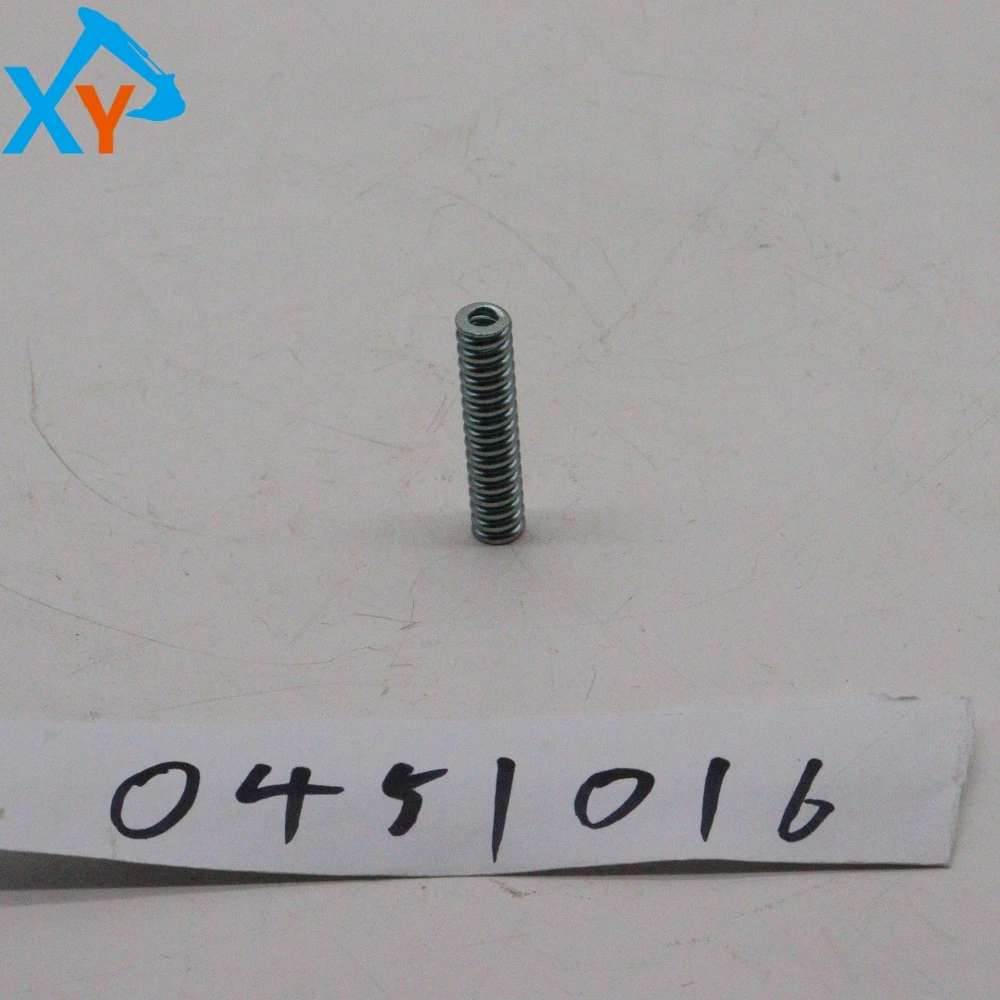

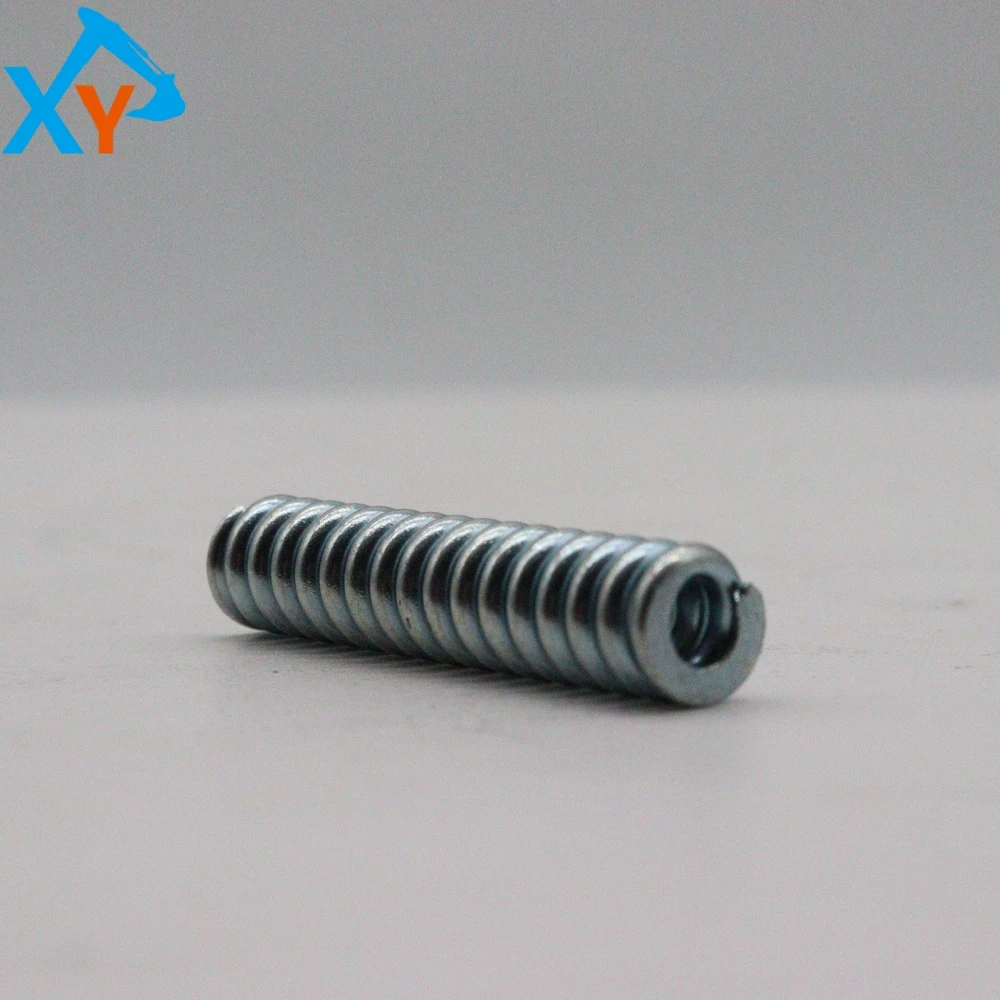

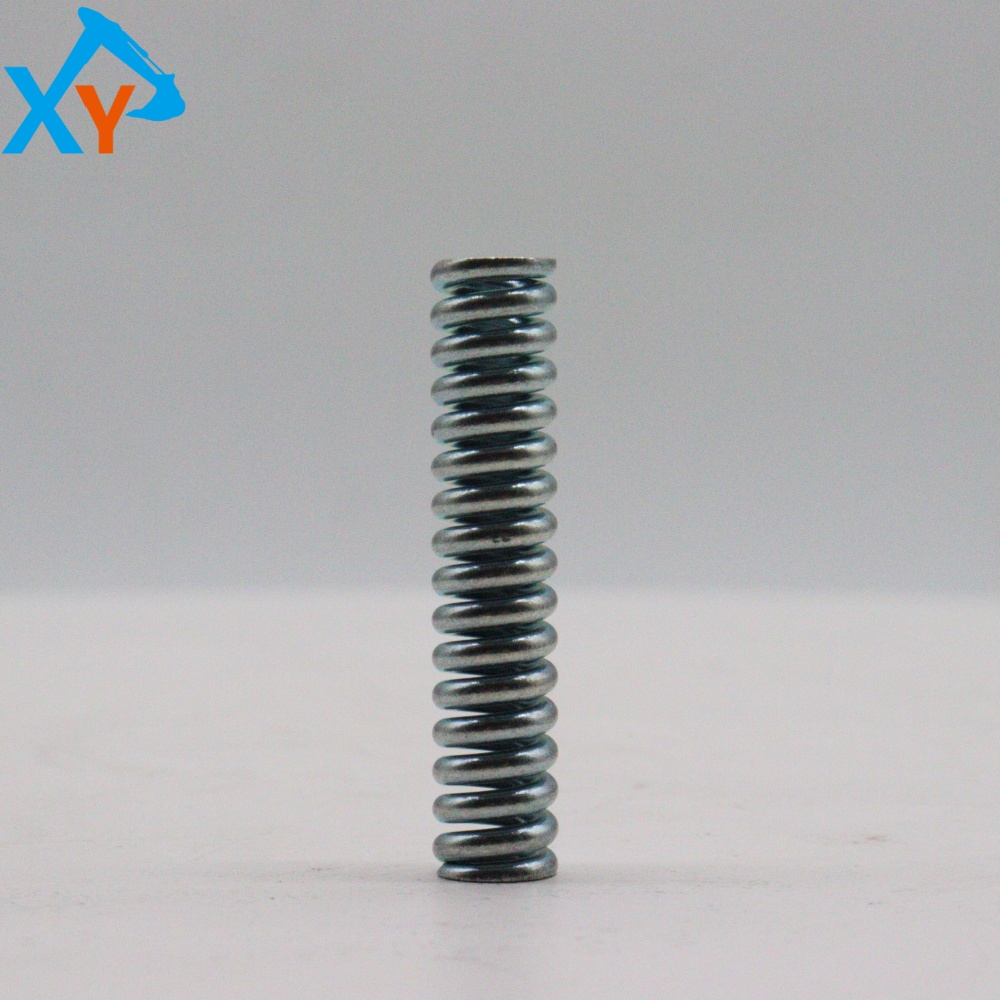

0451016 Original Excavator Hydraulic Pump Pump Liner Spring for ZX450 K5V200 EX400-3 EX400-5

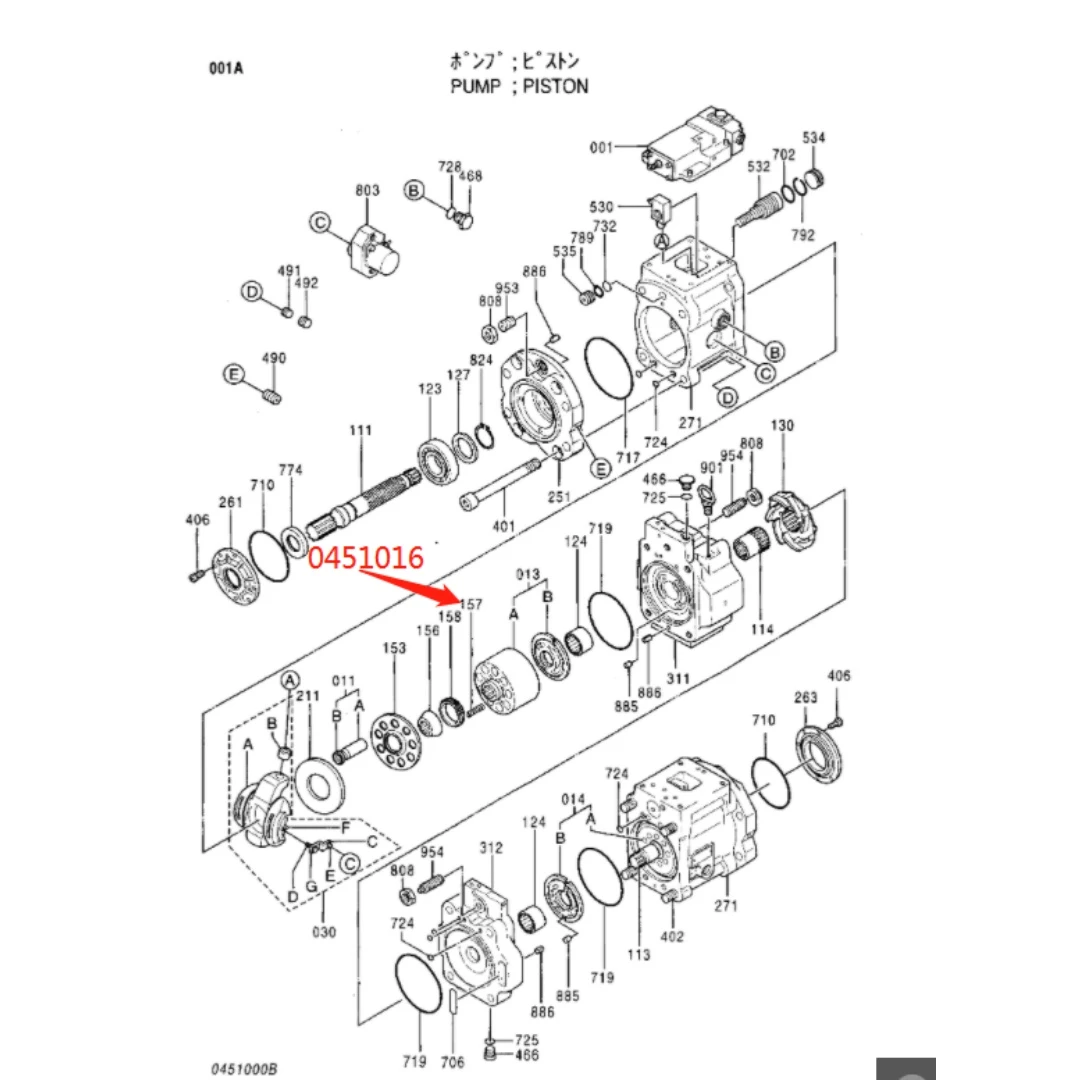

This genuine excavator hydraulic pump liner spring (Part Number: 0451016) is manufactured in strict compliance with original equipment manufacturer (OEM) technical standards, delivering precise mechanical fitment and dependable dynamic tension for heavy-duty main hydraulic pump assemblies. Specifically engineered for Kawasaki and Hitachi variable displacement axial piston pumps, it provides direct-fit compatibility for the K5V200 pump series widely installed on heavy earthmoving and mining machinery. Primary machine applications include heavy-class crawler excavators such as the Hitachi ZAXIS ZX450 as well as classic EX-generation models including the EX400-3 and EX400-5. Serving as an essential internal rotating group component, it directly replaces superseded factory service part numbers without requiring dimensional adjustments, custom machining, or shimming. With factory-calibrated outer diameter, precise wire gauge thickness, and exact free height dimensions, this cylinder block liner spring seats perfectly between the pump drive shaft, cylinder block, and retainer plate assembly, ensuring seamless integration during complete pump rebuilds and restoring original hydraulic displacement performance across demanding, high-pressure excavation cycles.

Engineered to endure continuous high-frequency compression cycles, extreme hydraulic oil pressures exceeding 35 MPa, and elevated operating temperatures, this hydraulic pump liner spring is fabricated from premium-grade silicon-chromium or vanadium alloy spring steel (such as 55CrSi / 50CrV4). The spring undergoes specialized cold-coiling, precision end-face grinding, whole-body quenching, and stress-relieving tempering processes to establish superior high-cycle fatigue resistance and prevent load relaxation over millions of operational strokes. Its surface is shot-peened and finished with an anti-friction, anti-corrosion protective treatment that prevents hydrogen embrittlement and micro-pitting in severe hydraulic environments. The spring provides calibrated, uniform axial pre-load against the cylinder block and valve plate interface, maintaining critical hydrodynamic fluid film clearance and preventing high-pressure oil bypass during rapid stroke changes. This robust metallurgical construction prevents spring sagging, eliminates uneven cylinder tilting, minimizes internal parasitic leakage, and ensures smooth, chatter-free reciprocating piston movement under continuous, heavy-load mining and bulk earthmoving operations.

To maintain optimal hydraulic efficiency and prevent catastrophic pump rotating group failure, pump liner springs should be thoroughly inspected whenever the main hydraulic pump is disassembled for overhaul, resealing, or rotary kit replacement. Over prolonged operating hours, severe hydraulic pressure pulsations and thermal stress can induce spring settling, micro-cracking, or permanent free-length loss; therefore, spring free height, squareness, and compressive tension must be measured against factory service limit specifications and replaced promptly if plastic deformation is detected. When reassembling the hydraulic pump cylinder barrel, ensure all mating components—including the spherical bushing, piston shoes, and swash plate—are thoroughly cleaned, deburred, and pre-lubricated with clean anti-wear hydraulic oil. Strictly follow OEM assembly torque sequences to prevent spring binding or eccentric loading. Adhering to scheduled hydraulic oil analysis, maintaining oil cleanliness via high-efficiency filtration (ISO 4406 standards), and replacing thermal-degraded fluid on time will prevent abrasive wear, protect spring integrity, and maximize overall hydraulic pump operational life.
