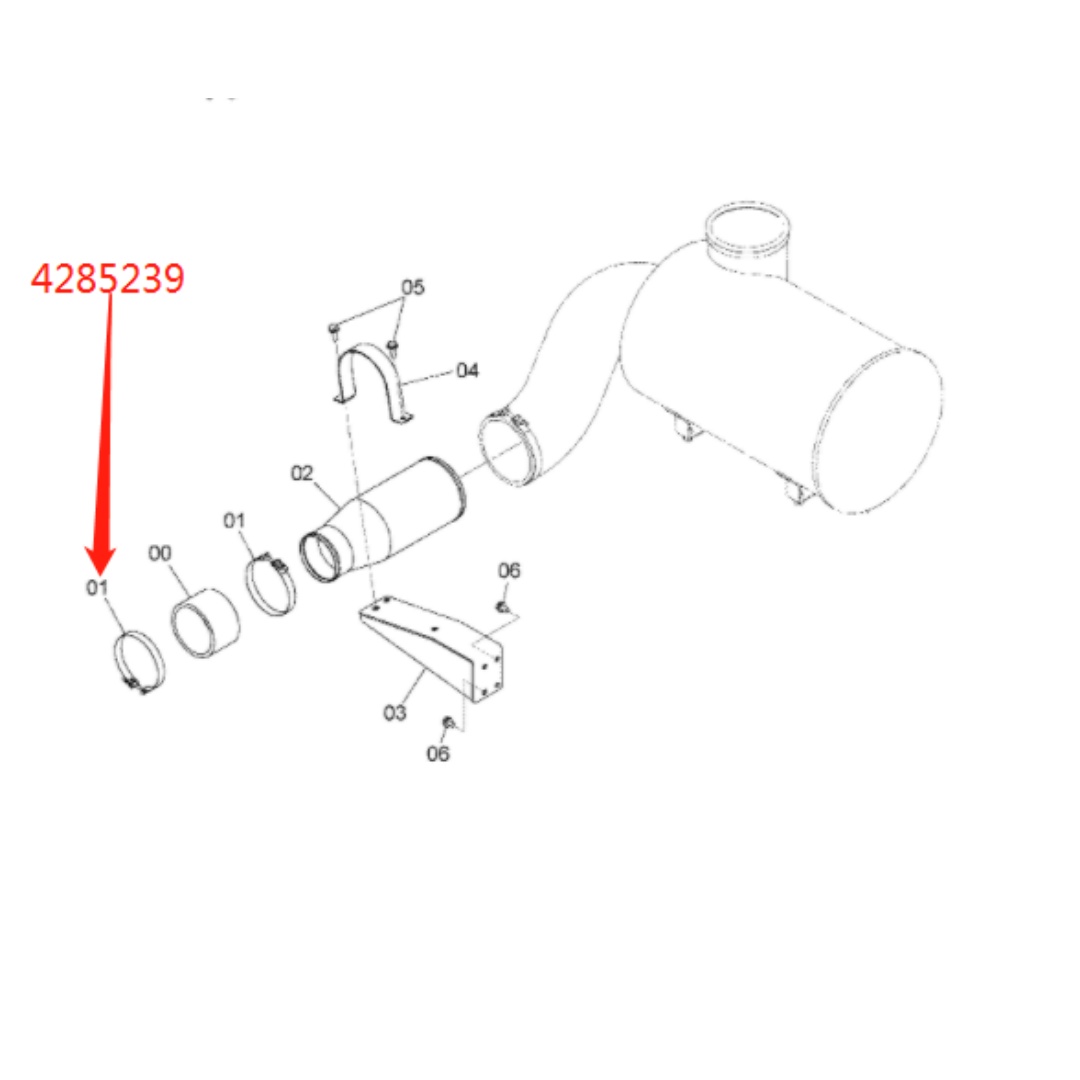

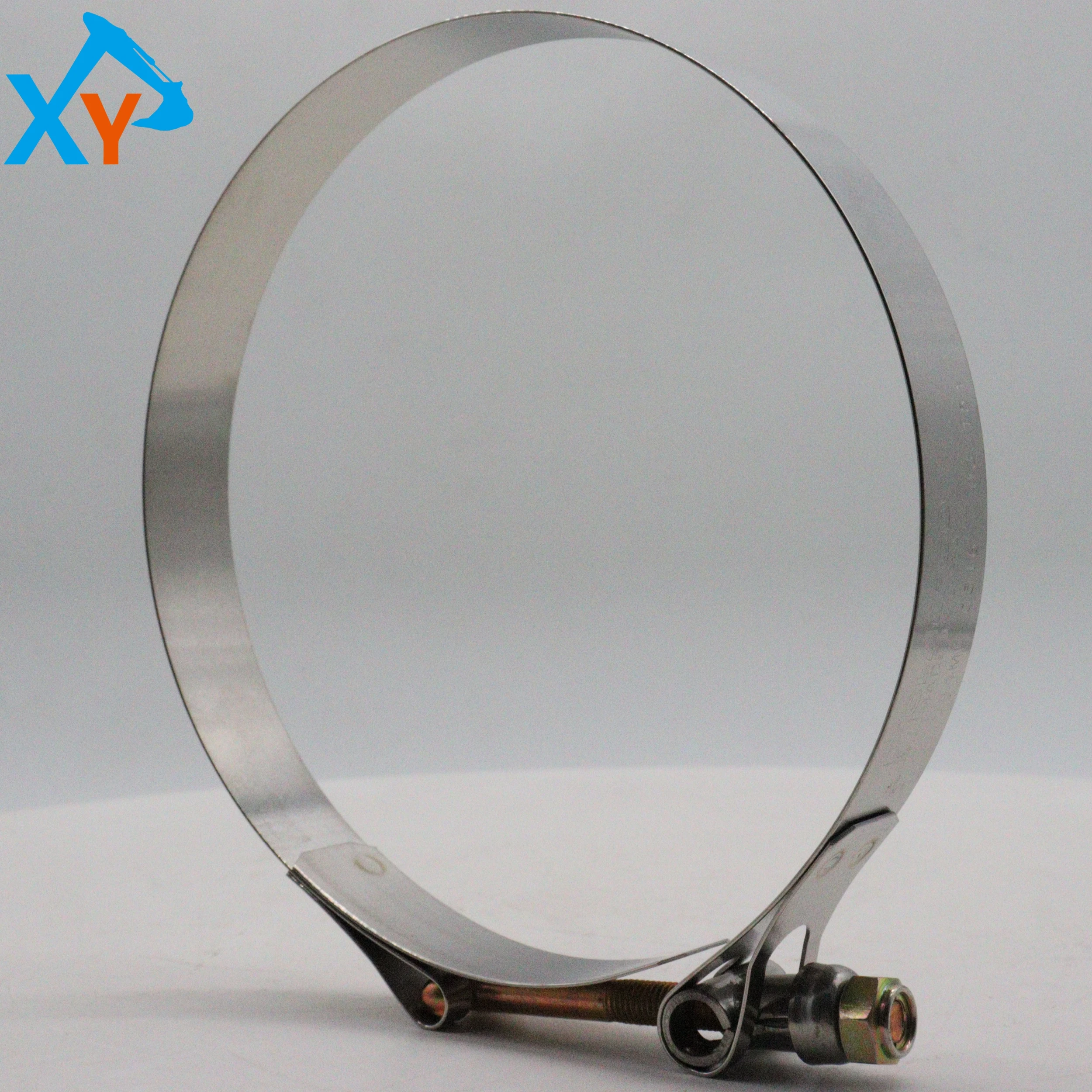

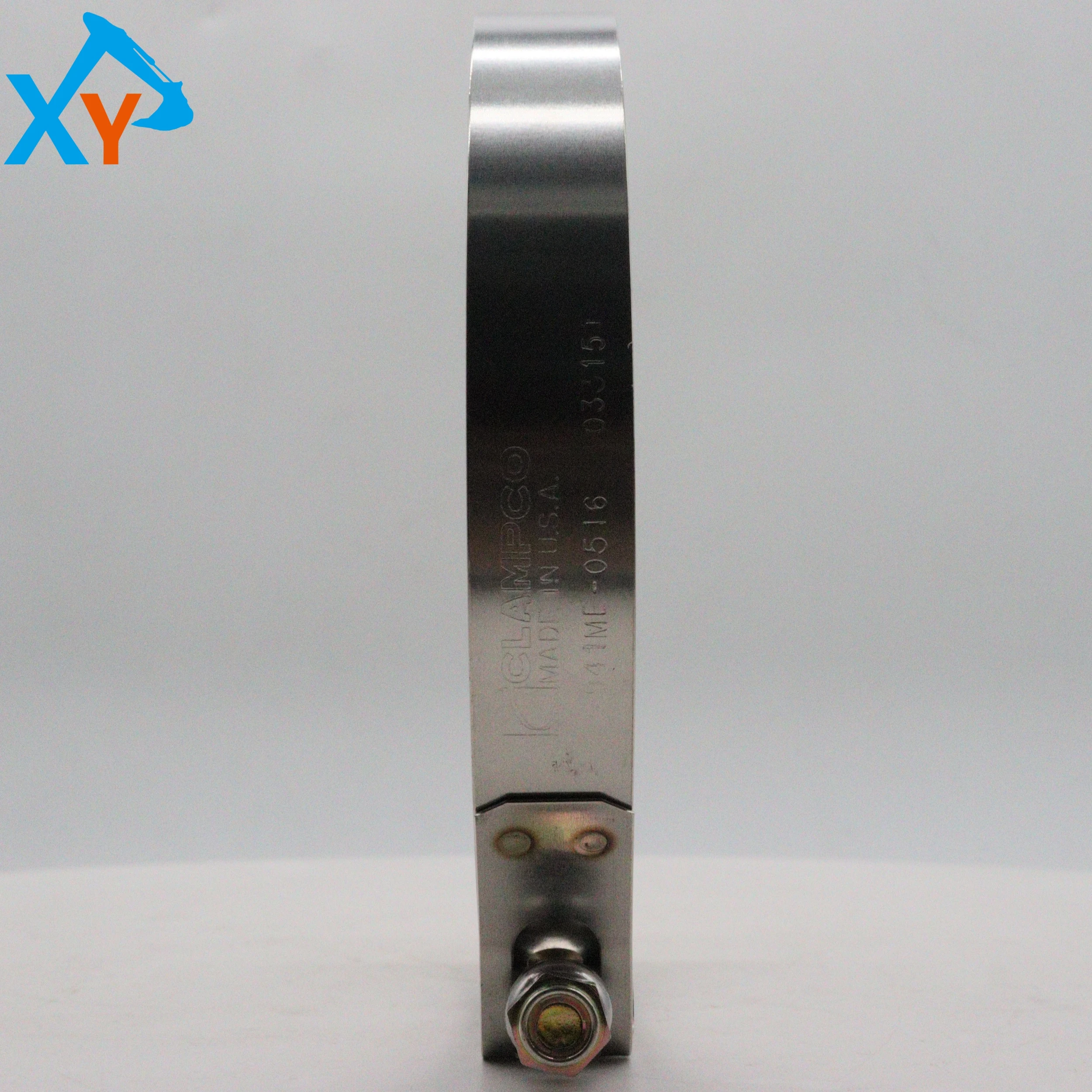

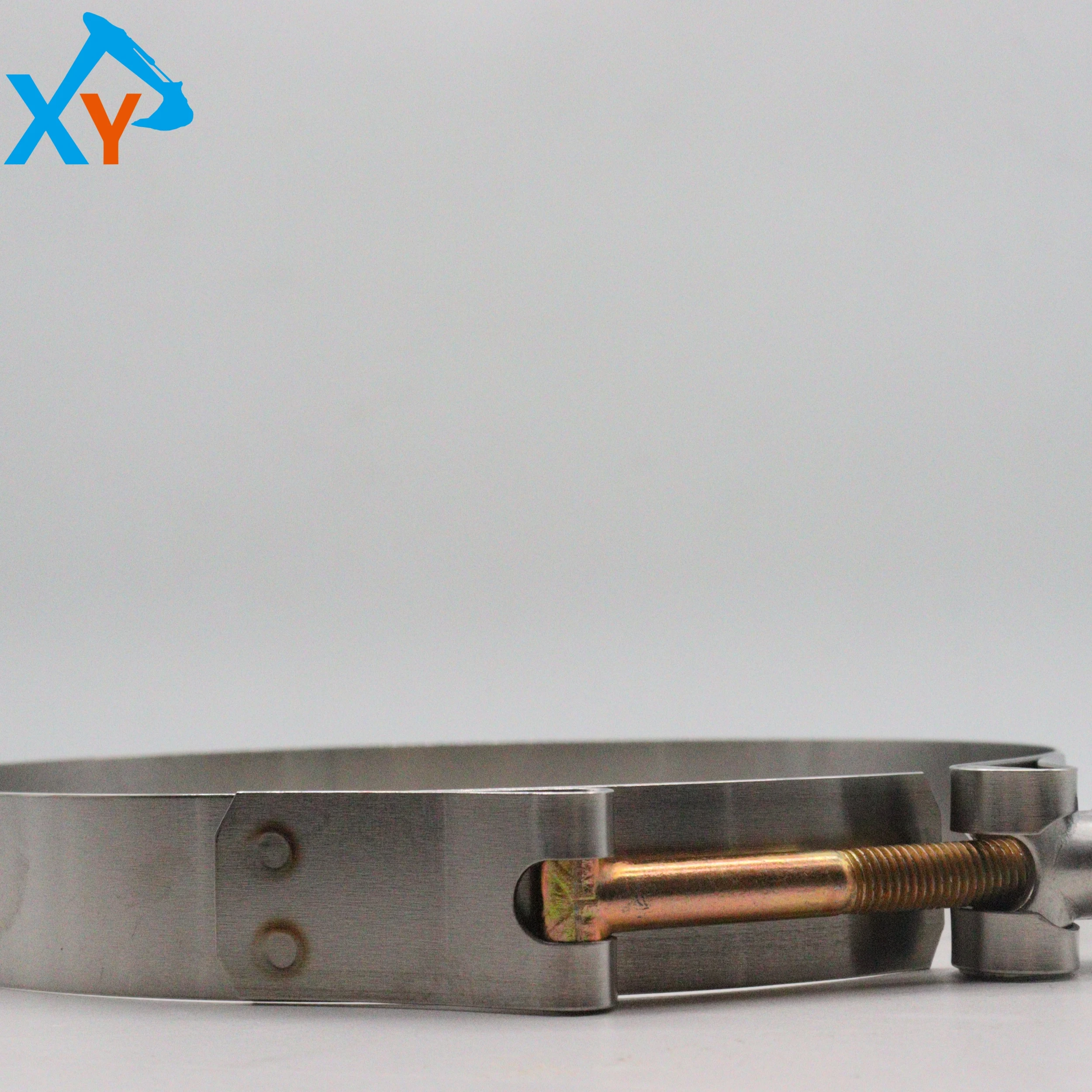

4285239 Original Excavator Clamp Hose for Hitachi ZX350-7

The original clamping hose 4285239 is a specialized hydraulic pipeline fixing component for the Hitachi ZX350-7 (approximately 35 ton class) crawler excavator, and the universal number is its part number. This model has a total working weight of approximately 34500kg and is equipped with an engine that complies with National IV emissions standards. It comes standard with the HIOS III intelligent hydraulic system. This clamping hose is usually used to secure high-pressure hydraulic hoses, pilot pipelines, or fuel pipelines to prevent friction and wear with metal components such as the frame and rotating platform during severe vibrations of the excavator. Its length, inner diameter, joint form, and clamping structure are precisely matched with the pipeline layout of ZX350-7, ensuring standardized pipeline routing and reliable fixation. This item may also be compatible with similar tonnage models such as ZX330-7 and ZX360-7, but it is recommended to refer to Hitachi's original parts catalog or maintenance manual to avoid installation misalignment or fixing failure due to dimensional deviations.

This product is made of a composite of oil resistant synthetic rubber inner layer, high-strength fiber reinforced layer (usually 2-4 layers of steel wire weaving or winding), and wear-resistant outer layer. The working pressure can reach 35-42MPa, and the burst pressure is more than 4 times the working pressure. The two ends of the hose are crimped with metal joints (such as JIC37 ° or SAE flanges), and the joint surface is often galvanized or treated with Dacromet to prevent rust. The clamping part is usually made of stainless steel or galvanized steel clamps, lined with rubber gaskets, and fixed without slip through bolt fastening. The temperature resistance range of hoses is generally from -40 ℃ to 120 ℃, and they are resistant to hydraulic oil, fuel, and common engineering machinery lubricants. As an original factory component, its dimensional tolerance, pressure resistance, and fatigue life have been verified through pulse testing and bench vibration, meeting SAE100R2 or DIN EN 856 standards. It can maintain sealing and structural integrity for a long time under heavy load conditions such as mining and earthwork in ZX350-7.

Before installation, it is necessary to clean the surface and joints of the hose, check whether the rubber gasket of the clamp is intact, and cross tighten the bolts according to the torque specified in the maintenance manual (usually 20-40N · m). Every 500 hours of daily work, the clamping hose should be checked for surface cracks, bulges, oil leakage from joints, or loose clamps, especially around bent parts and fixing points. If the outer layer of the hose is found to be worn more than 1mm, the steel wire layer is exposed, or the joint thread is damaged, the original 4285239 parts should be replaced immediately. It is strictly prohibited to use ordinary hoses or non-standard clamps as substitutes. Regularly clean the soil and oil stains on the surface of the hose to avoid contact with sharp parts. When disassembling and reassembling, it is necessary to ensure that the hose bends naturally, with a minimum bending radius of not less than 6 times the outer diameter of the hose, and must not be in a stretched or twisted state. Long term storage should be placed in a cool and dry place, avoiding direct sunlight and heavy pressure.
