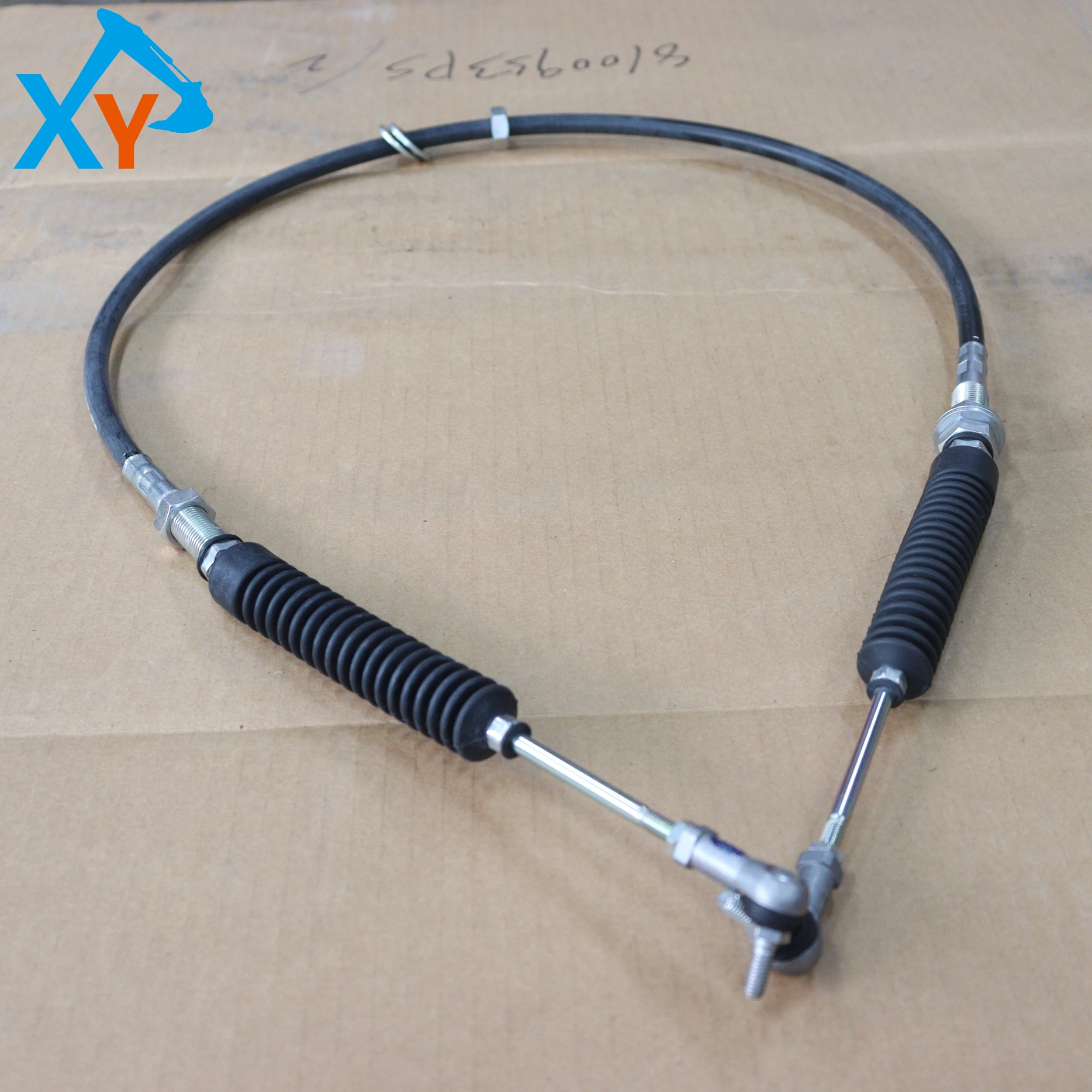

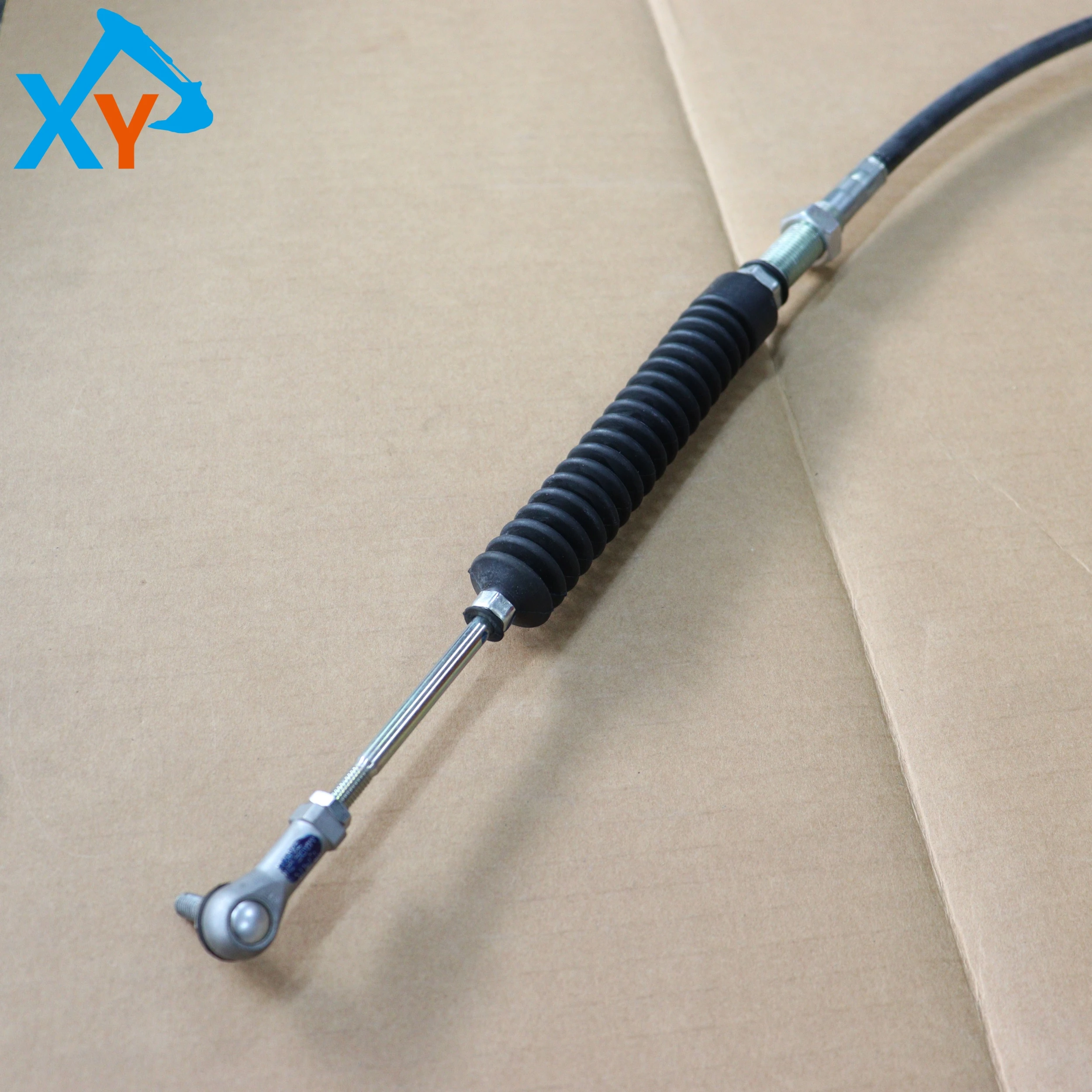

4448206 Excavator Engine Parts Control Cable for ZX800

Part number 4448206 is an original engine control cable specifically designed for the Hitachi ZX800 series (with a total working weight of approximately 90 tons) ultra large hydraulic excavator. The universal model of this cable is its part number itself, mainly used to connect engine electronic control units, various sensors, and actuators. It is a key signal path to ensure precise control, data transmission, and fault diagnosis of the engine. As the core harness of the original factory, its interface pin definition, wire sequence, shielding layer design are deeply integrated with the ZX800's vehicle electronic control system (such as CAN bus network). It is strictly prohibited to use any non original or substitute cables to avoid signal interference, communication interruption, or engine control logic errors, which may cause equipment performance abnormalities or shutdowns.

This product is a shielded control cable assembly with a spiral sheath. The outer skin is made of black oil resistant and weather resistant rubber, and the surface has a spiral corrugated structure, giving the cable excellent flexibility, resistance to torsion, and resistance to mechanical compression. The cable integrates multiple twisted pair shielded cores internally, which can effectively suppress electrical interference and ensure high-speed and stable transmission of key signals such as engine ECU, crankshaft/camshaft sensors, fuel metering units, etc. Metal joints with gold-plated or galvanized ends, equipped with locking mechanisms, ensuring a secure and reliable connection. Its working voltage is usually at the vehicle level, with a temperature resistance range of -40 ℃ to+120 ℃ and a protection level of not less than IP67. It can withstand harsh environments such as high temperature, vibration, oil pollution, and water splashing in the engine compartment.

Daily inspection: Every 250 working hours, visually inspect the cable sheath for damage, cracking, local hardening, and whether the spiral sheath is excessively soaked in oil or has abnormal friction with the frame. At the same time, check whether the metal joints at both ends are properly plugged in, whether the locking mechanism is intact, and whether the pins are corroded or bent. Installation and wiring: When replacing or repairing, it is necessary to lay along the original vehicle path and use special zip ties to properly secure it, ensuring a safe distance from high-temperature exhaust pipes and rotating components to avoid interference. When connecting, make sure to align the interface guide slot and strictly prohibit brute force insertion and removal. Fault diagnosis: If the engine experiences unreliable sensor signals, intermittent stalling, or communication related fault codes, after troubleshooting the sensor body, it is important to focus on checking the conductivity, insulation resistance, and integrity of the shielding layer of this cable.
