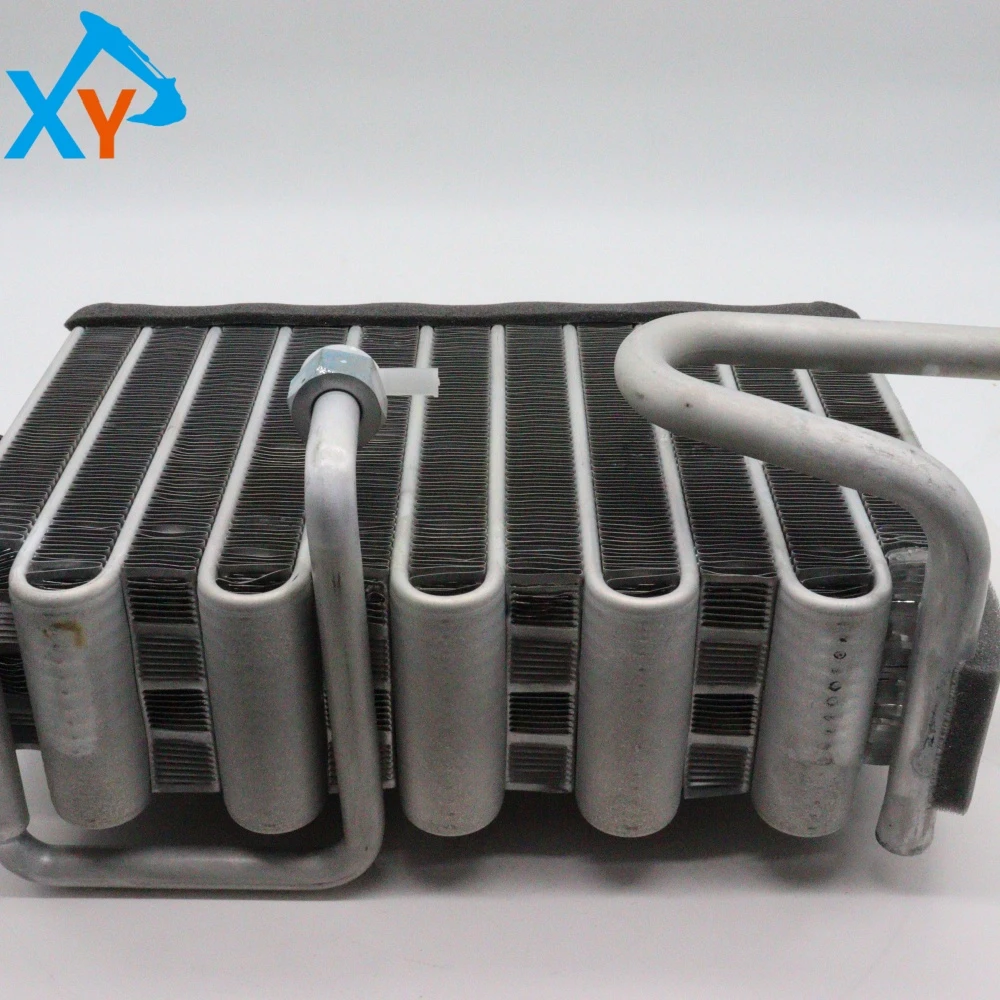

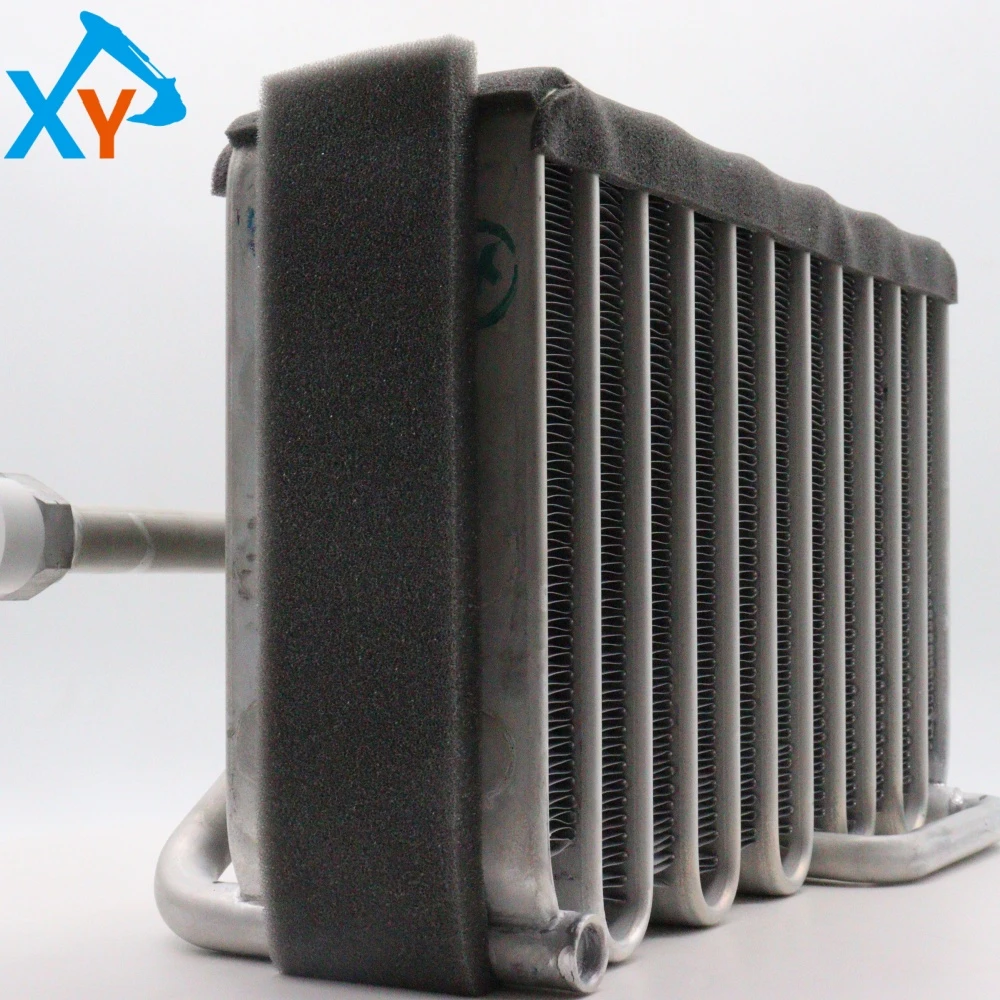

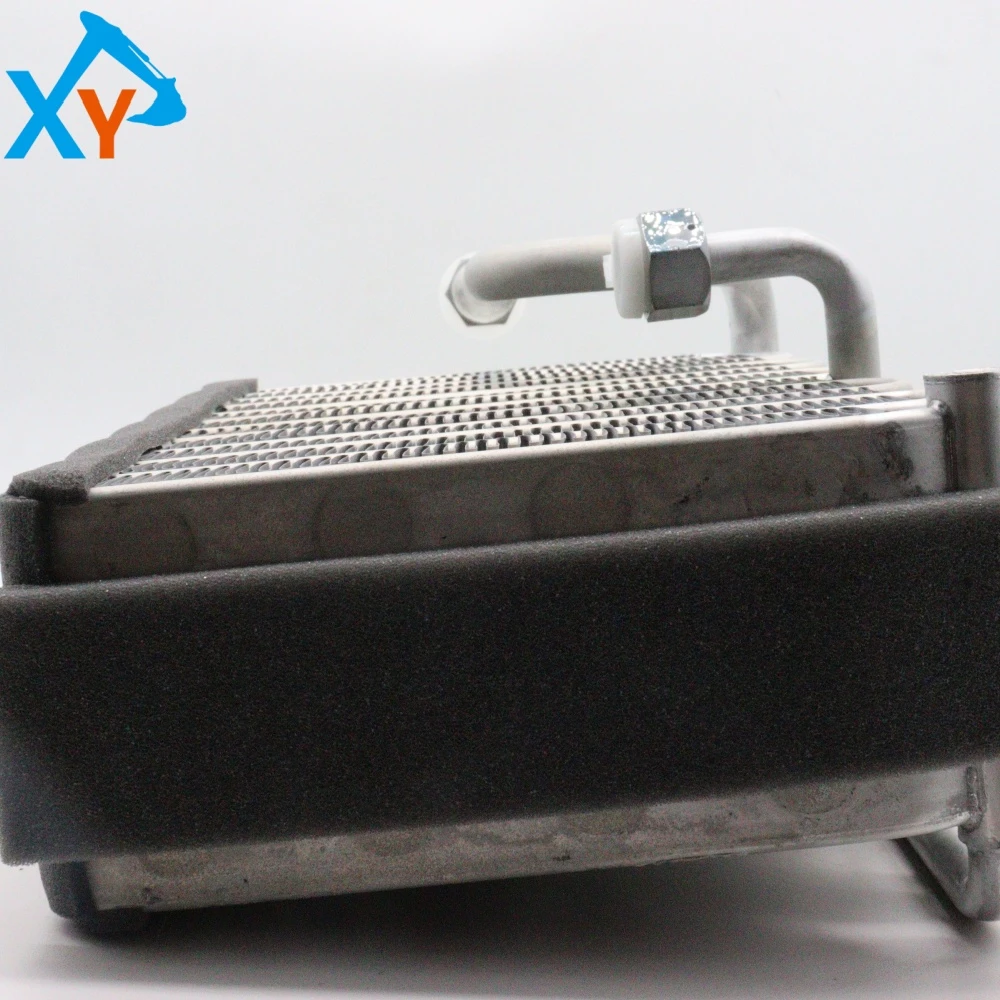

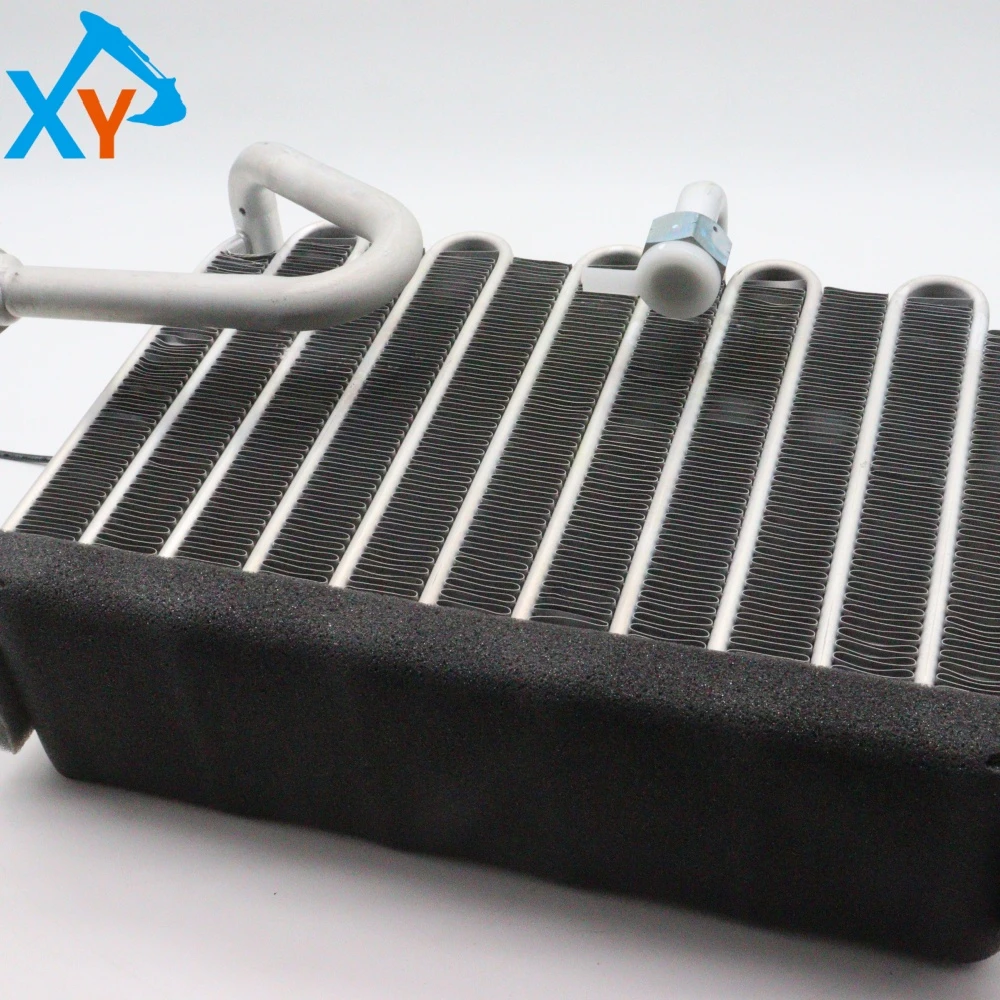

4601637 Original Excavator Heating Evaporation Box Unit for EX3600-5

The original heating evaporator unit part number 4601637 is a key thermal management component on the Hitachi EX3600-5 ultra large hydraulic excavator. It is mainly suitable for models such as EX3600-5, EX3600-5A, EX3600E-5, etc. It is usually integrated into the cabin air conditioning system or fuel/hydraulic oil preheating system, used to heat the air or oil in low temperature environments, ensuring the cold start performance of the equipment and the comfort of the cabin. This universal number is its only original factory identification. When ordering, the complete model, serial number, and system configuration information of the equipment must be provided to ensure that the interface size, electrical parameters, and vehicle thermal management system are fully matched.

This product belongs to the high-efficiency PTC (positive temperature coefficient) electric heating evaporation box, and the core adopts a combination structure of aluminum alloy finned tube heat exchanger and ceramic PTC heating element. Its rated voltage is usually 24V DC, with a heating power range of about 2-5 kW, and it can operate stably at ambient temperatures ranging from -40 ℃ to 80 ℃. Optimization of internal flow channel design to ensure even heating of air or oil; The shell is made of galvanized steel plate or corrosion-resistant engineering plastic, with a protection level of IP65 or above. This unit integrates a temperature sensor and an overheat protection module, which can be intelligently controlled by the excavator ECU to achieve rapid heating and energy efficiency management. It is suitable for fuel anti condensation, hydraulic oil preheating, or cabin warm air supply of EX3600-5 in extremely cold working conditions.

Regular inspection: Check the appearance of the heating evaporator unit for deformation, cracks, or corrosion every 500 hours of operation, and test its heating function for normal operation. Cleaning and maintenance: Use compressed air or a soft bristled brush to clean the dust and oil between the fins every 1000 hours to ensure heat exchange efficiency; Before winter arrives, check if the drainage holes are unobstructed to prevent condensation from freezing and damaging internal components. Electrical safety: Check the power cord and connectors for aging, damage, or looseness, and measure the insulation resistance (should be ≥ 10 M Ω). System detection: If the heating effect decreases, it is necessary to check the resistance value of the PTC element (normally about 10-50 Ω), the temperature sensor signal, and the working status of the control relay. Replacement timing: When the unit experiences heating failure, leakage, insulation failure, or severe blockage and deformation of fins, it must be replaced in a timely manner. It is recommended to conduct preventive performance testing every 3000-4000 working hours under perennial low temperature or high dust conditions.
