4694394 Original Excavator Evaporator for Hitachi ZX68USR-5A

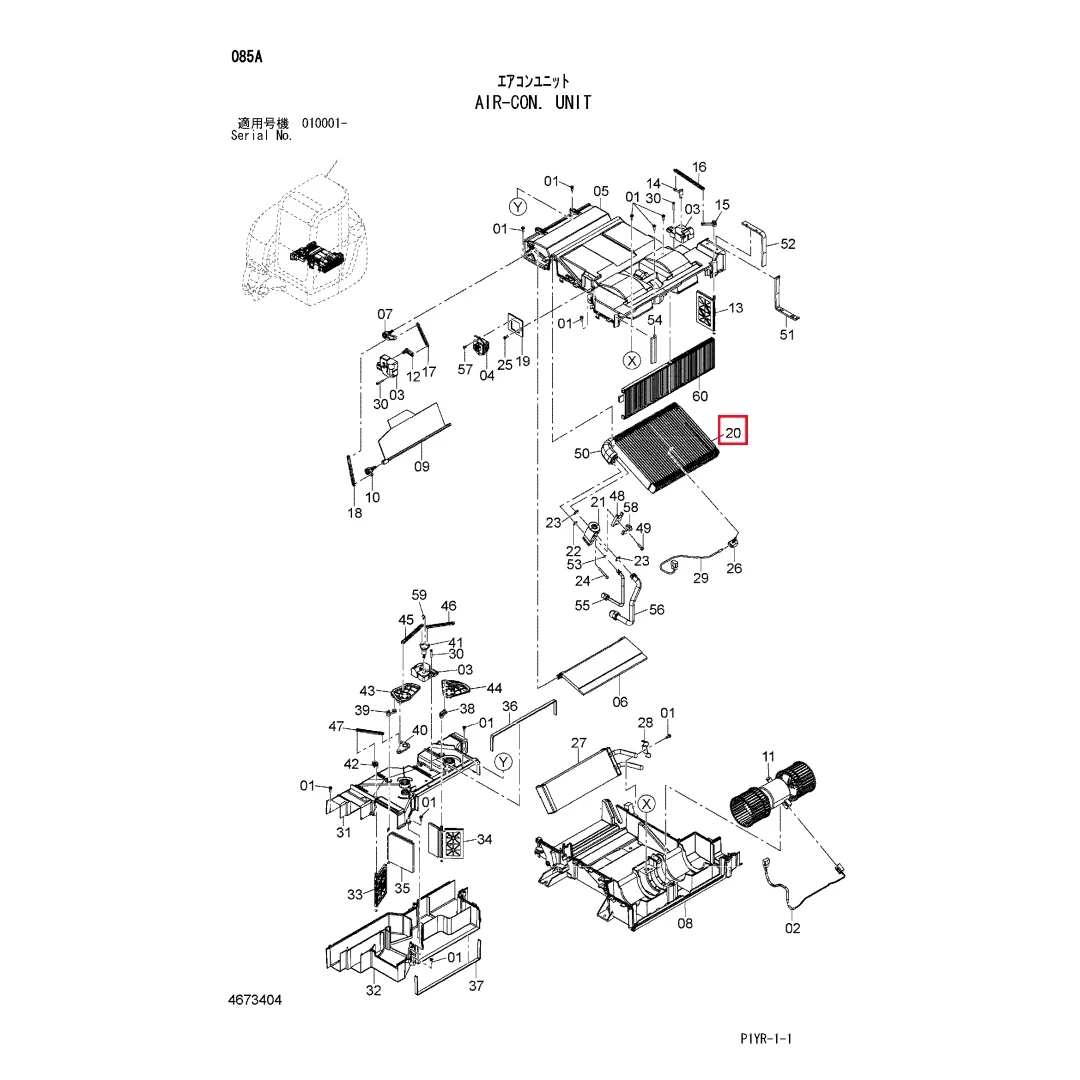

Part number 4694394 is the original air conditioning evaporator provided by Hitachi for the ZX68USR-5A ultra small hydraulic excavator. This component is the core heat exchange unit of the cabin air conditioning refrigeration cycle system. Its universal models usually cover small models such as ZX68USR-5A, ZX60, ZX70 with similar tonnage and the same cab air conditioning system platform. As a designated component of the original factory, its external dimensions and interface pipe diameter are completely matched with the air conditioning box and pipeline. It is strictly prohibited to use auxiliary parts with dimensions or interfaces that do not match, in order to avoid installation difficulties, low refrigeration efficiency, or system leaks.

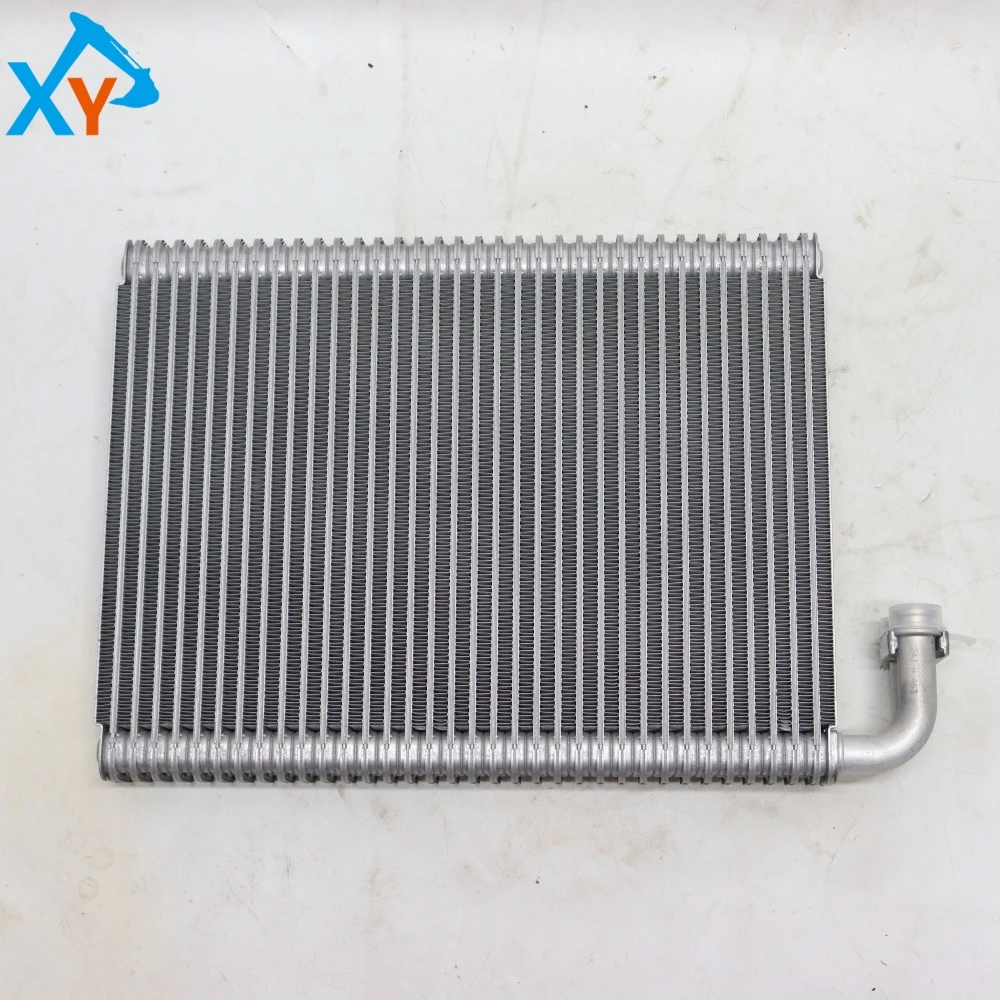

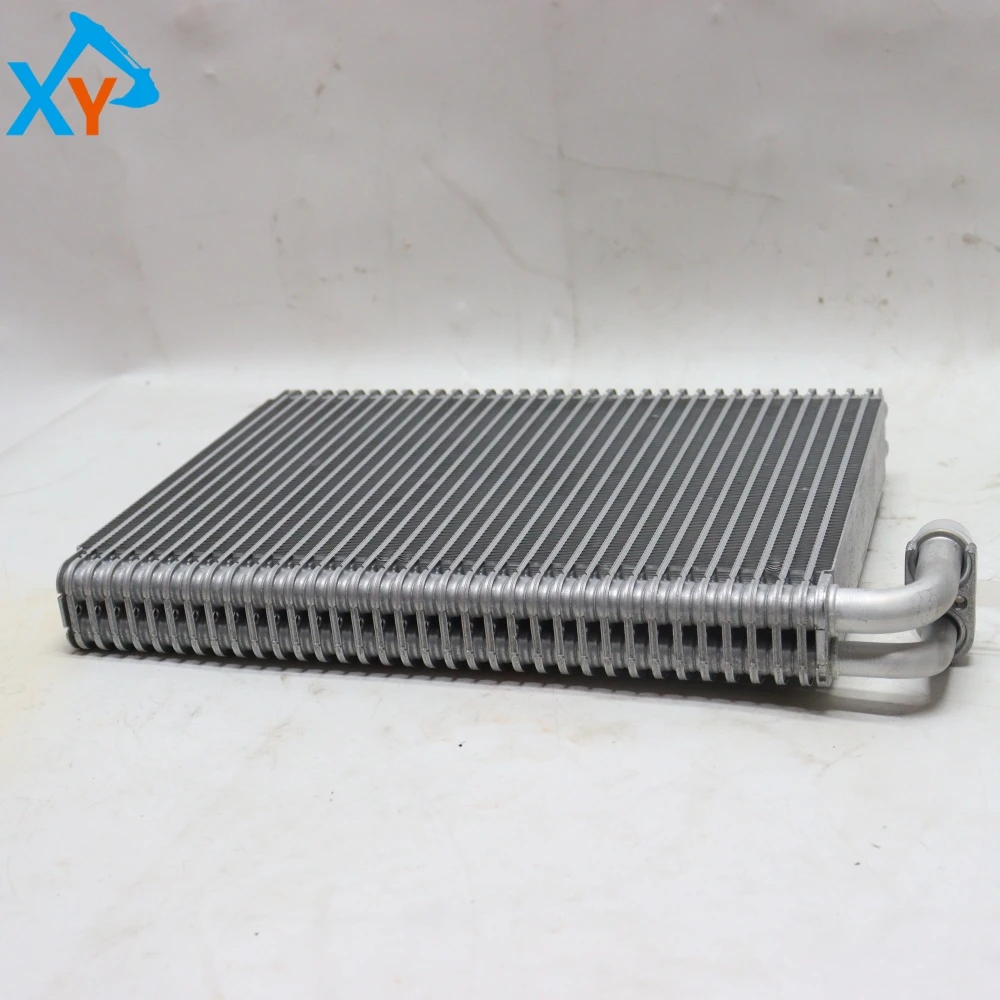

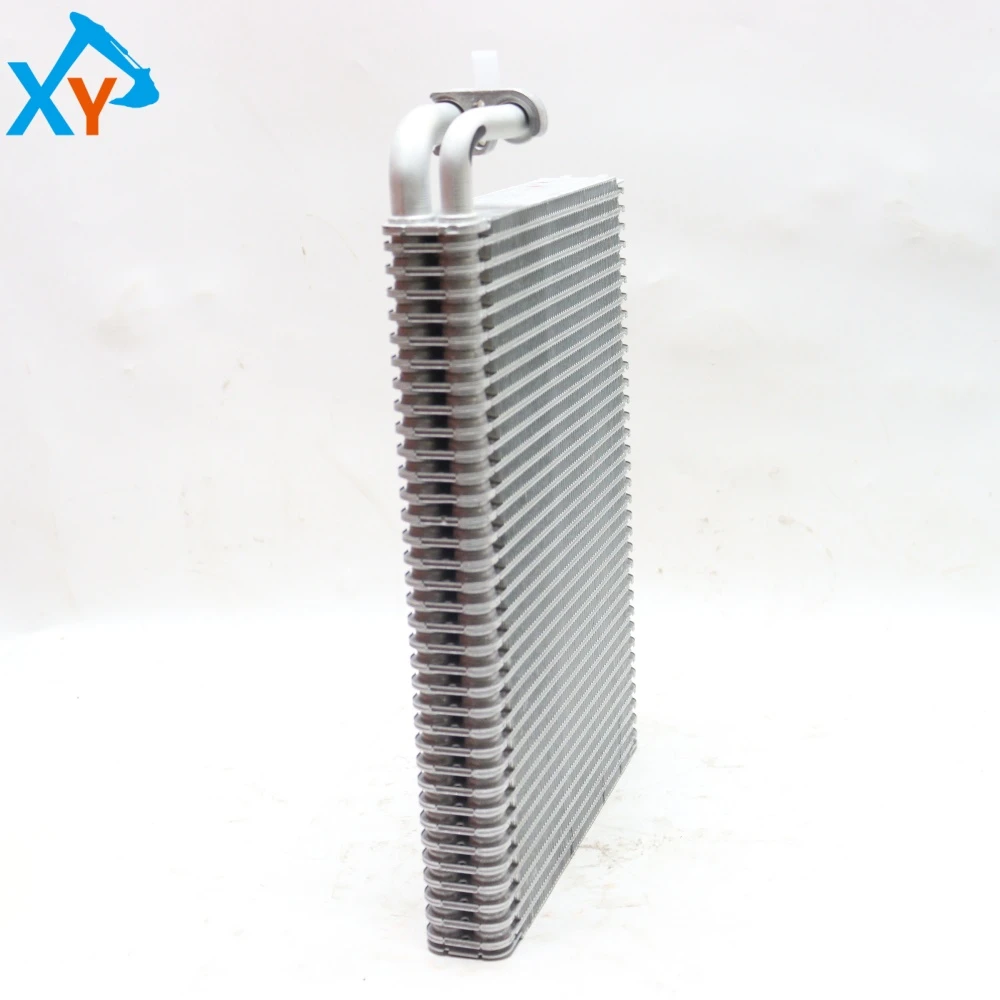

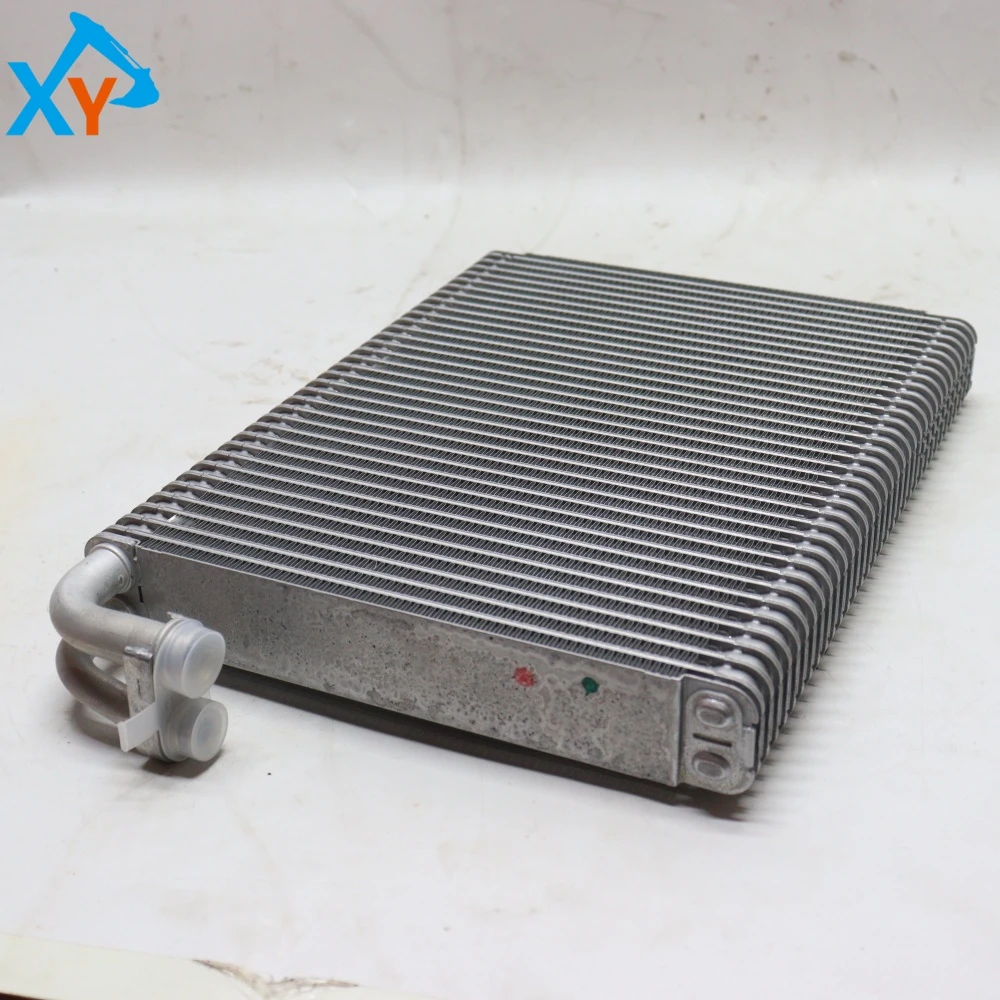

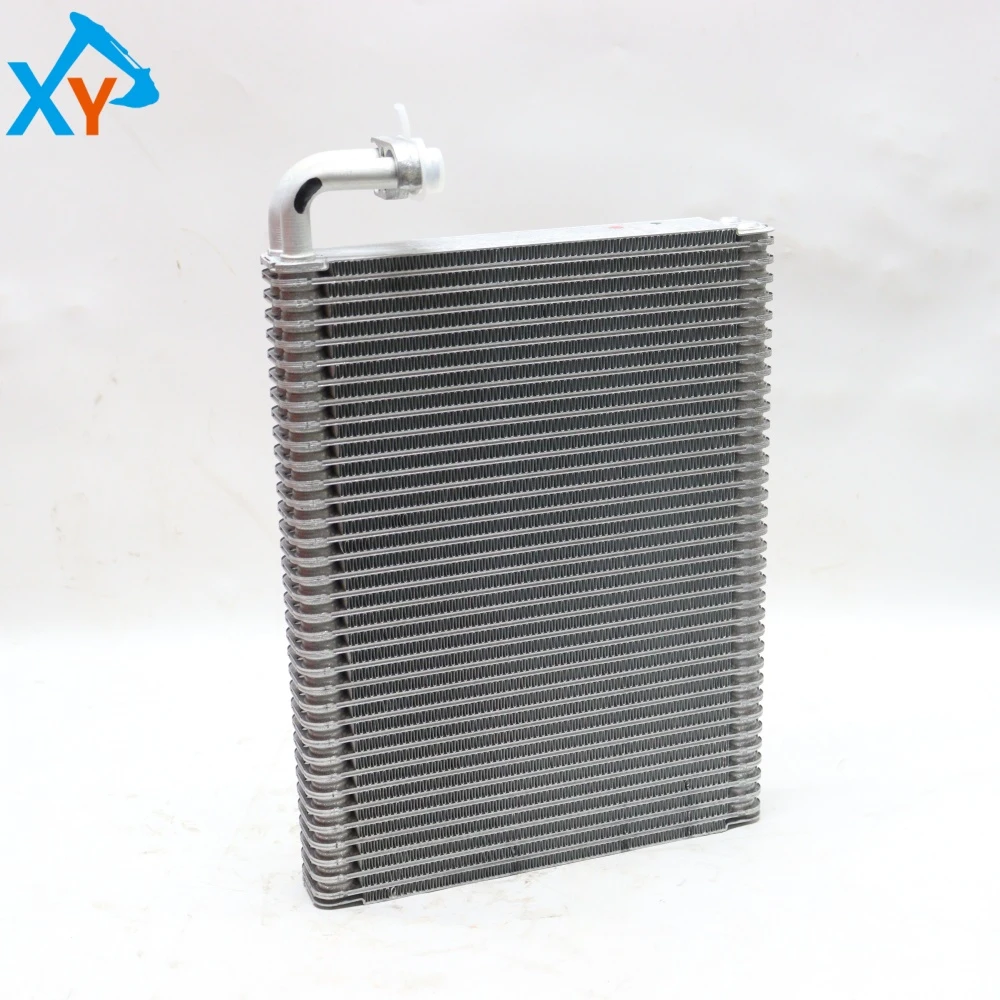

This product is a tube fin evaporator core, with rectangular aluminum heat dissipation fins arranged densely and uniformly to maximize the heat exchange surface area. Multiple flat copper pipes or internally threaded copper pipes are used internally for refrigerant flow and evaporation heat absorption. The two silver white interface pipes bent and extending from the bottom right corner are the refrigerant inlet pipe and outlet pipe, respectively. The core working principle is that high-temperature and high-pressure liquid refrigerant is throttled by an expansion valve, evaporates and absorbs heat within this component, cooling the air flowing through the fins and providing cold air to the cab. Its materials and processes ensure efficient thermal conductivity and structural strength, which are key factors affecting the cooling capacity and energy consumption of air conditioning.

Inspection and Cleaning: Check the evaporator every 500 working hours or quarterly. The main inspection is to check for severe dirt and dust on the fins, blockage of willow catkins, and oil stains at the interface welding points (oil stains are a significant sign of refrigerant leakage). When cleaning, remove the air conditioning filter element and carefully clean the surface dust along the direction of the fins with low-pressure compressed air or a soft bristled brush. It is strictly prohibited to use a high-pressure water gun for vertical flushing to avoid knocking down the fins and affecting ventilation and heat transfer efficiency.
