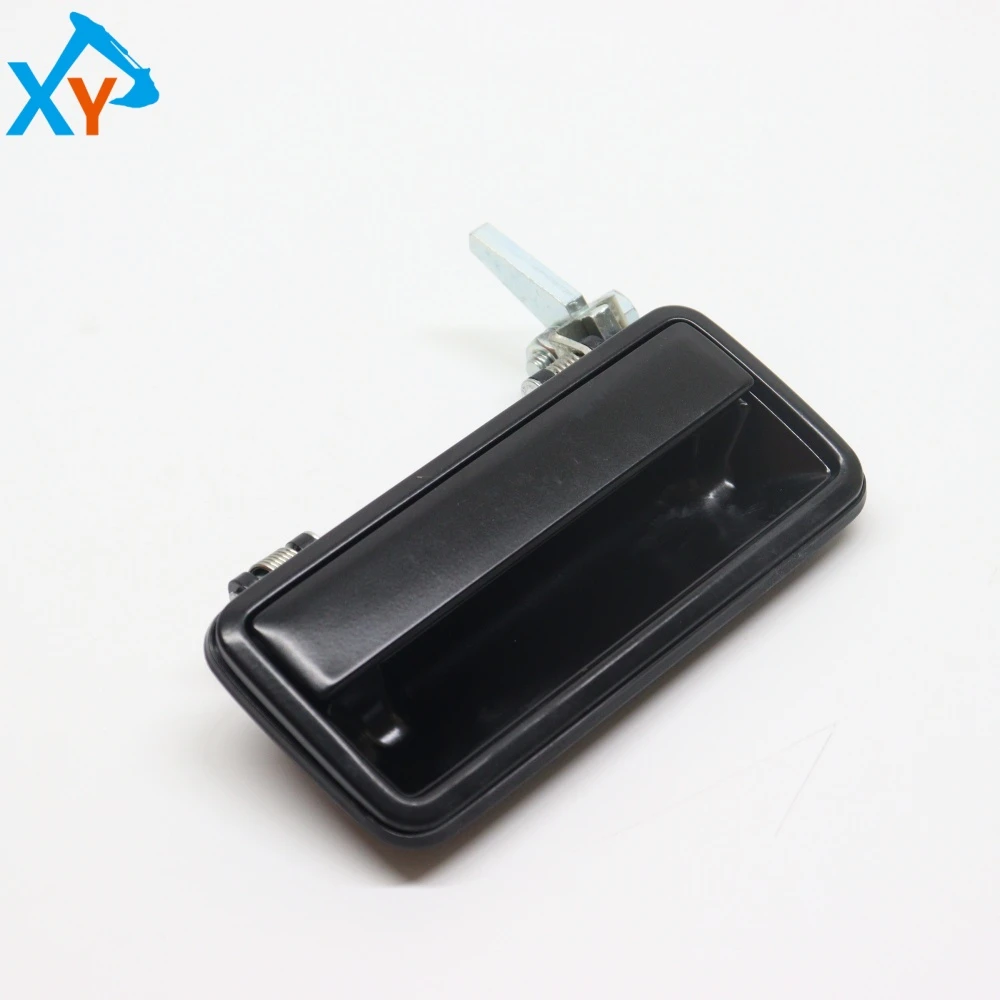

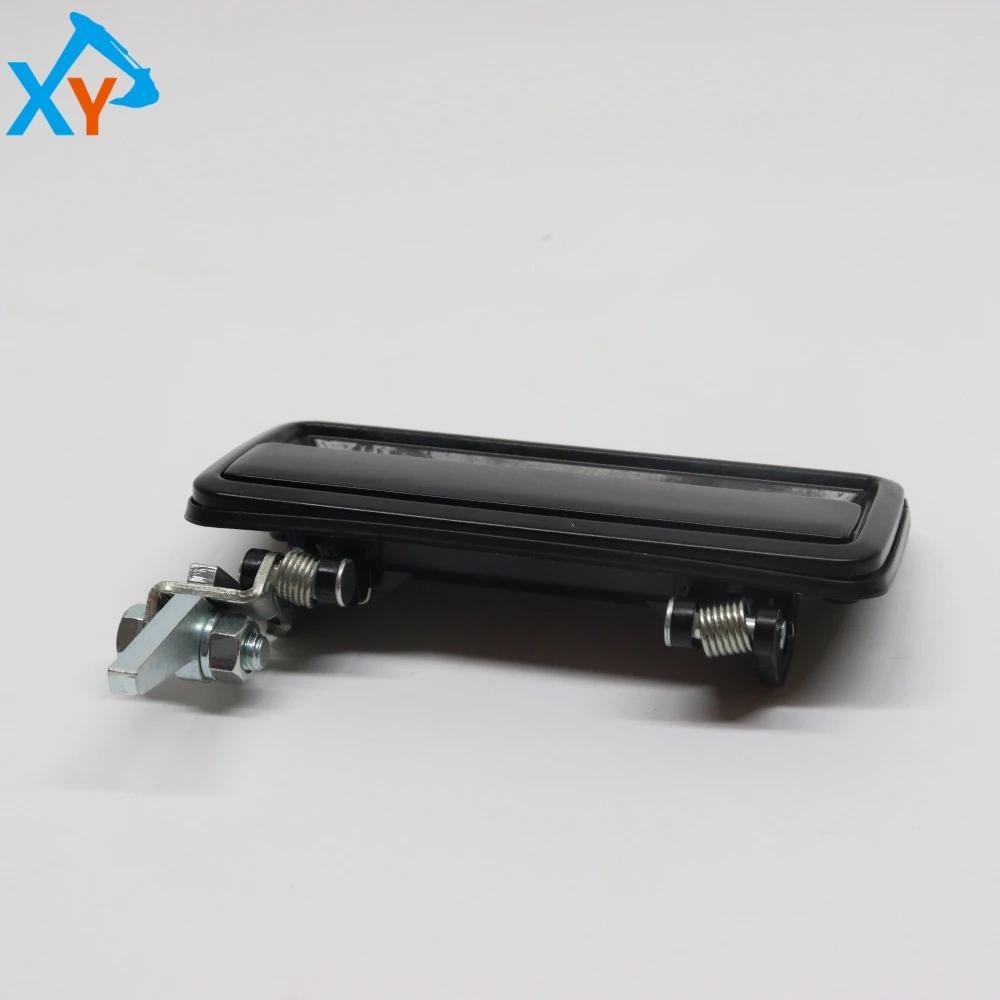

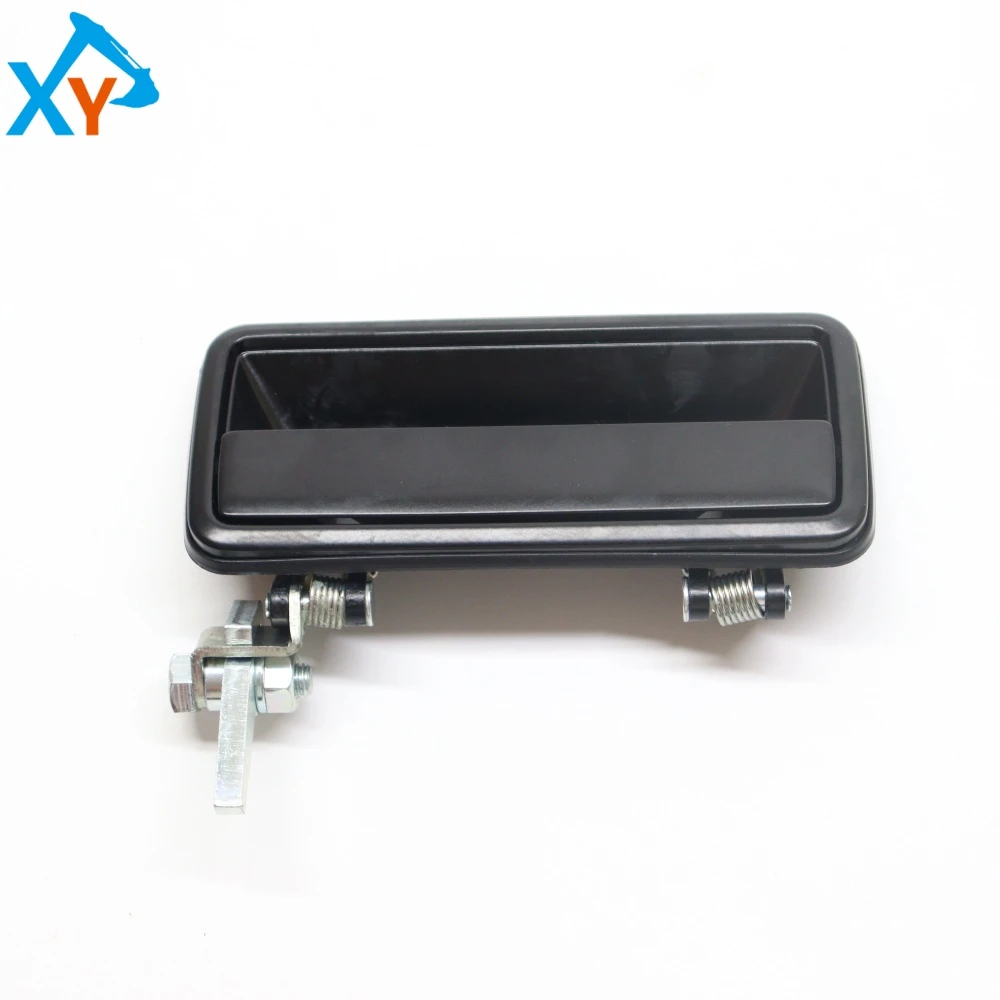

YA00038776 Excavator Door Handle for EX3600

Part number YA00038776 is the original cab or cabin door handle provided by Hitachi Construction Machinery for the EX3600 series ultra large hydraulic excavator. This component is mainly used for opening and closing positions such as the cab door and engine hood access door, and is a key operating component to ensure personnel access and equipment maintenance. Its universal models cover Hitachi EX3600-6, EX3600-7 and other EX3600 series excavators, as well as some large platform models such as EX2600 and EX5600. As a supporting component of the original sheet metal covering parts, its installation hole spacing and fixing method are completely matched with the door panel structure. It is strictly prohibited to use non-standard auxiliary parts to avoid unstable installation, sealing failure, or affecting aesthetics.

This product is a heavy-duty metal door handle, typically made of stainless steel (304) or cast steel, with a surface treated with rust prevention (galvanized or sprayed). Structural features: The handle body is an arc-shaped grip, with an integrated rotating shaft and reset spring inside. The installation base is reinforced with ribs, and the fixed hole spacing is usually 128-150mm (suitable for thick door panels). The main installation method is bolt fixation (usually using M8-M10 stainless steel bolts), and some models come with sealing gaskets to achieve dust and water resistance. Its handle diameter is about 30-40mm, with anti slip texture or frosted treatment on the surface, moderate operating force, impact resistance and vibration resistance, suitable for outdoor environments ranging from -30 ℃ to+80 ℃.

Inspection cycle: Check every 500 working hours or once a month. Cleaning and maintenance: 1 Wipe the surface dust and oil stains with a damp cloth (avoid using corrosive cleaning agents); 2. Check if the fixing bolts are loose (torque 15-25N · m); 3. Drip a small amount of lubricating oil (such as WD-40) onto the shaft; 4. Check if the handle opens and closes smoothly (without any jamming or abnormal noise). Replacement timing: Replace when there is fracture, severe deformation, shaft failure, or when the seal is affected. Disassembly steps: 1 Prepare a suitable wrench; 2. Remove the inner fixing bolts; 3. Remove the old handle (pay attention to the position of the gasket). Installation steps: 1 Clean the installation surface; 2. Place the new handle (aligning with the hole position); 3. Install a gasket; 4. Tighten the bolts from the inside (tighten them evenly in diagonal order). Attention: 1 It is strictly prohibited to use brute force to pull the handle (to avoid deformation); 2. Regularly check whether the door frame sealing strip is intact (to ensure that the door is sealed)
