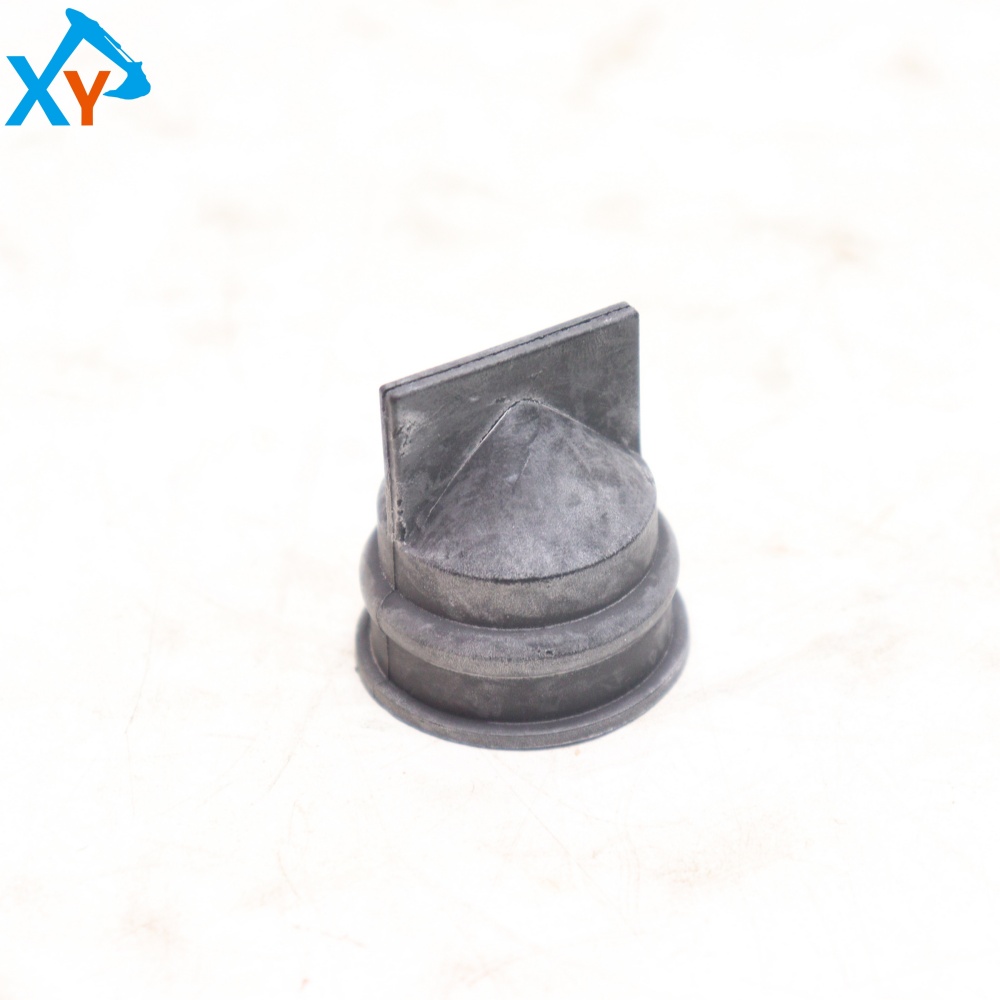

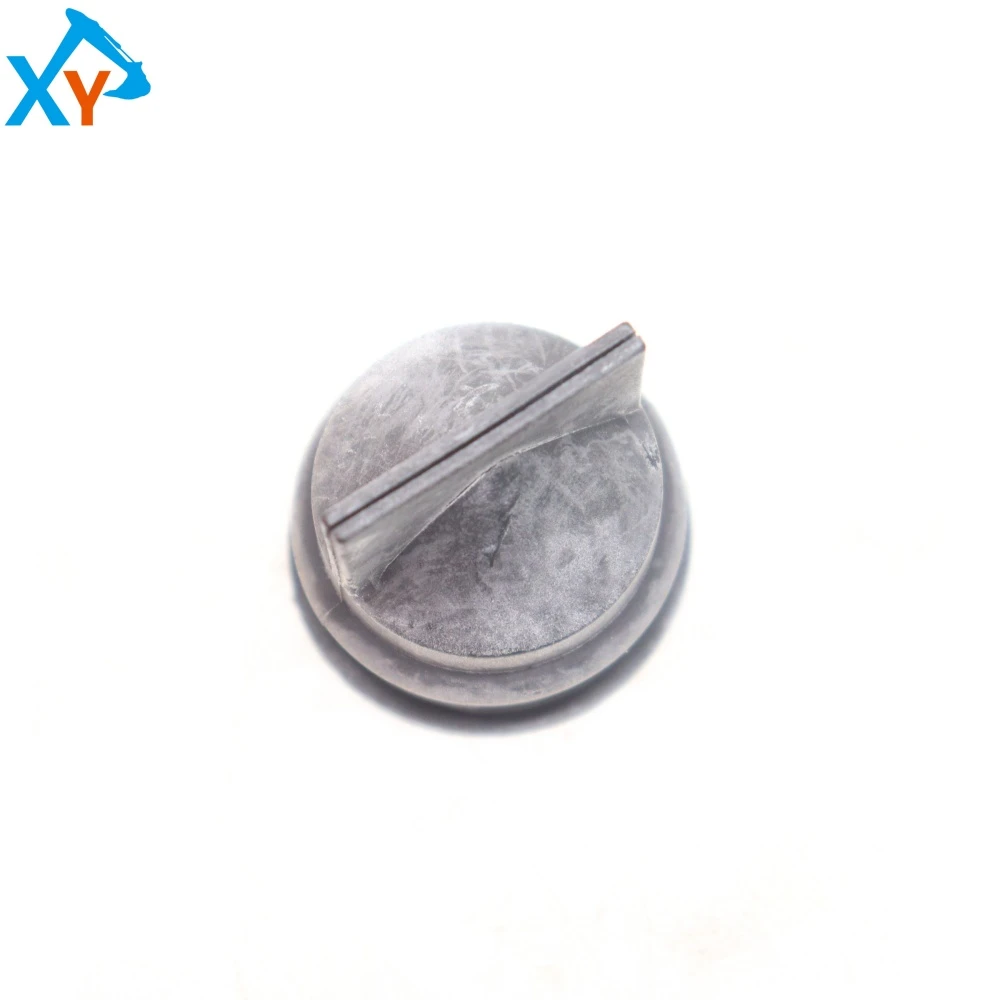

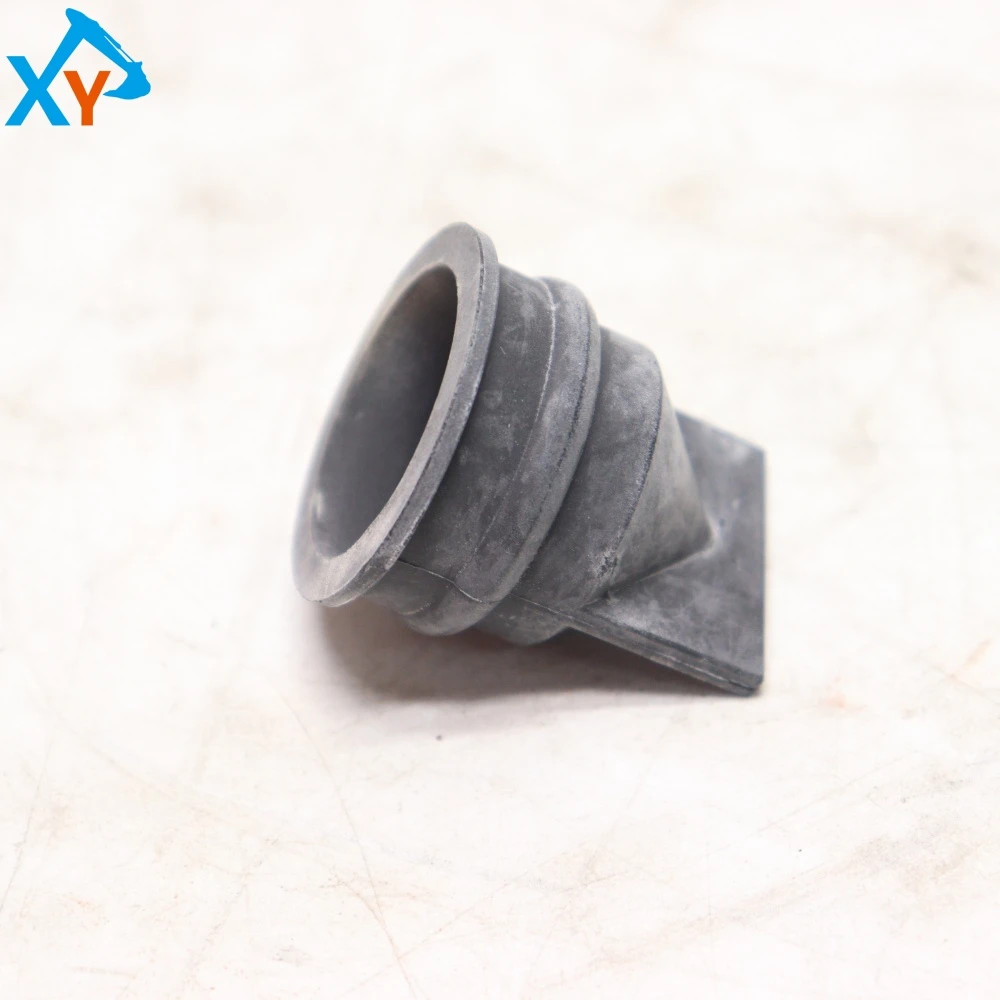

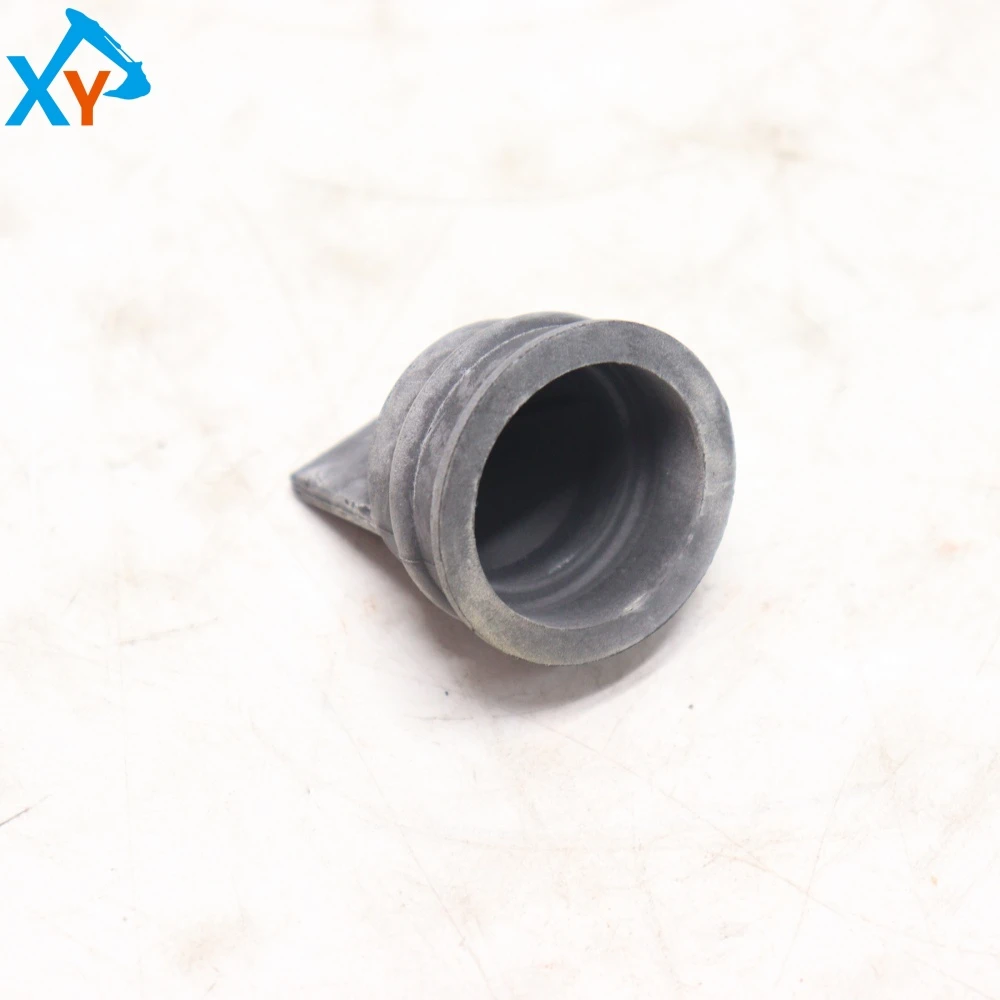

YD00005816 Original engine air cleaner parts valve for ZX70-5A excavator

The air filter valve (part number YD00005816) is a critical safety component of the intake system for the Hitachi ZX70-5A excavator. It is directly compatible with the ZX70-5A model and highly compatible with excavators of the ZX70-5G equivalent series. As a genuine original accessory, this valve is usually used in conjunction with the air filter assembly or replaced separately. It is a standard replacement part in the maintenance market to ensure engine intake safety.

This valve belongs to the intake safety valve (also known as bypass valve or emergency valve), and its core function is to automatically open and provide an emergency intake passage when the air filter element is severely clogged due to dust accumulation and the intake resistance is abnormally high, preventing the engine from stalling or experiencing a serious decrease in power due to insufficient intake. It is usually made of oil resistant and aging resistant engineering plastics or aluminum alloys, with precision springs and valve plates inside. The working principle is based on pressure difference control: when the pressure difference before and after the filter element exceeds the set value (usually about 2.5-3.0 kPa), the spring is compressed, the valve plate opens, and unfiltered air directly enters the engine (this is an emergency state, and the filter element should be cleaned or replaced as soon as possible). The production process includes precision injection molding/die casting, spring calibration, and air tightness testing to ensure accurate opening pressure, reliable sealing, and sensitive response.

Key points for post maintenance and upkeep: 1 Regular inspection: Every 250 working hours or every time the air filter element is replaced/cleaned, check the appearance of the valve for cracks or deformation, manually press the valve plate to confirm that it is flexible and not stuck. 2. Cleaning and maintenance: After disassembling the valve, wipe the contact surface between the valve seat and the valve plate with a clean soft cloth to remove dust and oil stains. It is strictly prohibited to use corrosive solvents such as gasoline for cleaning. 3. Functional testing: Simple testing method: After installing a clean filter element and starting the engine, briefly block the air inlet of the filter with your hand, and you should be able to hear the "hissing" sound of the valve opening.
